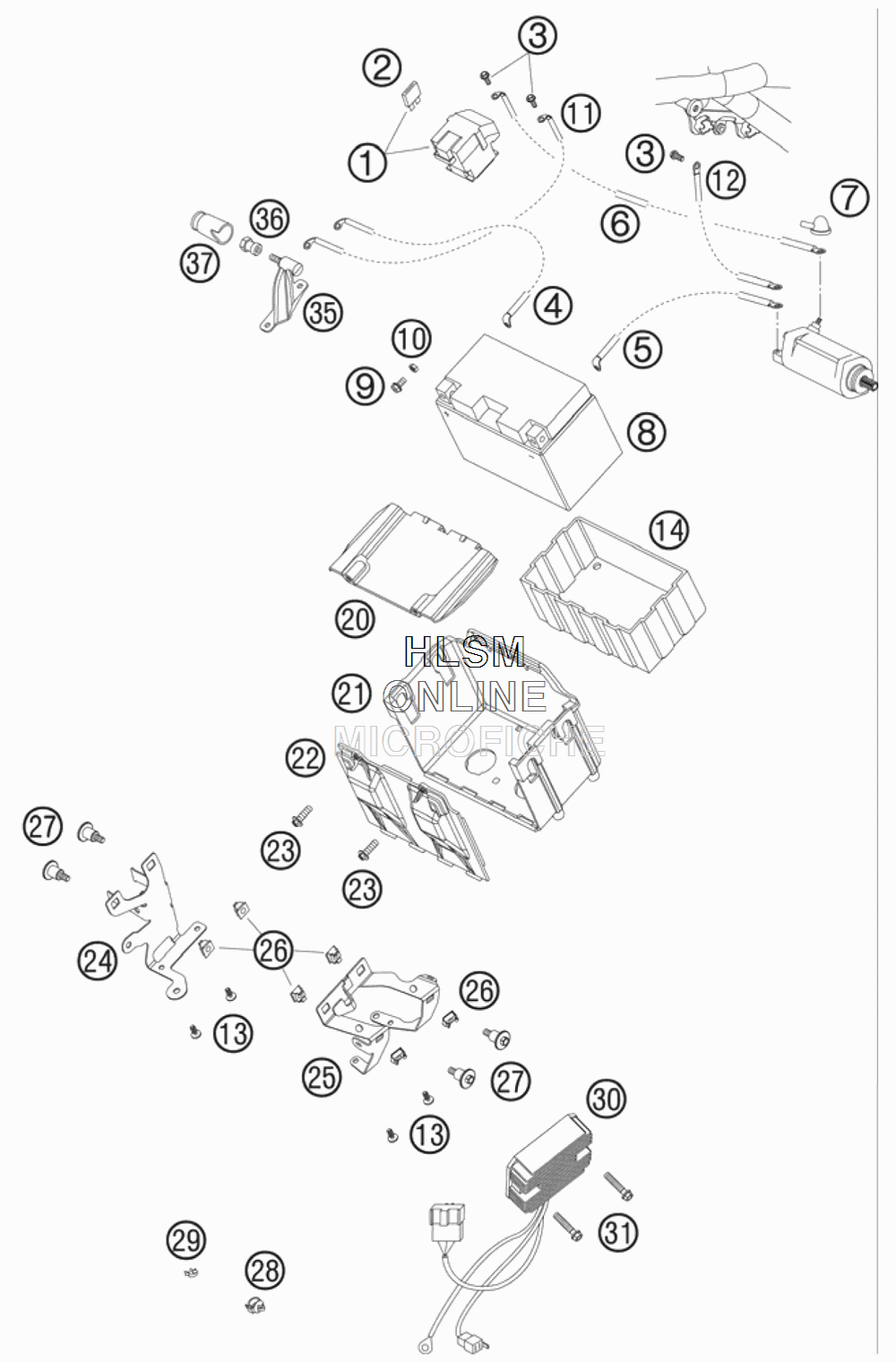

BATTERY BOX для Ktm 990 Adventure Euro - 2006 года выпуска
-
№АртикулНазвание
-
160011058000 STARTER RELAYSTARTER RELAY
-
258011109030 FUSE 30 AFUSE 30 A
-
30015060103 HH COLLAR SCREW M 6X10HH COLLAR SCREW M 6X10
-
460011059050 BATTERY CABLE L=350MMBATTERY CABLE L=350MM
-
560011097000 GROUND CABLE L=470MMGROUND CABLE L=470MM
-
660011059000 STARTERCABLE L=475MMSTARTERCABLE L=475MM
-
760040009000 RUBBER CAP STARTER PORTRUBBER CAP STARTER PORT
-
860011053000 BATTERY 12V/11AHBATTERY 12V/11AH
-
90014060103 HH COLLAR SCREW M 6X10HH COLLAR SCREW M 6X10
-
100934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
11*60111059000 BATTERY CABLE 250MMBATTERY CABLE 250MM
-
12*60111097000 GROUND CABLE 100MMGROUND CABLE 100MM
-
130016050121 SCREW FOR PLASTIC 50X12SCREW FOR PLASTIC 50X12
-
1458411053050 BATTERY COVERBATTERY COVER
-
2060011054007 BATTERY BOX TOP PARTBATTERY BOX TOP PART
-
2160011054000 BATTERY BOXBATTERY BOX
-
2260011054006 BATTERY BOX FRONT PARTBATTERY BOX FRONT PART
-
230017060203 EJOT PT SCREW K60X20EJOT PT SCREW K60X20
-
24*60111056000 BRACKET STARTER RELAYBRACKET STARTER RELAY
-
2560011055000 BRACKET VOLTAGE REGULATORBRACKET VOLTAGE REGULATOR
-
2660011038000 CAGE NUT M6 SL K100-1 1,5MMCAGE NUT M6 SL K100-1 1,5MM
-
2760038083000 SCREW OIL TANK FIXINGSCREW OIL TANK FIXING
-
2858111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
2957013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
3060011034000 VOLTAGE REGULATOR LC8VOLTAGE REGULATOR LC8
-
310015060303 HH COLLAR SCREW M 6X30HH COLLAR SCREW M 6X30
-
35*60111048000 POSITIVE POL EXTENSIONPOSITIVE POL EXTENSION
-
36*60111048020 HEXAGON NUT M6 SW=13 L=20HEXAGON NUT M6 SW=13 L=20
-
37*60111048035 COVER CAP OUTERCOVER CAP OUTER
