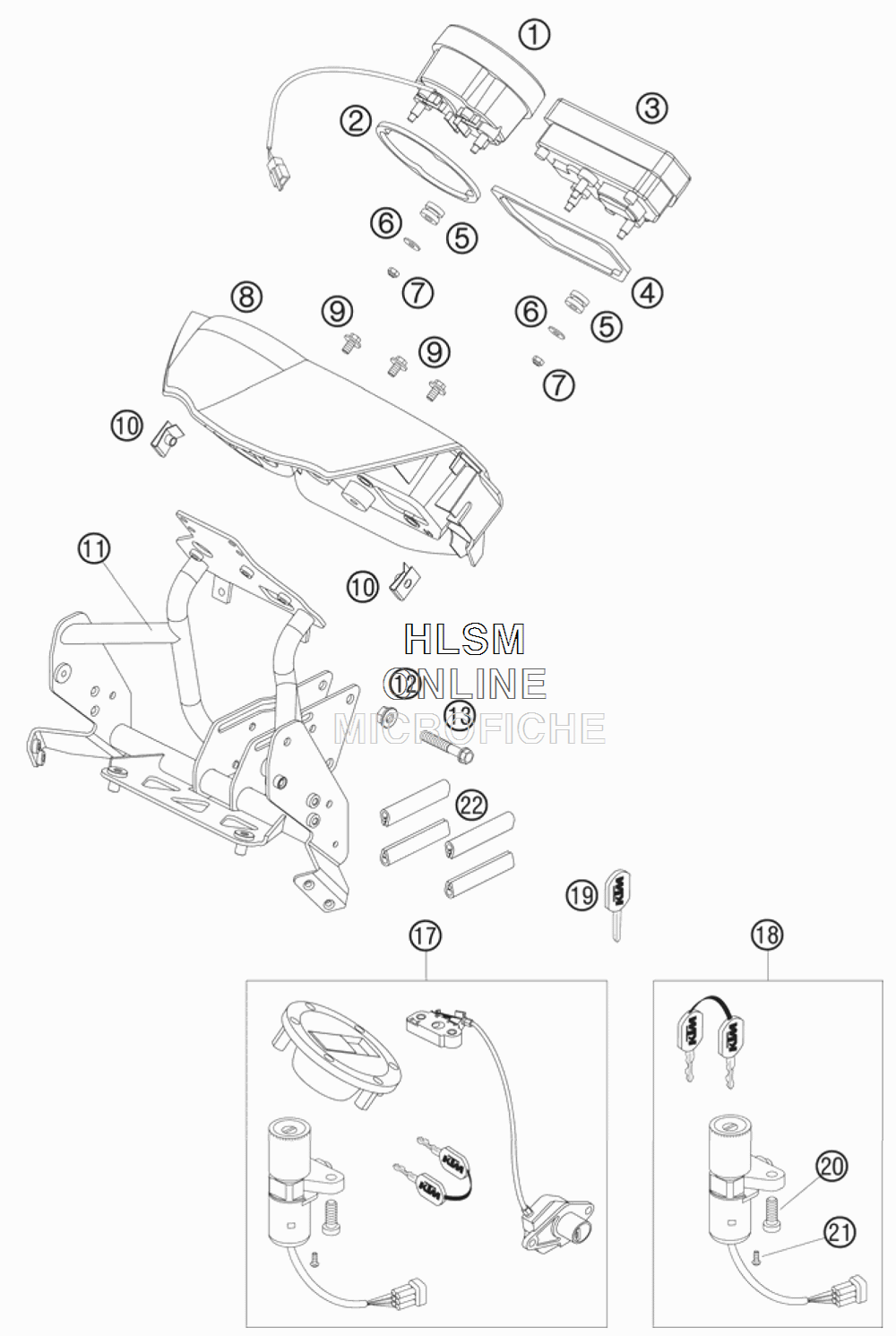

COCKPIT SUPPORT SPEEDOMETER для Ktm 990 Adventure Euro - 2006 года выпуска
-
№АртикулНазвание
-
160014075000 REV COUNTER LC8REV COUNTER LC8
-
260014068100 DAMPING RING SPEEDOMETERDAMPING RING SPEEDOMETER
-
361014069000 DIGITAL SPEEDOMETERDIGITAL SPEEDOMETER
-
460014068000 DAMPING RING TACHOMETERDAMPING RING TACHOMETER
-
558214069051 RUBBER GROMMET 16X10,8X3RUBBER GROMMET 16X10,8X3
-
60021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
70985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
8*60114070000 INSTRUMENT COVER ABSINSTRUMENT COVER ABS
-
90014060103 HH COLLAR SCREW M 6X10HH COLLAR SCREW M 6X10
-
1054603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
11*60114010000 COCKPIT SUPPORTCOCKPIT SUPPORT
-
1254310086200 SELF LOCKING NUT M8SELF LOCKING NUT M8
-
130015080453 HH COLLAR SCREW M 8X45HH COLLAR SCREW M 8X45
-
1760011066044 LOCK SYSTEM LC8 ADV.LOCK SYSTEM LC8 ADV.
-
1860011066000 IGNITION LOCK LC8 ADV.IGNITION LOCK LC8 ADV.
-
1940011166100 KEY BLANK LC4/DUKE/LC8KEY BLANK LC4/DUKE/LC8
-
2060011064000 TAMPERPROOF SCREW F. IGN. LOCKTAMPERPROOF SCREW F. IGN. LOCK
-
210985040123 FLAT HEAD SCREW DIN7985-M 4X12FLAT HEAD SCREW DIN7985-M 4X12
-
22*60114010070 EDGE PROTECTOR 14X9,5X66 MMEDGE PROTECTOR 14X9,5X66 MM
