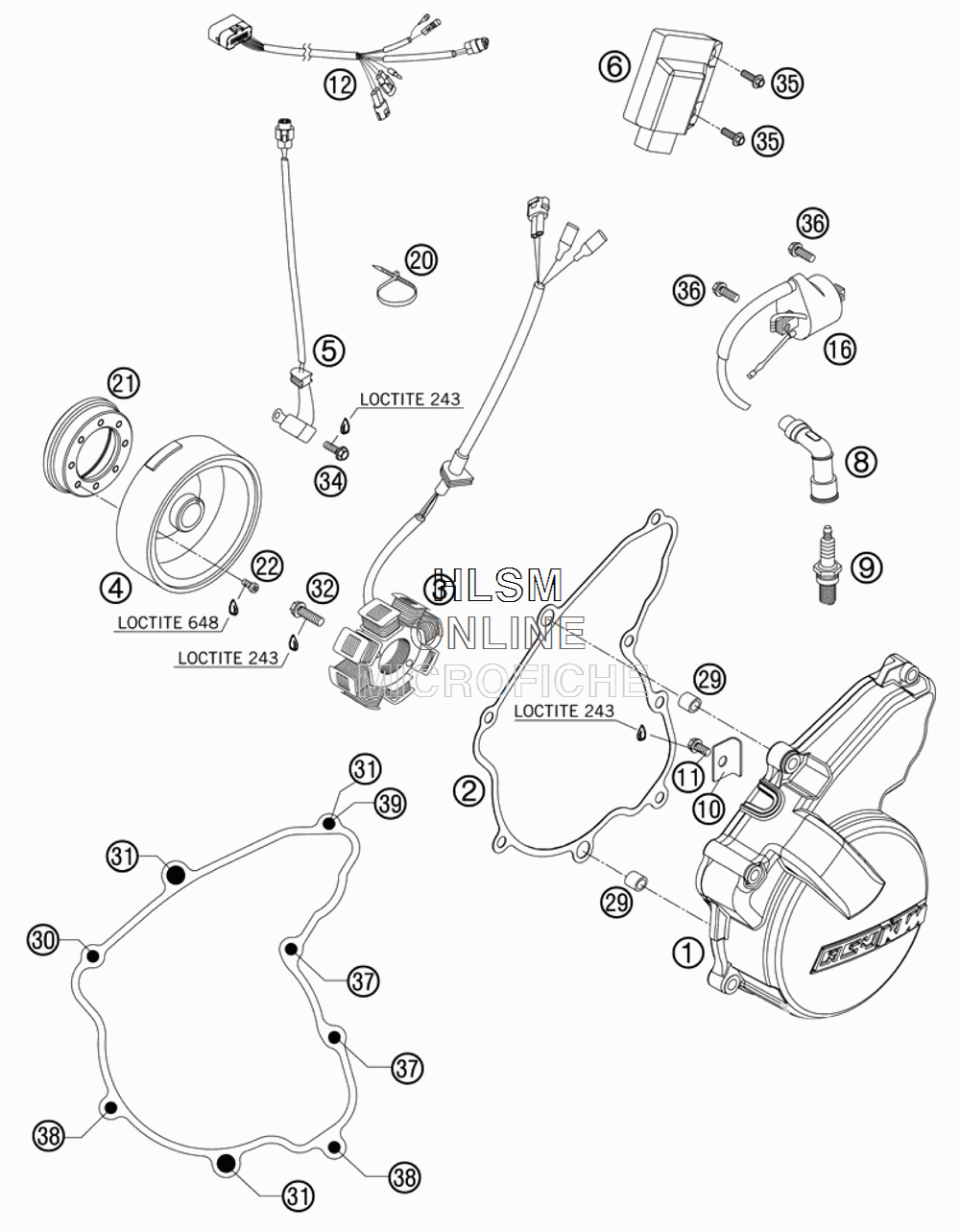

IGNITION SYSTEM для Ktm 250 XC-F - 2007 года выпуска

№

Артикул

Название
1

77030102000 IGNITION COVER

IGNITION COVER

24 100 ₽
2

77030140000 IGNITION COVER GASKET

IGNITION COVER GASKET

2 890 ₽
3

77039104000 STATOR

STATOR

53 210 ₽
4

77039105100 FLYWHEEL

FLYWHEEL

90 240 ₽
5

59039034000 PULSER COIL KOKUSAN 4K3-A/B

PULSER COIL KOKUSAN 4K3-A/B

20 650 ₽
6

77039131100 CDI UNIT

CDI UNIT

71 350 ₽
8

59039090100 SPARK PLUG CONNECT. VD05EG

SPARK PLUG CONNECT. VD05EG

14 980 ₽
9

77039093000 SPARK PLUG NGK CR9EKB

SPARK PLUG NGK CR9EKB

3 520 ₽
10

77030002050 WIRE RETAINING BRACKET

WIRE RETAINING BRACKET

920 ₽
11

0015060083 HH COLLAR SCREW M 6X8 WS=8

HH COLLAR SCREW M 6X8 WS=8

470 ₽
12

59439032100 WIRING HARNESS FOR CDI

WIRING HARNESS FOR CDI

24 240 ₽
16

59039006000 IGNITIONCOIL KOKUSAN 4K3-A/B

IGNITIONCOIL KOKUSAN 4K3-A/B

15 300 ₽
20

44011076100 CABLE TIE 100/2,5MM BLACK

CABLE TIE 100/2,5MM BLACK

100 ₽
21

77040025000 FREEWHEEL HUB

FREEWHEEL HUB

14 900 ₽
22

00120500810 AH SCREW DIN6912-M5X8 10.9

AH SCREW DIN6912-M5X8 10.9

320 ₽
29

49030090000 DOWEL 9,8 X 7 X 10

DOWEL 9,8 X 7 X 10

290 ₽
30

0015060503 HH COLLAR SCREW M 6X50 WS=8

HH COLLAR SCREW M 6X50 WS=8

640 ₽
31

0015060303 HH COLLAR SCREW M 6X30 WS=8

HH COLLAR SCREW M 6X30 WS=8

560 ₽
32

0015060203 HH COLLAR SCREW M 6X20 WS=8

HH COLLAR SCREW M 6X20 WS=8

500 ₽
34

0015050163 HH COLLAR SCREW M 5X16 WS=8

HH COLLAR SCREW M 5X16 WS=8

410 ₽
35

0014060103 HH COLLAR SCREW M 6X10 WS=8

HH COLLAR SCREW M 6X10 WS=8

500 ₽
36

0015060163 HH COLLAR SCREW M 6X16 WS=8

HH COLLAR SCREW M 6X16 WS=8

290 ₽
37

0015060253 HH COLLAR SCREW M 6X25 WS=8

HH COLLAR SCREW M 6X25 WS=8

560 ₽
38

0015060953 HH COLLAR SCREW M 6X95 WS=8

HH COLLAR SCREW M 6X95 WS=8

680 ₽
39

0603061001 CU-SEAL RING DIN7603-6X10X1

CU-SEAL RING DIN7603-6X10X1

320 ₽
