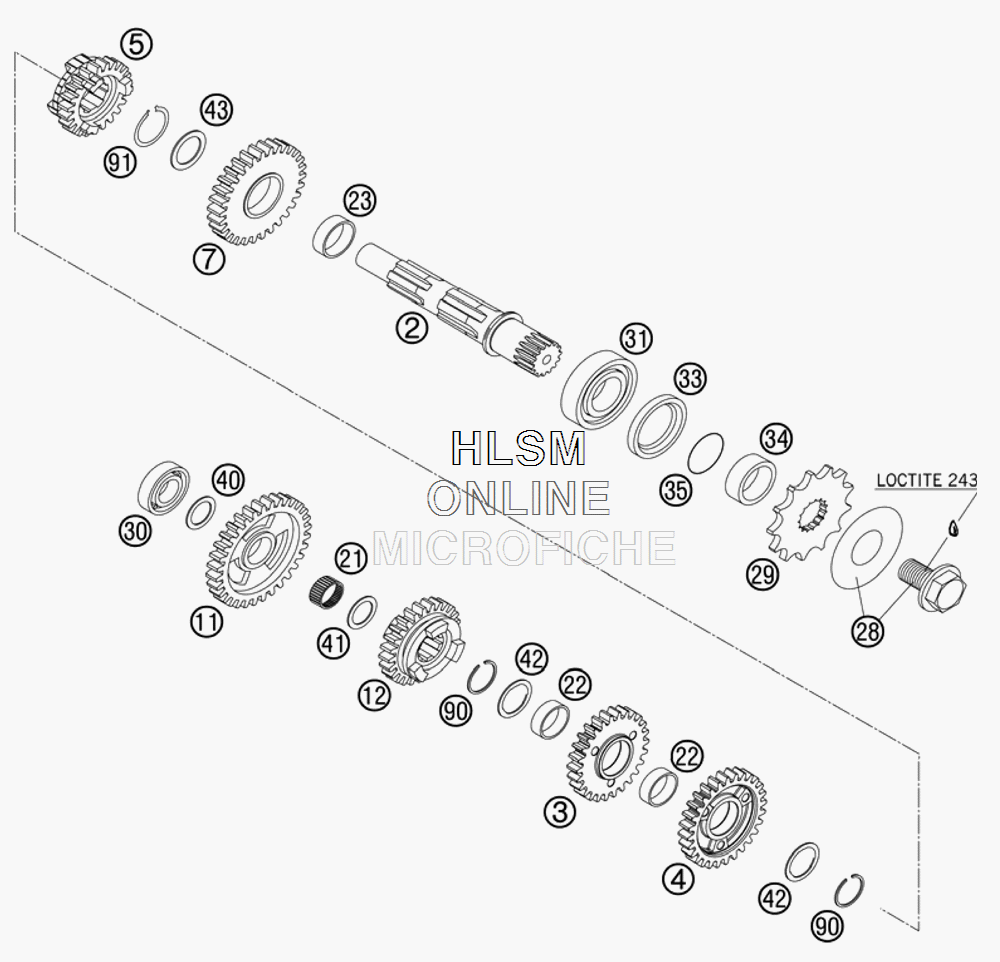

TRANSMISSION - COUNTERSHAFT для Ktm 250 XC-F - 2007 года выпуска

№

Артикул

Название
2

77033010000 COUNTER SHAFT

COUNTER SHAFT

23 980 ₽
3

77033014100 IDLER G. 4TH G.26-T "4C26"

IDLER G. 4TH G.26-T "4C26"

20 130 ₽
4

77033013100 IDLER G. 3RD G.28-T

IDLER G. 3RD G.28-T

56 010 ₽
5

77033016100 SLIDING G. 6TH G.24-T"6C24"

SLIDING G. 6TH G.24-T"6C24"

29 470 ₽
7

77033012100 IDLER G. 2ND G. 30-T "2C30"

IDLER G. 2ND G. 30-T "2C30"

17 410 ₽
11

77033011100 IDLER G. 1ST G. 32-T "1C32"

IDLER G. 1ST G. 32-T "1C32"

18 310 ₽
12

77033015100 SLIDING G. 5TH G.25-T "5C25"

SLIDING G. 5TH G.25-T "5C25"

18 900 ₽
21

50033098000 NEEDLE BEARING K20X24X10

NEEDLE BEARING K20X24X10

3 240 ₽
22

0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED

NEEDLE BEAR.K 22X26X10 DIVIDED

3 130 ₽
23

50333023000 IDLER GEAR BUSHING 25X28X9,7 D

IDLER GEAR BUSHING 25X28X9,7 D

7 630 ₽
28

59033034044 SCREW+ SPRING WASHER

SCREW+ SPRING WASHER

2 050 ₽
29

50033029013 SPROCKET 13-T

SPROCKET 13-T

8 110 ₽
29

50033029014 SPROCKET 14-T

SPROCKET 14-T

8 110 ₽
29

50033029015 SPROCKET 15-T

SPROCKET 15-T

7 100 ₽
30

0625060031 BALL BEARING 6003 TN9 C4

BALL BEARING 6003 TN9 C4

6 310 ₽
31

0625062054 BALL BEARING 6205 C3 NTN

BALL BEARING 6205 C3 NTN

5 550 ₽
33

0760324571 SHAFT SEAL RING 32X45X7 BSLNBR

SHAFT SEAL RING 32X45X7 BSLNBR

1 140 ₽
34

54633014100 SPACER BUSHING 12MM

SPACER BUSHING 12MM

5 140 ₽
35

0770020220 O-RING 25,12X1,78 NBR70

O-RING 25,12X1,78 NBR70

590 ₽
40

56033030000 STOP DISC 17,2X30X1

STOP DISC 17,2X30X1

970 ₽
41

59033080000 SHIM 20X32X1

SHIM 20X32X1

440 ₽
42

50333043000 STOP DISC 25,2X32X1

STOP DISC 25,2X32X1

1 230 ₽
43

0988253510 THRUST WASH. DIN0988-25X35X1,0

THRUST WASH. DIN0988-25X35X1,0

350 ₽
90

77033022000 AXIAL-CIRCLIP 25X1,65

AXIAL-CIRCLIP 25X1,65

970 ₽
91

0471250120 CIRCLIP DIN0471-25X1,2

CIRCLIP DIN0471-25X1,2

290 ₽
