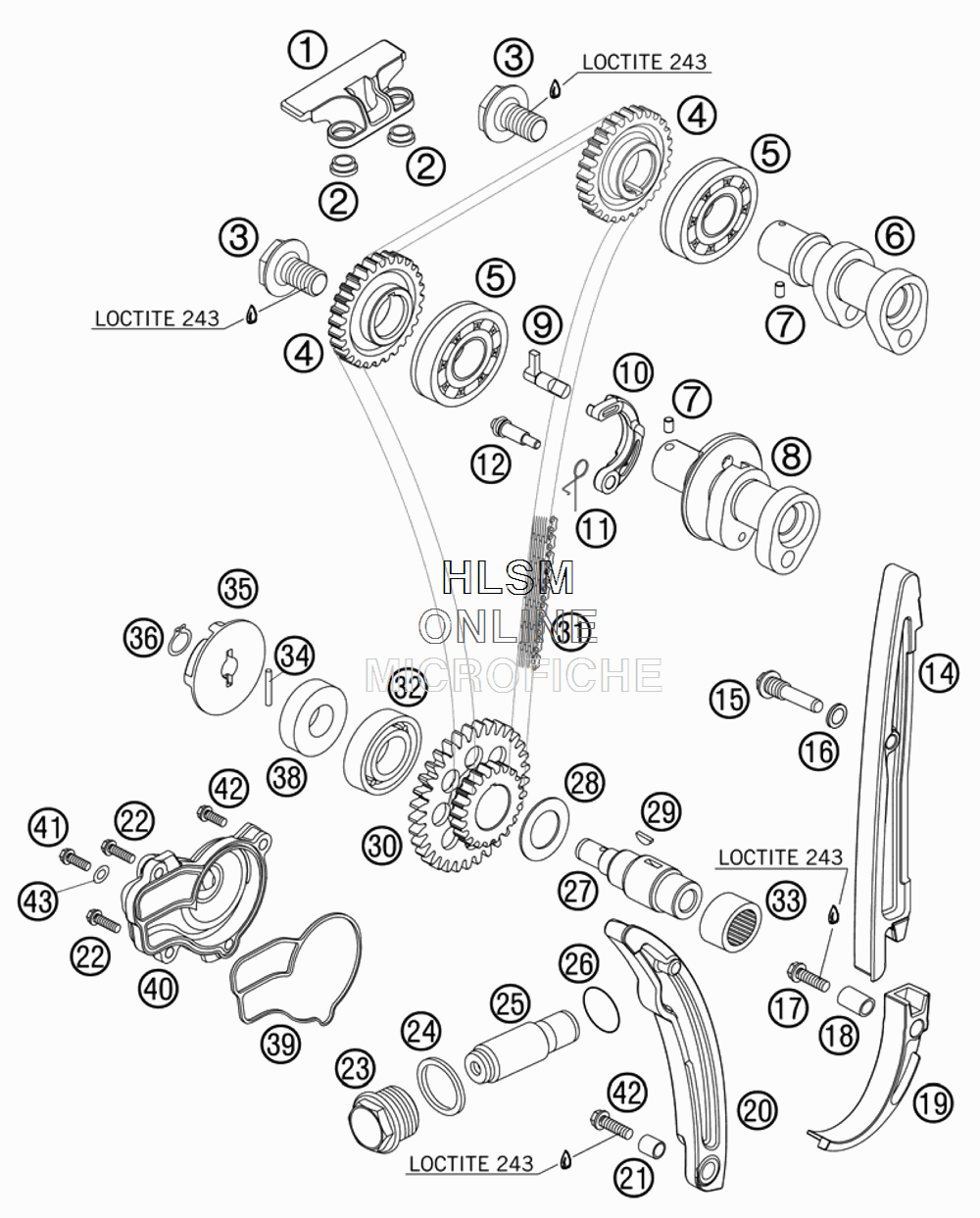

TIMING VALVE для Ktm 250 XC-FW - 2007 года выпуска
-
№АртикулНазвание
-
177036004000 TIMING CHAIN GUIDE TOPTIMING CHAIN GUIDE TOP
-
277036004050 SPACER BUSHING GUIDE RAILSPACER BUSHING GUIDE RAIL
-
377036012000 CAMSHAFT GEAR SCREWCAMSHAFT GEAR SCREW
-
477036011100 CAMSHAFT GEARCAMSHAFT GEAR
-
50625060043 BALL BEARING 6004 NR C3BALL BEARING 6004 NR C3
-
677036009100 CAMSHAFT INTAKECAMSHAFT INTAKE
-
70402040600 NEEDLE ROOLER DIN5402 NRB 4X6NEEDLE ROOLER DIN5402 NRB 4X6
-
877036110100 CAMSHAFT EXHAUSTCAMSHAFT EXHAUST
-
977036015000 AUTO DECOMPRESSIONAUTO DECOMPRESSION
-
1077036016000 AUTO DECO WEIGHTAUTO DECO WEIGHT
-
1177036017000 SPRING FOR AUTO DECOMPR.SPRING FOR AUTO DECOMPR.
-
1277036019000 BUSHING SCREW AUTODEC. M5X0,8BUSHING SCREW AUTODEC. M5X0,8
-
1477036001000 TIMING CHAIN GUIDETIMING CHAIN GUIDE
-
1577036001060 BUSHING SCREW 06BUSHING SCREW 06
-
160603082121 SEAL RING CU DIN7603- 8X12X1SEAL RING CU DIN7603- 8X12X1
-
170015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
1859036001050 SPACER BUSHING 6,1X8,2X13,1SPACER BUSHING 6,1X8,2X13,1
-
1977036005000 SECURING PROTECTIONSECURING PROTECTION
-
2077036002000 TIMING CHAIN TENSIONERTIMING CHAIN TENSIONER
-
2177036001050 SPACER BUSHING 6.1X8.2X9.1SPACER BUSHING 6.1X8.2X9.1
-
220015060403 HH COLLAR SCREW M 6X40 WS=8HH COLLAR SCREW M 6X40 WS=8
-
2377036008000 CHAIN ADJUSTER HOLDING BOLTCHAIN ADJUSTER HOLDING BOLT
-
240603242920 CU SEAL-RING DIN7603 A24X29X2CU SEAL-RING DIN7603 A24X29X2
-
2577036003000 CHAIN ADJUSTER HYD.CHAIN ADJUSTER HYD.
-
260770180020 O-RINGO-RING
-
2777036072000 TIMING VALVE JACKSHAFTTIMING VALVE JACKSHAFT
-
2877036073000 STOP DISK 18,2X30X1STOP DISK 18,2X30X1
-
290888030037 WOODRUFF KEY DIN6888-3X3,7WOODRUFF KEY DIN6888-3X3,7
-
3077036076100 TIMING VALVE TWIN WHEELTIMING VALVE TWIN WHEEL
-
3177036013000 TIMING CHAIN IWIS 108 ROLLSTIMING CHAIN IWIS 108 ROLLS
-
320625062035 BALL BEARING 6203 JR2 C3BALL BEARING 6203 JR2 C3
-
330618182412 NEEDLE BEAR.HK1812 18/24/12NEEDLE BEAR.HK1812 18/24/12
-
340402031780 NEEDLE ROL.DIN5402 NRB 3X17,8NEEDLE ROL.DIN5402 NRB 3X17,8
-
3577035055000 WATER PUMP ROTORWATER PUMP ROTOR
-
360471100010 CIRCLIP DIN0471-10X1CIRCLIP DIN0471-10X1
-
380760123072 SHAFT SEAL RING 12X30X7 VITONSHAFT SEAL RING 12X30X7 VITON
-
3977035053000 MOLDED RING WATER PUMPMOLDED RING WATER PUMP
-
4077035052000 WATER PUMP COVERWATER PUMP COVER
-
410015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
420015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
430603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
