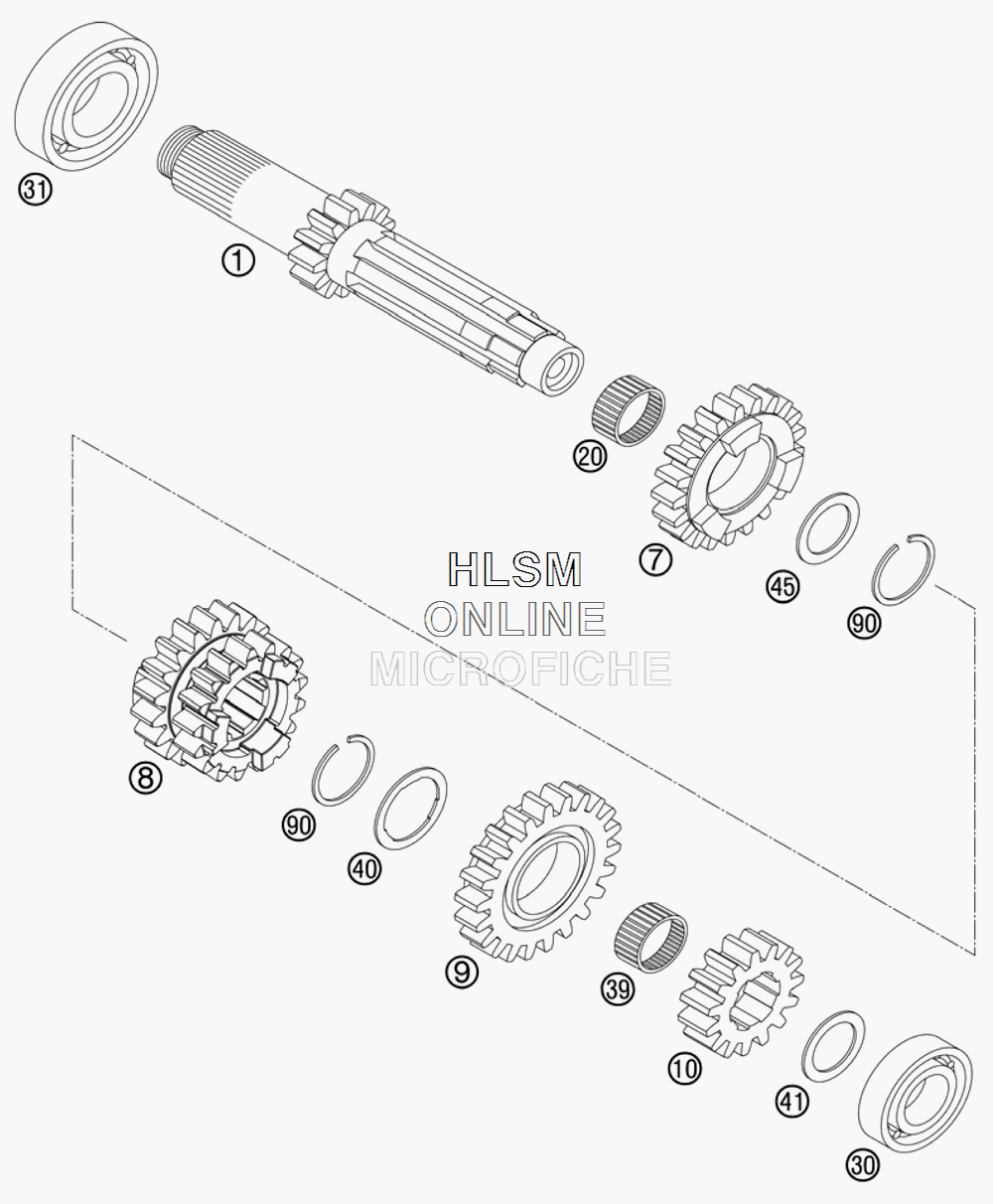

TRANSMISSION - MAIN SHAFT для Ktm 250 XC-FW - 2007 года выпуска
-
№АртикулНазвание
-
177033101000 MAIN SHAFT CPL. Z=13 ''B13''MAIN SHAFT CPL. Z=13 ''B13''
-
777033105000 IDLER G. 5TH G=23 ''5B23''IDLER G. 5TH G=23 ''5B23''
-
877033103000 SLIDING G.3/4. G19/23-T''B1923''SLIDING G.3/4. G19/23-T''B1923''
-
977033106000 IDLER G. 6TH G.26 ''6B26''IDLER G. 6TH G.26 ''6B26''
-
1077033102000 SOLID GEAR 2ND G.17-T''2B17''SOLID GEAR 2ND G.17-T''2B17''
-
200405222611 NEEDLE BEAR.K 22X26X10 DIVIDEDNEEDLE BEAR.K 22X26X10 DIVIDED
-
300625160030 GROOVED BALL BEARING 16003 C3GROOVED BALL BEARING 16003 C3
-
310625060042 BALL BEARING 6004 TN9 C4BALL BEARING 6004 TN9 C4
-
3950133099000 NEEDLE CAGE K18X22X10 PARTEDNEEDLE CAGE K18X22X10 PARTED
-
4077033021000 STOP DISC 05STOP DISC 05
-
4150333030000 STOP DISK 17,2X24X1STOP DISK 17,2X24X1
-
4577033020000 STOP GEAR 22X28.5X1 05STOP GEAR 22X28.5X1 05
-
9050133090000 LOCK RING 22X1,2LOCK RING 22X1,2
