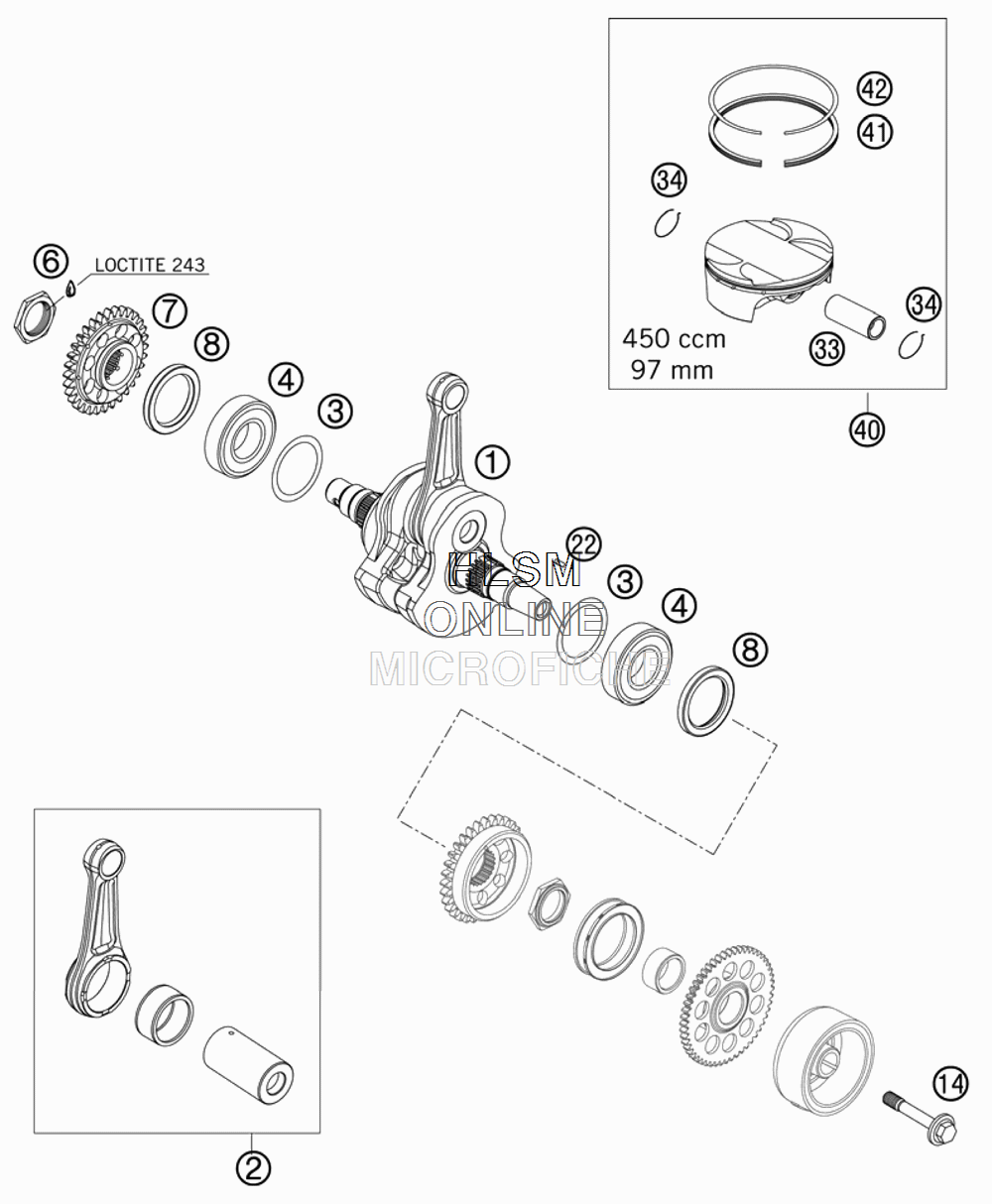

CRANKSHAFT PISTON для Ktm 450 SX-F - 2007 года выпуска
-
№АртикулНазвание
-
177330018200 CRANKSHAFT CPL.CRANKSHAFT CPL.
-
277330015144 CONNECTING ROD REPAIR SETCONNECTING ROD REPAIR SET
-
30988304201 THRUST WASHER 30X42X0,1THRUST WASHER 30X42X0,1
-
30988304202 THRUST WASHER 30X42X0,2THRUST WASHER 30X42X0,2
-
30988304203 THRUST WASHER 30X42X0,3THRUST WASHER 30X42X0,3
-
477330082000 CYL. ROLLER BEARING NJ206 ECPCYL. ROLLER BEARING NJ206 ECP
-
677330029000 COLLAR NUT M27X1COLLAR NUT M27X1
-
777332023177 PRIMARY GEAR CPL.PRIMARY GEAR CPL.
-
80760405560 SHAFT SEAL RING A40X55X6 VITONSHAFT SEAL RING A40X55X6 VITON
-
1477339010000 FLYWHEEL SCREWFLYWHEEL SCREW
-
220888030037 WOODRUFF KEY DIN6888-3X3,7WOODRUFF KEY DIN6888-3X3,7
-
3377330033000 PISTON PINPISTON PIN
-
3477330074000 CIRCLIPCIRCLIP
-
4077330007100I PISTON I CPL. D=97MMPISTON I CPL. D=97MM
-
4077330007100II PISTON II CPL. D=97MMPISTON II CPL. D=97MM
-
4177330032100 OIL SCRAPER RINGOIL SCRAPER RING
-
4277330030100 COMPRESSIONRINGCOMPRESSIONRING
