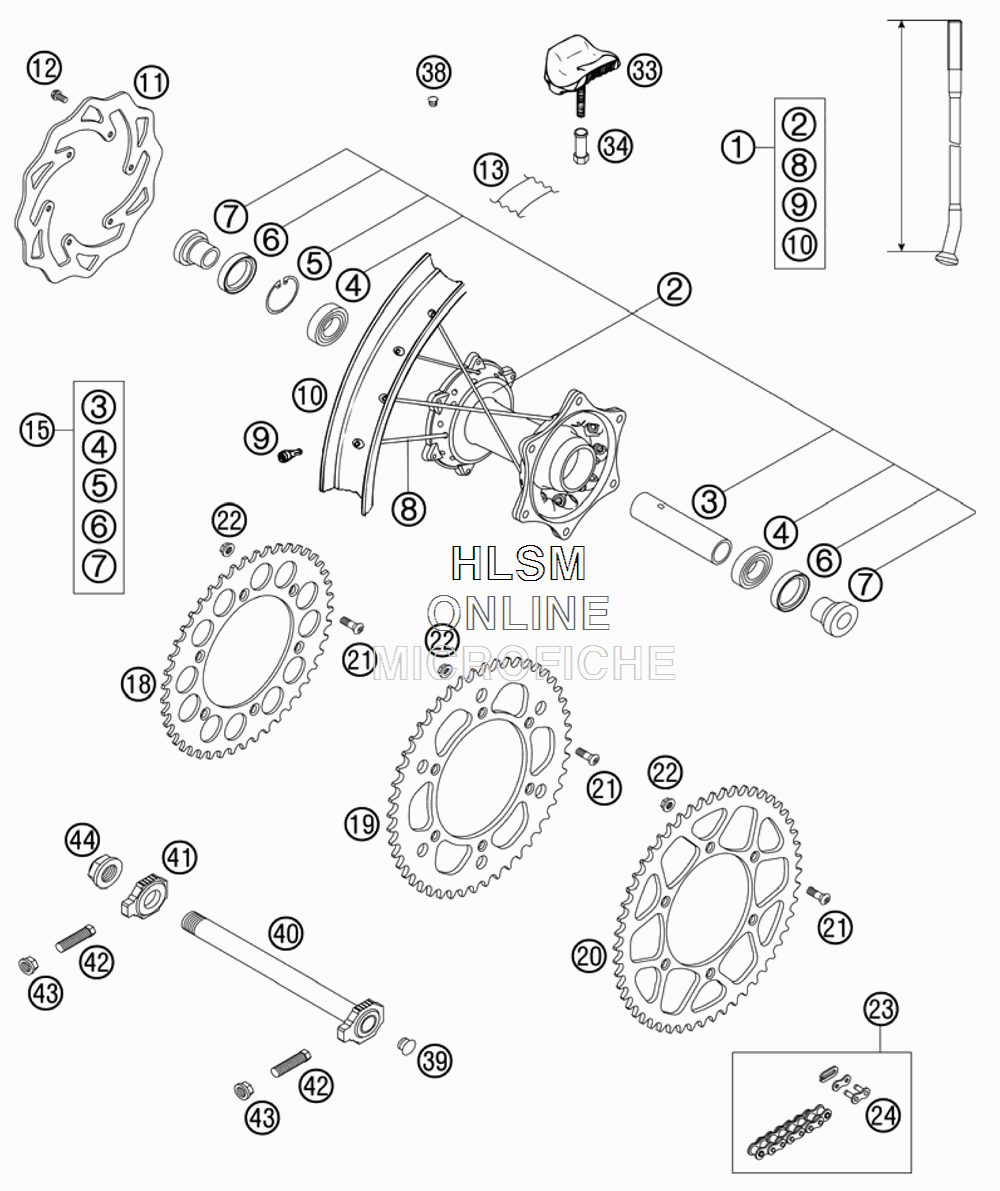

REAR WHEEL для Ktm 450 SX-F - 2007 года выпуска
-
№АртикулНазвание
-
17731000104430 REAR WHEEL CPL.2,15X19''EXCEL07REAR WHEEL CPL.2,15X19''EXCEL07
-
277310010044 REAR HUB SX CPL.REAR HUB SX CPL.
-
359010011000 BUSHING SPACER TUBE 121,5MMBUSHING SPACER TUBE 121,5MM
-
40625060058 GR.BALL BEAR.6005 DDU2CG23S6NMGR.BALL BEAR.6005 DDU2CG23S6NM
-
50472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
60760324771 SHAFT SEAL RING 32X47X7 BSLSHAFT SEAL RING 32X47X7 BSL
-
777310016000 SPACER BUSHINGSPACER BUSHING
-
877310072207 SPOKE M5X207 - 19''SPOKE M5X207 - 19''
-
958309072000 SPOKE NIPPLE M5-TASPOKE NIPPLE M5-TA
-
105461007010030 RIM 2,15X19''EXCEL AL4 BLACKRIM 2,15X19''EXCEL AL4 BLACK
-
1177310060000 BRAKE DISC REAR 220BRAKE DISC REAR 220
-
1259009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
1350310073200 RIM BAND 18'' AND 19''RIM BAND 18'' AND 19''
-
1577310015000 REAR WHEEL REP. KITREAR WHEEL REP. KIT
-
1858310051038 REAR SPROCKET 38-TREAR SPROCKET 38-T
-
1858310051042 REAR SPROCKET 42-TREAR SPROCKET 42-T
-
1858310151040 REAR SPROCKET 40-TREAR SPROCKET 40-T
-
1858310151045 REAR SPROCKET 45-TREAR SPROCKET 45-T
-
1958310151048 REAR SPROCKET 48-TREAR SPROCKET 48-T
-
1958310151049 REAR SPROCKET 49-TREAR SPROCKET 49-T
-
2058310151050 REAR SPROCKET 50-TREAR SPROCKET 50-T
-
2058310151051 REAR SPROCKET 51-TREAR SPROCKET 51-T
-
2058310151052 REAR SPROCKET 52-TREAR SPROCKET 52-T
-
2154510052100 SPROCKET SCREW-AH M8X26 WS=6SPROCKET SCREW-AH M8X26 WS=6
-
2254310086200 SELF LOCKING NUT M8SELF LOCKING NUT M8
-
2350310165118 CHAIN 5/8X1/4''CHAIN 5/8X1/4''
-
2350310800118 CHAIN Z-RING 5/8X1/4''CHAIN Z-RING 5/8X1/4''
-
2450310166000 CONNECTING LINKCONNECTING LINK
-
2450310366000 CONNECTING LINKCONNECTING LINK
-
2450310866000 MASTER LINKMASTER LINK
-
3354010100100 RIM LOCK VM3RIM LOCK VM3
-
3450310090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
3950210086000 COVERING CAP SFL16COVERING CAP SFL16
-
4077310085044 WHEEL SPINDLE RE. CPL.265MMWHEEL SPINDLE RE. CPL.265MM
-
4150310084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
4250304040100 M10X1,25X50M10X1,25X50
-
4358414030000 COLLAR NUT M10X1,25COLLAR NUT M10X1,25
-
4450310099000 NUT T M20X1,5NUT T M20X1,5
