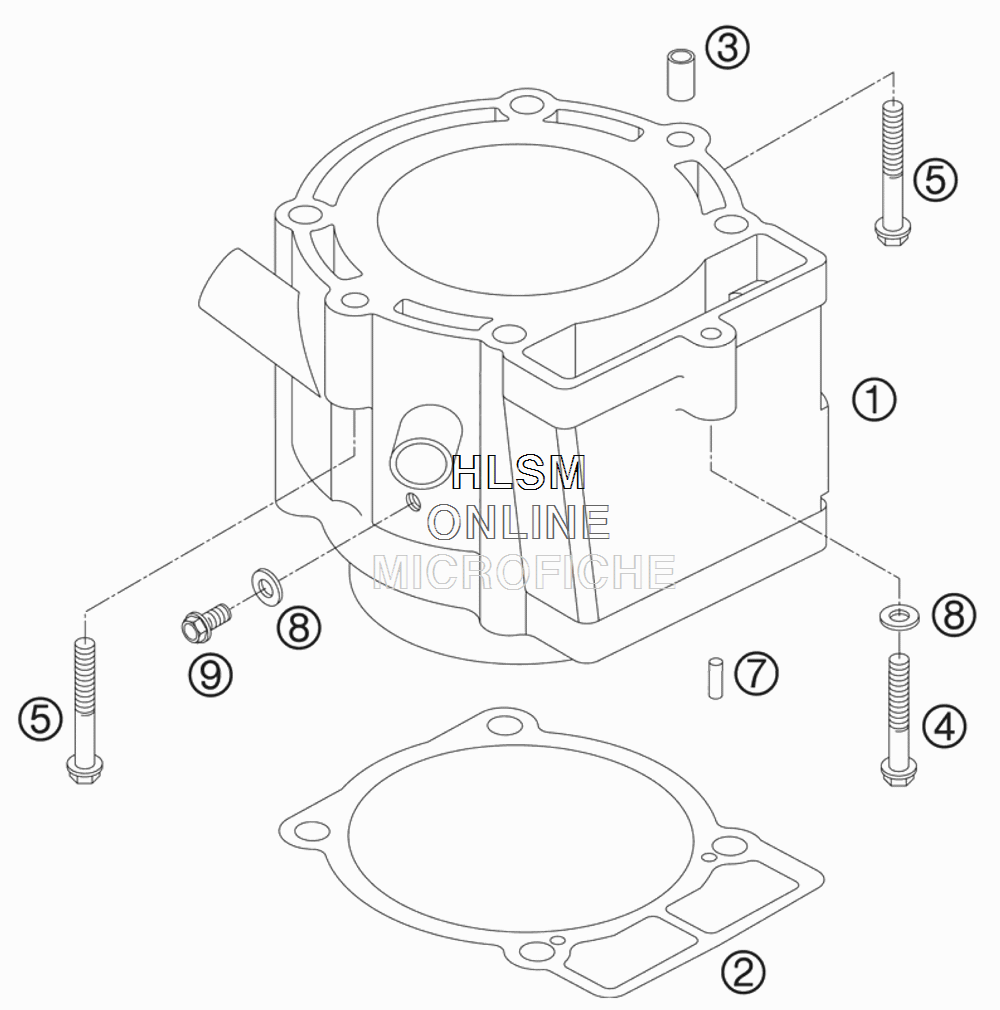

CYLINDER для Ktm 450 XC-W - 2007 года выпуска
-
№АртикулНазвание
-
159530005000 CYLINDER 89MMCYLINDER 89MM
-
259430035000 CYLINDER BASE GASKET 0,8MMCYLINDER BASE GASKET 0,8MM
-
359030023000 DOWEL 6X8X11,5DOWEL 6X8X11,5
-
40015060403 HH COLLAR SCREW M 6X40 WS=8HH COLLAR SCREW M 6X40 WS=8
-
50015060453 HH COLLAR SCREW M 6X45 WS=8HH COLLAR SCREW M 6X45 WS=8
-
70402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
80603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
90015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
