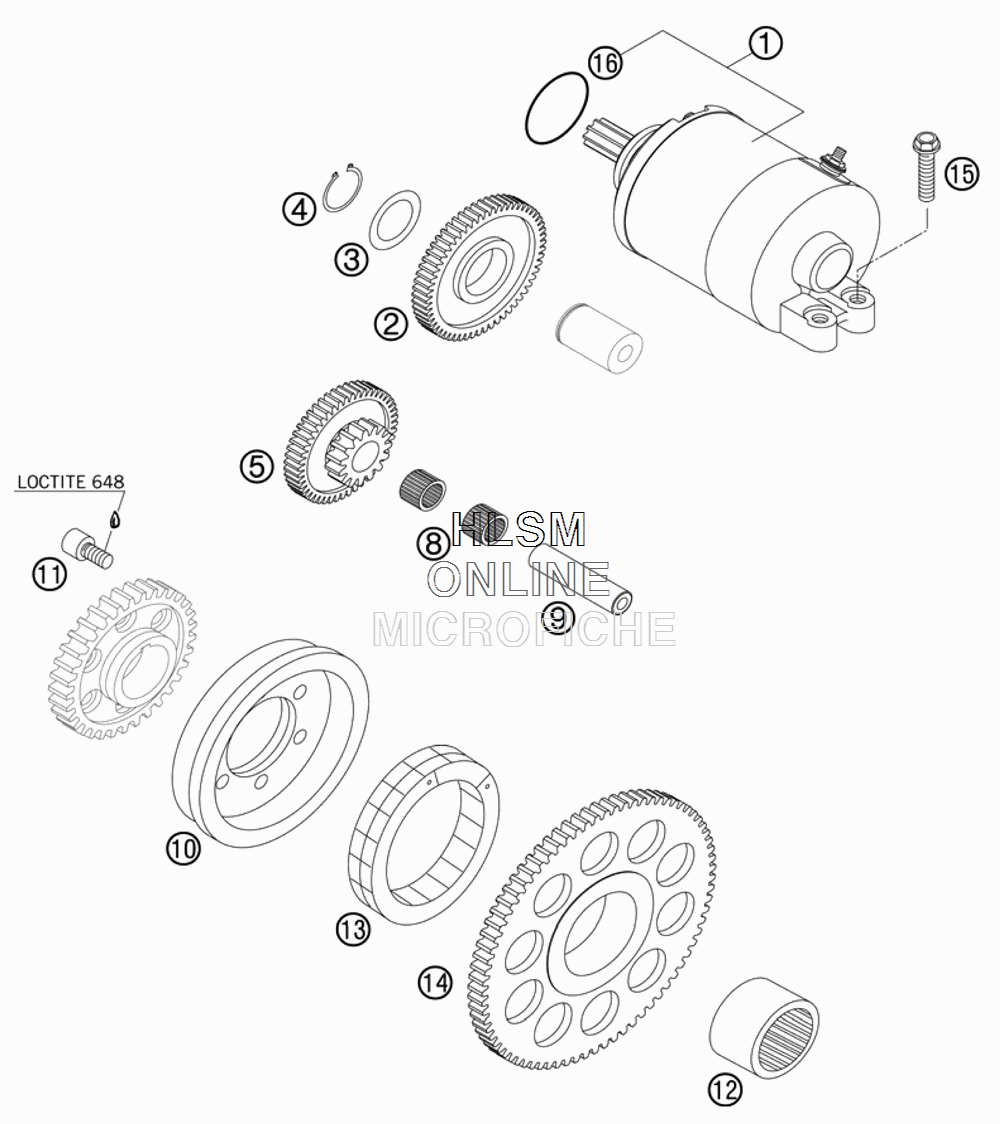

ELECTRIC STARTER для Ktm 450 XC-W - 2007 года выпуска
-
№АртикулНазвание
-
159040001000 E-STARTER ENGINE KPL. 0,45 KWE-STARTER ENGINE KPL. 0,45 KW
-
259040022258 GEAR WHEELGEAR WHEEL
-
354633090000 STOP DISK 17,2X25X1STOP DISK 17,2X25X1
-
40471170010 CIRCLIP DIN0471-17X1CIRCLIP DIN0471-17X1
-
559040016000 TORQUE LIMITER 06TORQUE LIMITER 06
-
80405101310 NEEDLE BEARING K 10X13X10NEEDLE BEARING K 10X13X10
-
959040029000 BEARING BOLTBEARING BOLT
-
1059040025000 FREE WHEEL HUBFREE WHEEL HUB
-
110912060106 AH SCREW DIN0912-M 6X10 10.9AH SCREW DIN0912-M 6X10 10.9
-
120618301617 NEEDLE BEARING HK 3016 BNEEDLE BEARING HK 3016 B
-
1358440026000 FREE-WHEEL FWD 332008 BLSFREE-WHEEL FWD 332008 BLS
-
1459040020175 FREEWHEEL GEARFREEWHEEL GEAR
-
150015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
160770250030 O-RING 25,00X3,00 NBR 70O-RING 25,00X3,00 NBR 70
-
1759040034000 CAP COVERCAP COVER
-
180015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
190125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
