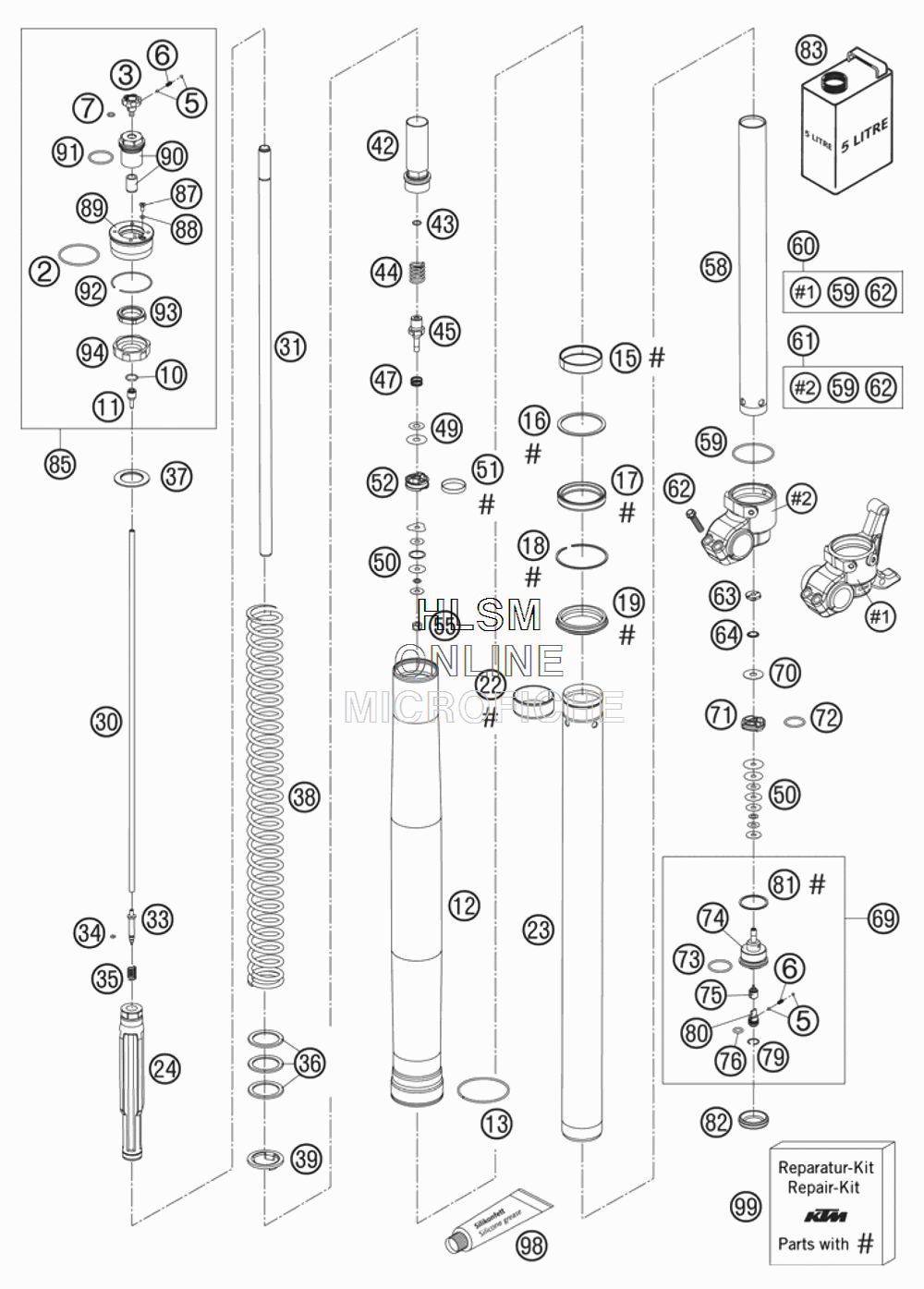

FORK LEGS для Ktm 660 RALLYE FACTORY REPL. - 2007 года выпуска
-
№АртикулНазвание
-
246810340 O-RING NBR 45X2O-RING NBR 45X2
-
348600018 KNOB REBOUNG ADJUSTERKNOB REBOUNG ADJUSTER
-
540540603 STEEL BALL D=3MMSTEEL BALL D=3MM
-
648600028 SPRING D=2,9 L=7,9SPRING D=2,9 L=7,9
-
748600044 O-RING NBR 6X1,5O-RING NBR 6X1,5
-
1048600043 O-RING NBR 12X1,5O-RING NBR 12X1,5
-
1148600019 HOLDER F.ADJUSTMENT TUBE D=4MMHOLDER F.ADJUSTMENT TUBE D=4MM
-
1248600421E OUTER T. L=577 D=54/60 2L ANTROUTER T. L=577 D=54/60 2L ANTR
-
1348600016 GUIDING RING D=58MMGUIDING RING D=58MM
-
1548600429 DU-BUSH D48XD52X12DDL02DU-BUSH D48XD52X12DDL02
-
1648600013 SUPPORT RING 50 X 57,6 X 1,5SUPPORT RING 50 X 57,6 X 1,5
-
1748600399 OIL SEAL RING 48X57,8X9,5OIL SEAL RING 48X57,8X9,5
-
1848600070 LOCK WASHER SB58LOCK WASHER SB58
-
1948600400 DUST CAP D=48 58,4X11,8DUST CAP D=48 58,4X11,8
-
2248600428 DU-BUSH D47XD49X20DDL02DU-BUSH D47XD49X20DDL02
-
2348600417 INNER TUBE D=48 L=595 2005INNER TUBE D=48 L=595 2005
-
2448600380S1 HYDR.STOP L=200MM D=31,9 CPL.HYDR.STOP L=200MM D=31,9 CPL.
-
3048600092 ADJUSTMENT TUBE L=517MMADJUSTMENT TUBE L=517MM
-
3148600409 PISTON ROD D=14 L=551 M11X1PISTON ROD D=14 L=551 M11X1
-
3348600189 NEEDLE REBOUNDNEEDLE REBOUND
-
3448600046 O-RING NBR 3X1,5O-RING NBR 3X1,5
-
3548600033 SPRING REBOUND NEEDLE C=4N/MMSPRING REBOUND NEEDLE C=4N/MM
-
3648600036 SPACER 42X26,5X2,5SPACER 42X26,5X2,5
-
3648600037 SPACER 42X26,5X5SPACER 42X26,5X5
-
3648600053 SPACER 42X26,5X1,5SPACER 42X26,5X1,5
-
3648600113 WASHER 32X42X2,5WASHER 32X42X2,5
-
3748600154 SPACER 43,2X33X15SPACER 43,2X33X15
-
3891410017S SPRING 4,8N/MM SETSPRING 4,8N/MM SET
-
3948600021 INTERM. RING 26,2 X 43 X 3INTERM. RING 26,2 X 43 X 3
-
4248600383S SCREW SLEEVE M29,3X1 L=90 CPL.SCREW SLEEVE M29,3X1 L=90 CPL.
-
4348600239 O-RING NBR 8X1,25O-RING NBR 8X1,25
-
4448600403 REBOUND SPRING D=15MM L=34,5MMREBOUND SPRING D=15MM L=34,5MM
-
4548600203 TAB REBOUND D=3 03TAB REBOUND D=3 03
-
4735480377 SPRING CHECK VALVE D=0,5SPRING CHECK VALVE D=0,5
-
4943570120 SHIM 8X18X0,10SHIM 8X18X0,10
-
4948600215 CHECK VALVE 8X20X0,1CHECK VALVE 8X20X0,1
-
4948600062 CHECK VALVE 8X24X0,1CHECK VALVE 8X24X0,1
-
4948600216 CHECK VALVE 8X22X0,1CHECK VALVE 8X22X0,1
-
4948600218 BACKPLATE 8X11X0,40BACKPLATE 8X11X0,40
-
5040540401 SHIM 6X14X0,1SHIM 6X14X0,1
-
5040540402 SHIM 6X16X0,1SHIM 6X16X0,1
-
5040540403 SHIM 6X18X0,1SHIM 6X18X0,1
-
5040540405 SHIM 6X14X0,15SHIM 6X14X0,15
-
5040540406 SHIM 6X16X0,15SHIM 6X16X0,15
-
5040540414 SHIM 6X16X0,25SHIM 6X16X0,25
-
5040540415 SHIM 6X18X0,25SHIM 6X18X0,25
-
5040540447 SHIM 6X10X0,3SHIM 6X10X0,3
-
5040541402 SHIM 6X11X0,2SHIM 6X11X0,2
-
5040541404 SHIM 6X10X0,1SHIM 6X10X0,1
-
5048600063 SHIM 6X24X0,1SHIM 6X24X0,1
-
5048600064 SHIM 6X22X0,1SHIM 6X22X0,1
-
5048600065 SHIM 6X20X0,1SHIM 6X20X0,1
-
5048600116 SHIM 6X24X0,1 DELTASHIM 6X24X0,1 DELTA
-
5148600060 PISTON RING 5X1X84PISTON RING 5X1X84
-
5248600201 PISTON REBOUND B=11,2PISTON REBOUND B=11,2
-
5540540486 NUT M6X0,5 REBOUNDNUT M6X0,5 REBOUND
-
5848600081 TUBE 29,3X1X390 D=8,5MMTUBE 29,3X1X390 D=8,5MM
-
5948600048 O-RING NBR 46 X 2O-RING NBR 46 X 2
-
6048600171S AXLE CLAMP L/S CPL. RALLYEAXLE CLAMP L/S CPL. RALLYE
-
6148600170S AXLE CLAMP R/S CPL. RALLYEAXLE CLAMP R/S CPL. RALLYE
-
620015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
6348600163 CHECK VALVE NUT M6X0,5 D=2CHECK VALVE NUT M6X0,5 D=2
-
6448600202 SPRING CHECK VALVE D=0,7SPRING CHECK VALVE D=0,7
-
6948600152S1 TAP COMPRESSION CPL.TAP COMPRESSION CPL.
-
7048600061 CHECK VALVE 8X24X0,4CHECK VALVE 8X24X0,4
-
7148600047 PISTON COMPRESSION D=27,9PISTON COMPRESSION D=27,9
-
7246811499 O-RING NBR 21X2O-RING NBR 21X2
-
7335480320 O-RING NBR 24X2O-RING NBR 24X2
-
7448600152 TAP COMPRESSIONTAP COMPRESSION
-
7548600190 NEEDLE COMPRESSIONNEEDLE COMPRESSION
-
7648600049 O-RING NBR 8X2O-RING NBR 8X2
-
7948600051 LOCK WASHER RB12LOCK WASHER RB12
-
8048600034 COMPRESSION ADJ. SCREWCOMPRESSION ADJ. SCREW
-
8148600004 COPPER WASHER 29,5X33,5X1COPPER WASHER 29,5X33,5X1
-
8248600141 RUBBER CAP D=35MMRUBBER CAP D=35MM
-
8348600401S1 FORK OIL SAE 5 2005 1,22 LITREFORK OIL SAE 5 2005 1,22 LITRE
-
8548600075S PRE-LOAD ADJUSTER CPL.(1 PC.)PRE-LOAD ADJUSTER CPL.(1 PC.)
-
8748600076 VENT SCREW M4X8VENT SCREW M4X8
-
8848600046 O-RING NBR 3X1,5O-RING NBR 3X1,5
-
8948600075 SCREW CAP M51X1,5SCREW CAP M51X1,5
-
9048600073S ADAPTER ADJUST. KNOB + BUSHINGADAPTER ADJUST. KNOB + BUSHING
-
9148600077 O-RING NBR 26X2O-RING NBR 26X2
-
9246810010 CIRCLIP 49X1,5CIRCLIP 49X1,5
-
9348600072 LOCKNUTLOCKNUT
-
9448600071 SUPPORT RING FOR SPRINGSUPPORT RING FOR SPRING
-
98T511 SILICONE GREASE F. DUST STRISILICONE GREASE F. DUST STRI
-
99R14013 REPAIR-KIT GASKET 4860 MXMAREPAIR-KIT GASKET 4860 MXMA
