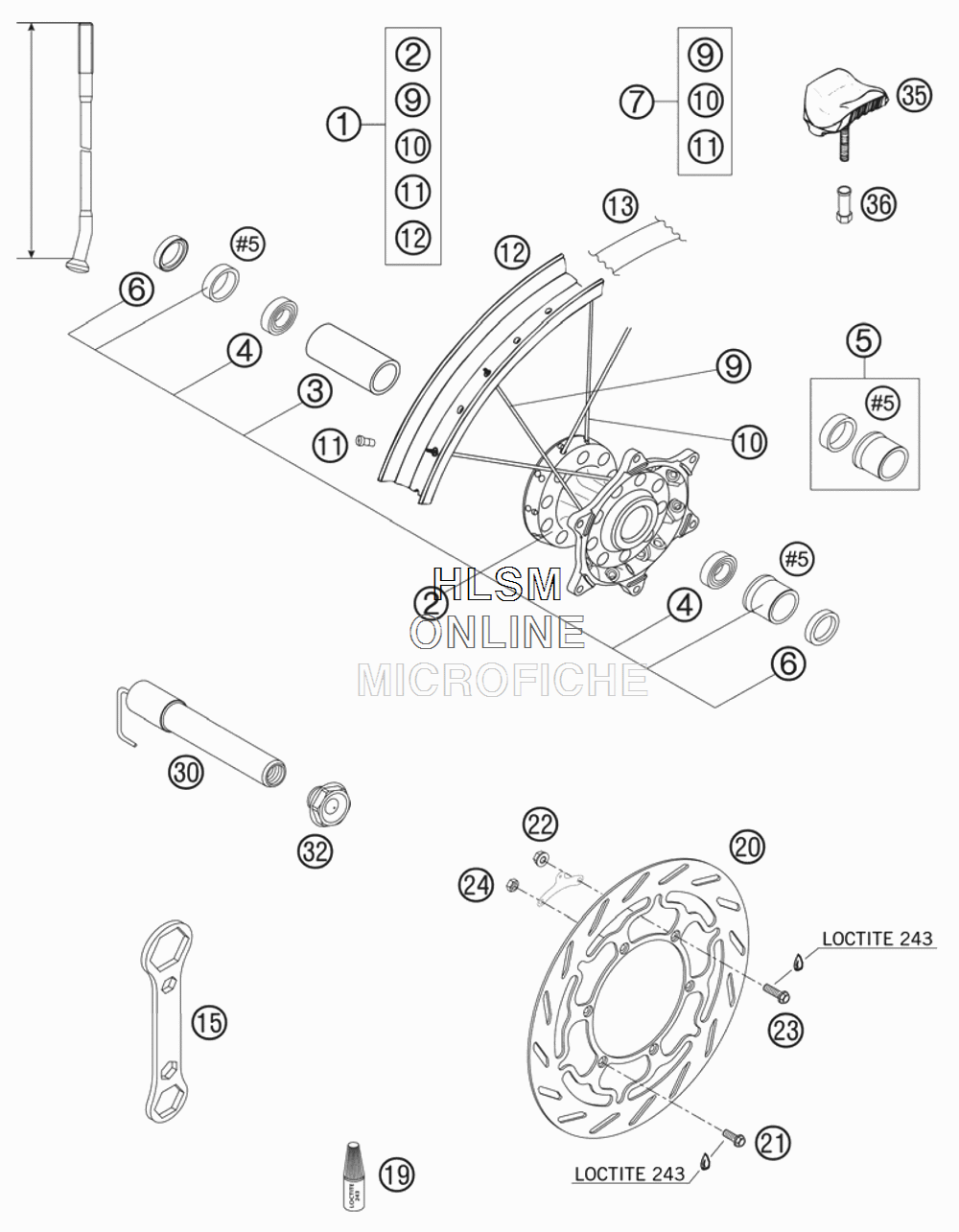

FRONT WHEEL для Ktm 660 RALLYE FACTORY REPL. - 2007 года выпуска
-
№АртикулНазвание
-
158509010000 FRONT WHEEL CPL. RALLYFRONT WHEEL CPL. RALLY
-
258509009000 FRONT HUB MILLED RALLYFRONT HUB MILLED RALLY
-
358509011000 BEAR.SPACER BUSHINGBEAR.SPACER BUSHING
-
40625069068 GR.BALL BEAR.6906 DDU2CG23S6NMGR.BALL BEAR.6906 DDU2CG23S6NM
-
558509013044 SPACER BUSHINGS SET FR.WHEEL 2 PIECES (LEFT+RIGHT)SPACER BUSHINGS SET FR.WHEEL 2 PIECES (LEFT+RIGHT)
-
60760354771 SHAFT SEAL RING 35X47X7 TCSHAFT SEAL RING 35X47X7 TC
-
758509069000 SPOKES CPL. RALLY 18 LE. + 18 RI. + 36 NIPPLESSPOKES CPL. RALLY 18 LE. + 18 RI. + 36 NIPPLES
-
958509071000 SPOKE L/S FR. WHEEL RALLYESPOKE L/S FR. WHEEL RALLYE
-
1058509171000 SPOKE R/S FR. WHEEL RALLYESPOKE R/S FR. WHEEL RALLYE
-
1158509072000 SPOKE NIPPLE FOR RALLYSPOKE NIPPLE FOR RALLY
-
1258509070100 FRONT RIM 1,60X21" 36H RALLYFRONT RIM 1,60X21" 36H RALLY
-
1350309073000 RIM BAND 21"RIM BAND 21"
-
1558509083000 KEY F. FRONT AXLE SCREWKEY F. FRONT AXLE SCREW
-
196899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
-
2058309060100 BRAKE DISK FRONT D=300MMBRAKE DISK FRONT D=300MM
-
210015060163 HH COLLAR SCREW M 6X16HH COLLAR SCREW M 6X16
-
2256509064100 SELF LOCKING NUT M6SELF LOCKING NUT M6
-
230015060203 HH COLLAR SCREW M 6X20HH COLLAR SCREW M 6X20
-
240439060003 HEXAGON NUT DIN0439-M 6 LOWHEXAGON NUT DIN0439-M 6 LOW
-
3058509081100 FRONT AXLE D=30MMFRONT AXLE D=30MM
-
3258509082000 COLLAR SCREW FRONT AXLECOLLAR SCREW FRONT AXLE
-
3551009100100 RIM LOCK VM1 (1,60")RIM LOCK VM1 (1,60")
-
3650310090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
