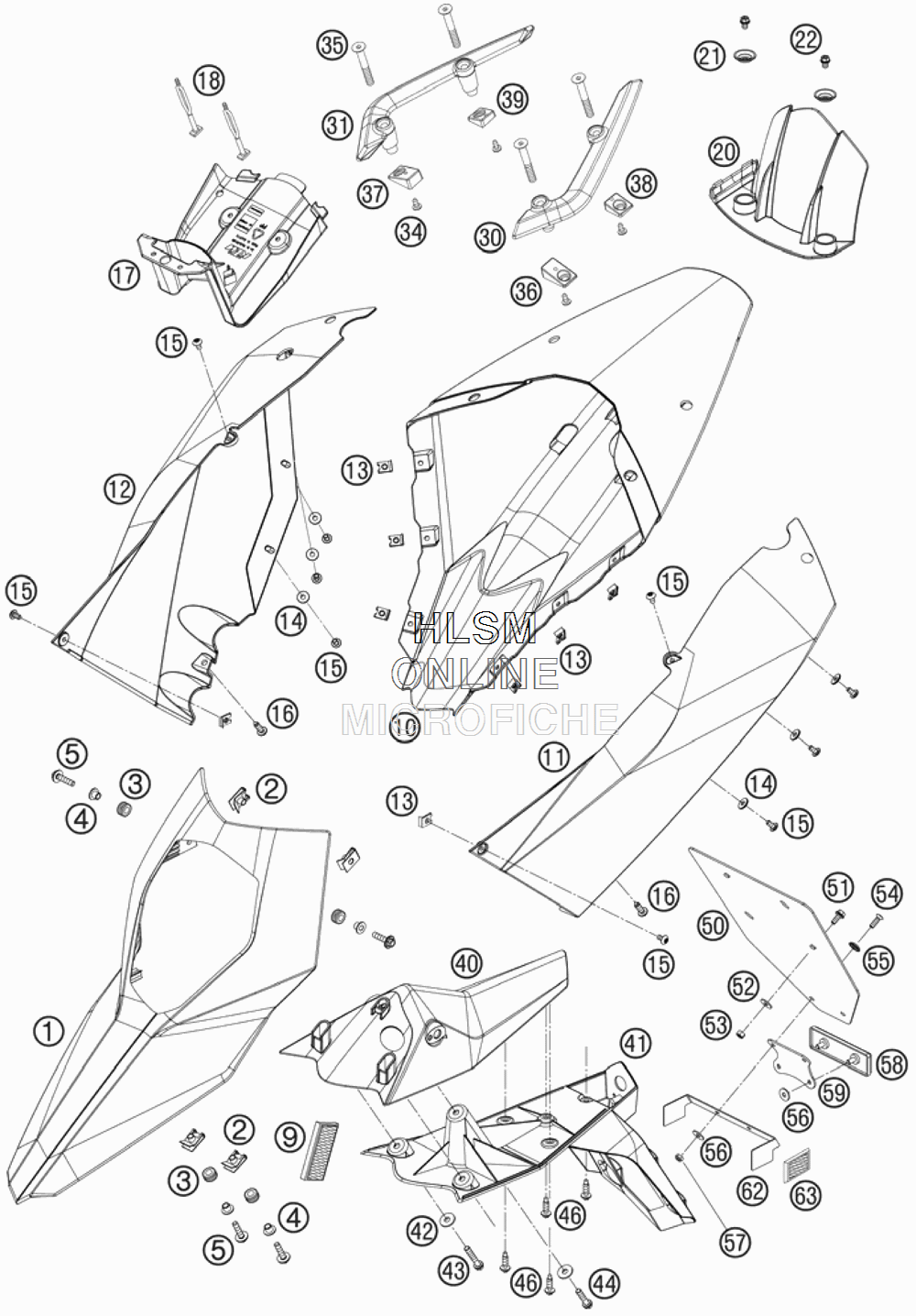

MASK FENDERS для Ktm 690 Supermoto Orange - 2007 года выпуска
-
№АртикулНазвание
-
17500800100004 HEAD LIGHT MASK ORANGEHEAD LIGHT MASK ORANGE
-
254603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
331008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
475014010050 COLLAR BUSHING 6,1X8,1X14X8COLLAR BUSHING 6,1X8,1X14X8
-
50014060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
960012080000 SIDE REFLECTOR YELLOWSIDE REFLECTOR YELLOW
-
107500801300033 REAR FENDER BLACK MATTREAR FENDER BLACK MATT
-
117500804100004 SIDE COVER L/S ORANGESIDE COVER L/S ORANGE
-
127500804200004 SIDE COVER R/S ORANGESIDE COVER R/S ORANGE
-
1354603048200 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
1475008023000 WASHER REAR-UT D=14MMWASHER REAR-UT D=14MM
-
1558605083014 SCREW M5X14 TORX 25SCREW M5X14 TORX 25
-
160017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
1775003075000 STORAGE COMPARTMENTSTORAGE COMPARTMENT
-
1850303018000 RUBBER L=145MMRUBBER L=145MM
-
2075004050000 MUD FLAPMUD FLAP
-
2172210079000 BUCKETBUCKET
-
220015060083 HH COLLAR SCREW M 6X8 WS=8HH COLLAR SCREW M 6X8 WS=8
-
3075012008000 HAND GRIP L/SHAND GRIP L/S
-
3175012009000 HAND GRIP R/SHAND GRIP R/S
-
340016050121 SCREW FOR PLASTIC 50X12SCREW FOR PLASTIC 50X12
-
350991080603 FLAT HEAD SCREW ISO10642 M8X60FLAT HEAD SCREW ISO10642 M8X60
-
3675003065000 SPACER SUB FRAME FRONT L/SSPACER SUB FRAME FRONT L/S
-
3775003066000 SPACER SUB FRAME FRONT R/SSPACER SUB FRAME FRONT R/S
-
3875003067000 SPACER SUB FRAME REAR L/SSPACER SUB FRAME REAR L/S
-
3975003068000 SPACER SUB FRAME REAR R/SSPACER SUB FRAME REAR R/S
-
4075008015010 NUMBER PLATE CARRIER TOPNUMBER PLATE CARRIER TOP
-
4175008015000 NUMBER PLATE CARRIERNUMBER PLATE CARRIER
-
420021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
430015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
440015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
460017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
5060012081200 LICENCE FITTINGLICENCE FITTING
-
510014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
520021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
530985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
540966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
5540006006000 WASHER 6MMWASHER 6MM
-
560125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
570985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
5858412080000 REFLECTOR RED LC4REFLECTOR RED LC4
-
5958412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
6262512081000 BRACKET SIDE REFLECTORBRACKET SIDE REFLECTOR
-
6316512180100 SIDE REFLECTOR RED REAR ONLY FOR USASIDE REFLECTOR RED REAR ONLY FOR USA
