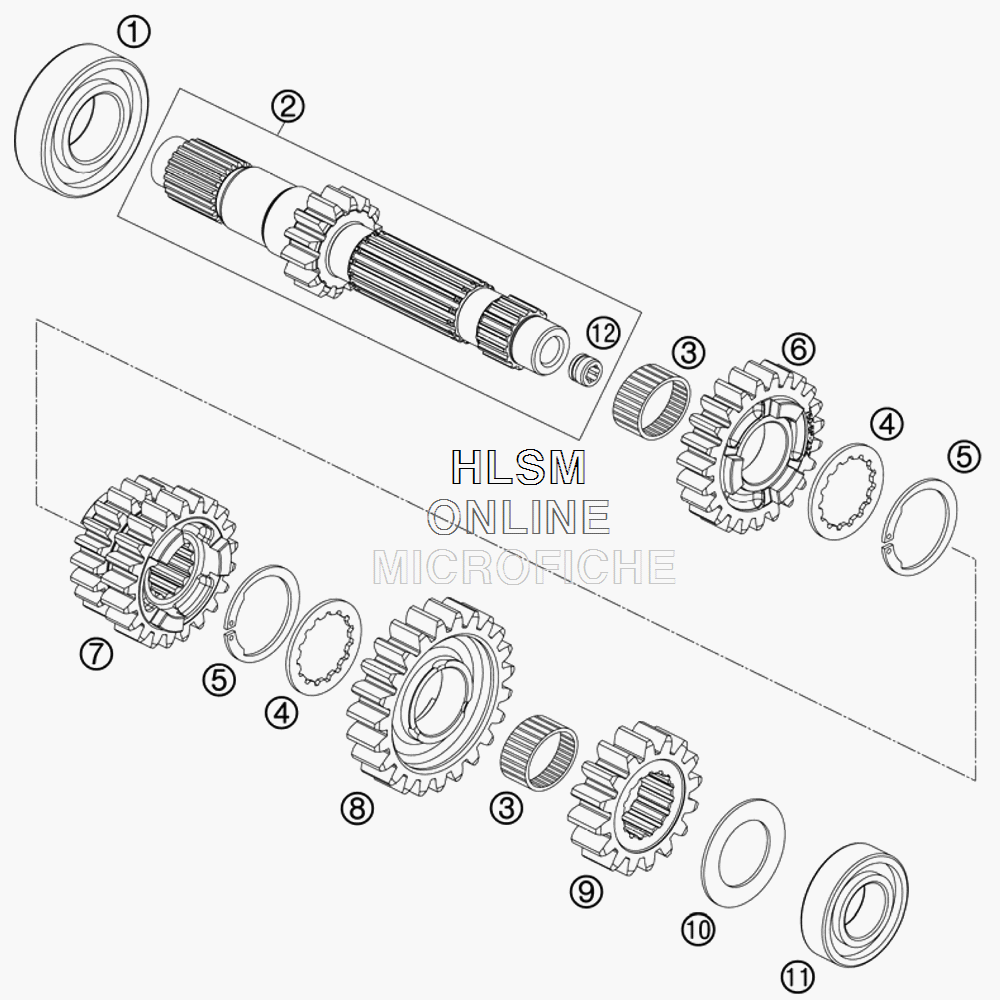

TRANSMISSION I - MAIN SHAFT для Ktm 690 Supermoto Orange - 2007 года выпуска
-
№АртикулНазвание
-
106252858161 BALL BEARING 62/28 C4 NBALL BEARING 62/28 C4 N
-
275033001100 MAIN SHAFTMAIN SHAFT
-
30405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
456533016300 STOP DISK 22,7 X 32 X 1,5STOP DISK 22,7 X 32 X 1,5
-
50417025000 CIRCLIP SW25CIRCLIP SW25
-
675033005000 IDLER 5. GEARIDLER 5. GEAR
-
775033003000 3/4TH GEAR MAINSHAFT3/4TH GEAR MAINSHAFT
-
875033006000 IDLER 6. GEARIDLER 6. GEAR
-
975033002000 SOLID GEAR 2.G.SOLID GEAR 2.G.
-
1059033080000 SHIM 20X32X1SHIM 20X32X1
-
110625060042 BALL BEARING 6004 TN9 C4BALL BEARING 6004 TN9 C4
-
1277333001160 GUIDE BUSHINGGUIDE BUSHING
