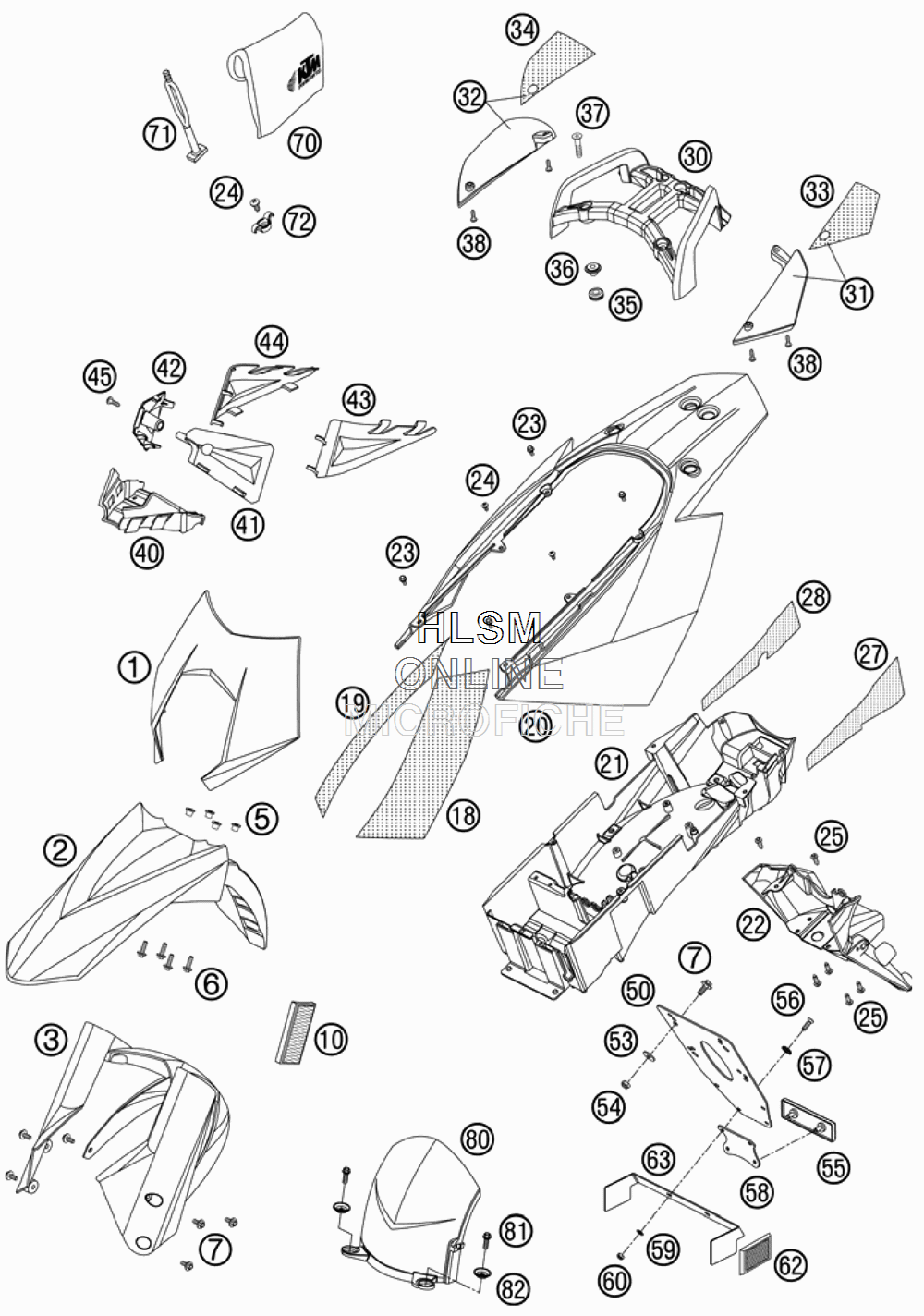

MASK FENDERS для Ktm 950 Supermoto Black - 2007 года выпуска
-
№АртикулНазвание
-
15860800100030A HEAD LIGHT MASK BLACKHEAD LIGHT MASK BLACK
-
26250801000030A FENDER FRONT BLACKFENDER FRONT BLACK
-
362501094000 SPLASH PROTECT.SPLASH PROTECT.
-
562508009000 COLLAR BUSHING 7,2X10X15X8,5COLLAR BUSHING 7,2X10X15X8,5
-
60014060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
70014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
1060012080000 SIDE REFLECTOR YELLOW USA+AUS+UK ONLYSIDE REFLECTOR YELLOW USA+AUS+UK ONLY
-
18*62508018150 THERM. PROT.FOIL L/S ABOVETHERM. PROT.FOIL L/S ABOVE
-
19*62508018160 THERM.PROT.FOIL R/S ABOVETHERM.PROT.FOIL R/S ABOVE
-
20*6250801800030C REAR END TOP PART BLACK WITH DECAL - VARNISHEDREAR END TOP PART BLACK WITH DECAL - VARNISHED
-
21*62508019200 REAR END LOWER PARTREAR END LOWER PART
-
2262508015000 NUMB.PLATE CARRIERNUMB.PLATE CARRIER
-
230015050123 HH COLLAR SCREW M 5X12 WS=8HH COLLAR SCREW M 5X12 WS=8
-
240016050121 SCREW FOR PLASTIC 50X12SCREW FOR PLASTIC 50X12
-
250017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
27*62508019250 THERMAL PROTECTON FOIL L/STHERMAL PROTECTON FOIL L/S
-
28*62508019460 THERM. PROT. FOIL R/S USATHERM. PROT. FOIL R/S USA
-
3062512010000 BAGGAGE RACKBAGGAGE RACK
-
3162512008000 COVER SILENCER L/SCOVER SILENCER L/S
-
3262512009000 COVER SILENCER R/SCOVER SILENCER R/S
-
33*62512008150 THERMAL PROTECTON FOILTHERMAL PROTECTON FOIL
-
34*62512009150 THERMAL PROTECTON FOIL R/STHERMAL PROTECTON FOIL R/S
-
3541001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
3660012008003 COLLAR BUSHING 8,2X12X28X9COLLAR BUSHING 8,2X12X28X9
-
370991080403 FLAT HEAD SCREW DIN7991-M 8X40FLAT HEAD SCREW DIN7991-M 8X40
-
380081500181 SCREW FOR PLASTIC D=5X18SCREW FOR PLASTIC D=5X18
-
4060003087000 SPLASH PROTECTOR FRAMESPLASH PROTECTOR FRAME
-
4162503085000 COVER FRAME L/S FRONTCOVER FRAME L/S FRONT
-
4262503086000 COVER FRAME R/S FRONTCOVER FRAME R/S FRONT
-
4362503083000 COVER FRAME L/S REARCOVER FRAME L/S REAR
-
4462503084000 COVER FRAME R/S REARCOVER FRAME R/S REAR
-
450081500181 SCREW FOR PLASTIC D=5X18SCREW FOR PLASTIC D=5X18
-
50*60012081200 LICENCE FITTINGLICENCE FITTING
-
530021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
540985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
5558412080000 REFLECTOR RED LC4REFLECTOR RED LC4
-
560966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
5740006006000 WASHER 6MMWASHER 6MM
-
5858412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
590125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
600985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
6216512180100 SIDE REFLECTOR RED REARSIDE REFLECTOR RED REAR
-
6362512081000 BRACKET SIDE REFLECTORBRACKET SIDE REFLECTOR
-
7061029099000 TOOL SET 950/990TOOL SET 950/990
-
7150303018000 RUBBER L=145MMRUBBER L=145MM
-
7262508021000 SUPPORT TOOL SETSUPPORT TOOL SET
-
8061008014000 SPLASH PROTECT.SPLASH PROTECT.
-
810015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
8272210079000 BUCKETBUCKET
