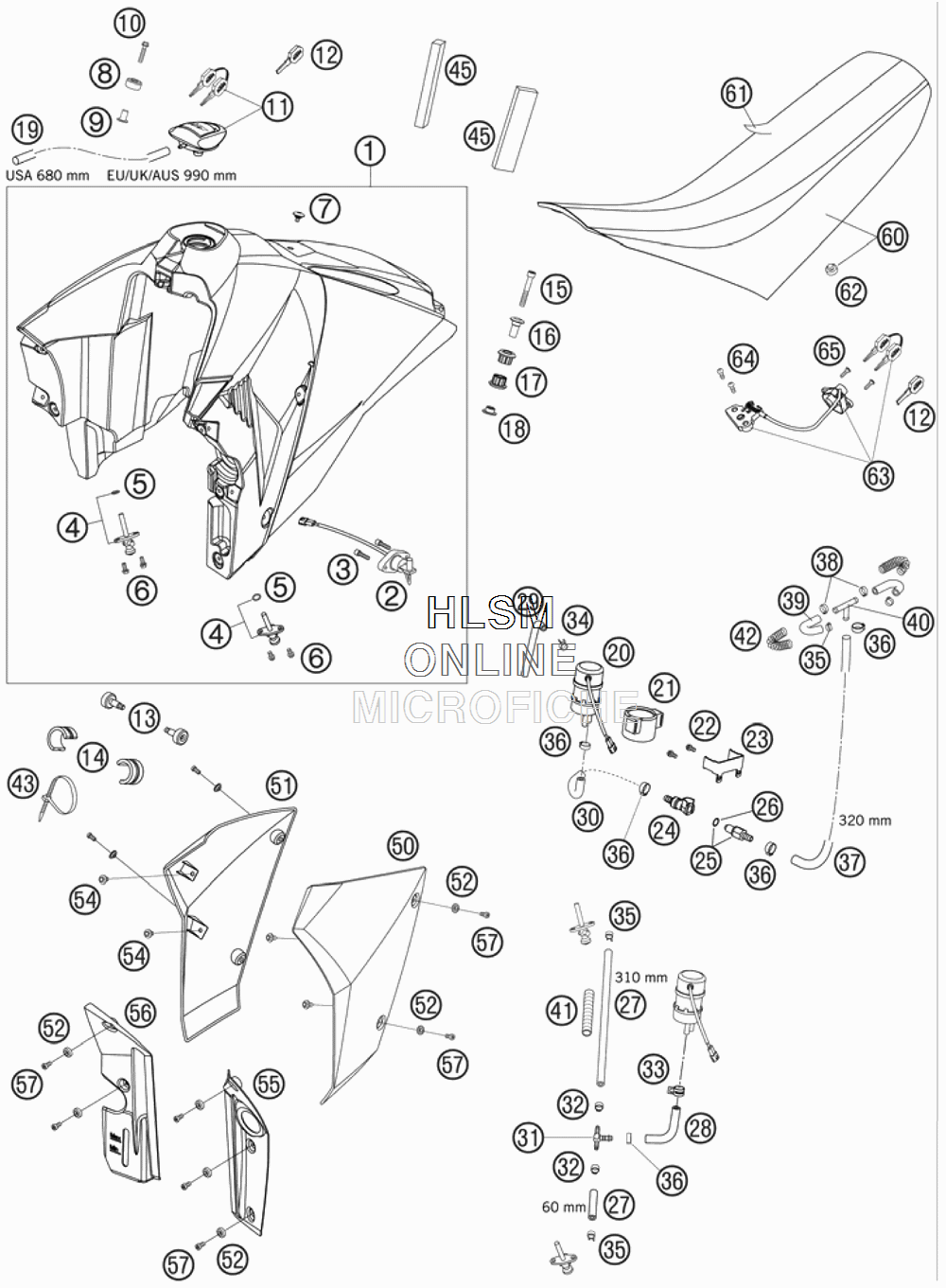

TANK SEAT COVER для Ktm 950 Supermoto Black - 2007 года выпуска
-
№АртикулНазвание
-
1*6250701303333B FUEL TANK CPL. MATT BLACK WITH DECALFUEL TANK CPL. MATT BLACK WITH DECAL
-
258207080100 GAS-LEVEL SENSOR ADV.GAS-LEVEL SENSOR ADV.
-
30912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
458507003000 FUEL COCK CPL. SMALL RALLYEFUEL COCK CPL. SMALL RALLYE
-
555007006200 O-RING 11X1,8 NBR 70O-RING 11X1,8 NBR 70
-
60015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
758407011100 SCREW FOR SEAT M6X11,5/8SCREW FOR SEAT M6X11,5/8
-
850307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
962503009000 COLLAR BUSHING 9,5X18X19,8X1,5COLLAR BUSHING 9,5X18X19,8X1,5
-
100015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
1158407008100 TANK PLUG LC4 USATANK PLUG LC4 USA
-
1240011166100 KEY BLANK LC4/DUKE/LC8KEY BLANK LC4/DUKE/LC8
-
1362507026100 SPECIAL SCREW M8SPECIAL SCREW M8
-
1461007014000 SPACER FUEL TANKSPACER FUEL TANK
-
150912080503 AH SCREW DIN912 M8X50AH SCREW DIN912 M8X50
-
1660007060000 BEARING BUSHING OUTSIDEBEARING BUSHING OUTSIDE
-
1760007065000 TANK RUBBER BUSHINGTANK RUBBER BUSHING
-
1862507061000 BEARING BUSHING INSIDEBEARING BUSHING INSIDE
-
1960007026001 HOSE NBR 5,4X9,4 PER METERHOSE NBR 5,4X9,4 PER METER
-
2060012088100 FUEL PUMPFUEL PUMP
-
2160012088050 FUEL PUMP HOLDERFUEL PUMP HOLDER
-
220015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
2362512071000 SUPPORT FUEL PUMPSUPPORT FUEL PUMP
-
245850701050030 CLUTCH CPC BLACKCLUTCH CPC BLACK
-
255850701030030 PLUG CPC BLACKPLUG CPC BLACK
-
2658507012000 O-RING VITON F. PLUG CPCO-RING VITON F. PLUG CPC
-
2760007116001 HOSE 6X12 PER METERHOSE 6X12 PER METER
-
2862507016070 FUEL HOSEFUEL HOSE
-
2950307016000 FUEL PREFORMED HOSEFUEL PREFORMED HOSE
-
3062507016060 FUEL HOSEFUEL HOSE
-
3160007015100 T-CONNECTOR 6-6-8 MMT-CONNECTOR 6-6-8 MM
-
32*58007117200 OETIKER HOSE CLAMP 13,3MMOETIKER HOSE CLAMP 13,3MM
-
3300049140121 CLAMP STD DN14CLAMP STD DN14
-
3458007117000 YDNAC-CLAMP 10107 10MMYDNAC-CLAMP 10107 10MM
-
3558031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
3600050153706 VARIABLE ONE-EAR CLAMP 15,3MMVARIABLE ONE-EAR CLAMP 15,3MM
-
3760007016001 HOSE 7,5X13,5 PER METERHOSE 7,5X13,5 PER METER
-
3800050140706 VARIABLE ONE-EAR CLAMP 14,0MMVARIABLE ONE-EAR CLAMP 14,0MM
-
3960007016000 FUEL PREFORMED HOSEFUEL PREFORMED HOSE
-
4060007015000 T-CONNECTOR 8MMT-CONNECTOR 8MM
-
4162507016050 THERMAL PROTECTION L=105MMTHERMAL PROTECTION L=105MM
-
4260007016050 PROTECTION SPRING FUEL HOSEPROTECTION SPRING FUEL HOSE
-
4344011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
4562507033000 FOAM 150X35X15FOAM 150X35X15
-
50*6250805000030B SPOILER L/S BLACK WITH DECAL - VARNISHEDSPOILER L/S BLACK WITH DECAL - VARNISHED
-
51*6250805100030B SPOILER R/S BLACK WITH DECAL - VARNISHEDSPOILER R/S BLACK WITH DECAL - VARNISHED
-
5260008045000 SPECIAL WASHER D=16,5MMSPECIAL WASHER D=16,5MM
-
540014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
5562508070000 COVER FUEL TANK L/SCOVER FUEL TANK L/S
-
5662508071000 COVER FUEL TANK R/SCOVER FUEL TANK R/S
-
570012060123 AH SCREW DIN6912 M6X12AH SCREW DIN6912 M6X12
-
6062507040000 SEATSEAT
-
6162507040050 SEAT COVERSEAT COVER
-
6261007040010 DISTANCE RUBBER SEATDISTANCE RUBBER SEAT
-
6362507050000 SEAT LOCKSEAT LOCK
-
640738060181 COU.SUNK SCR. AH ISO7380 M6X18COU.SUNK SCR. AH ISO7380 M6X18
-
650081500181 SCREW FOR PLASTIC D=5X18SCREW FOR PLASTIC D=5X18
