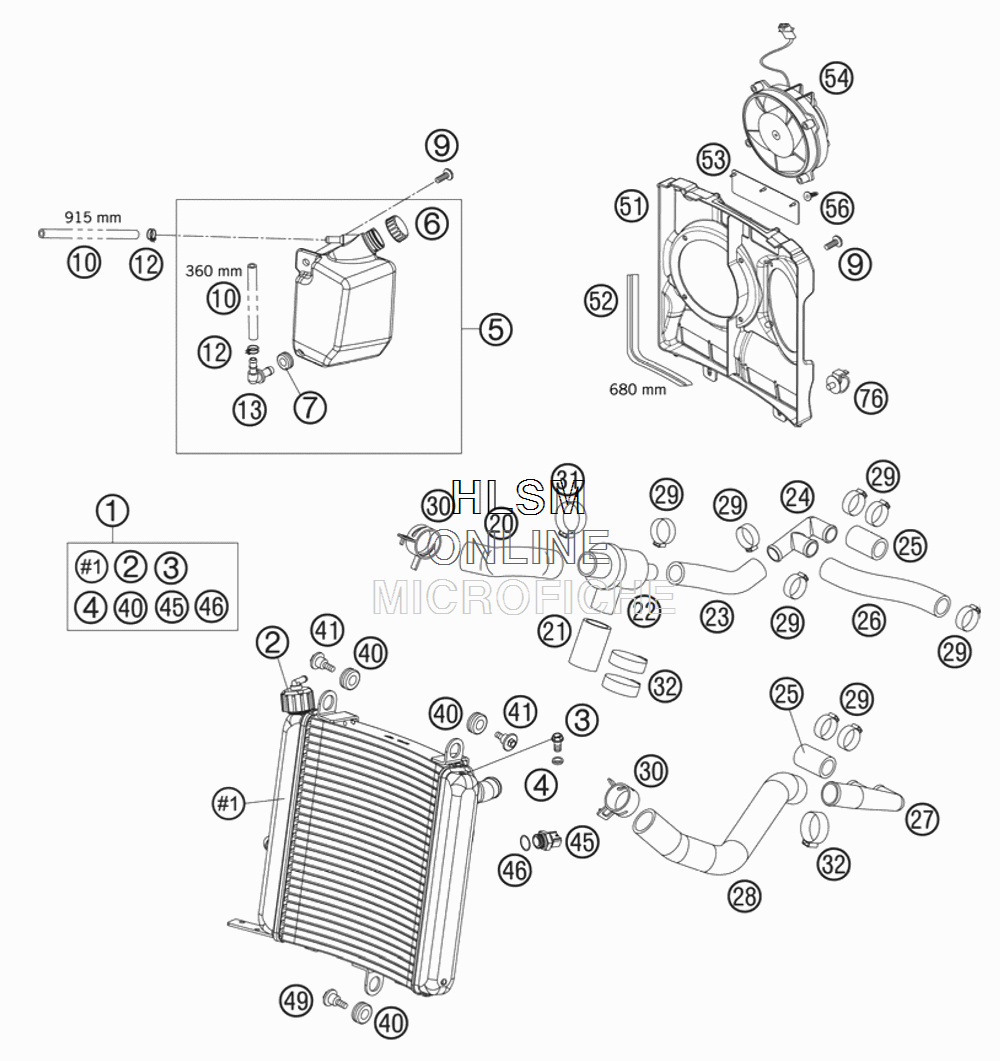

COOLING SYSTEM для Ktm 950 Supermoto Orange - 2007 года выпуска
-
№АртикулНазвание
-
162535010000 RADIATOR 950 SMRADIATOR 950 SM
-
245135009000 RADIATOR CAP 50 LCRADIATOR CAP 50 LC
-
30015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
40125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
562535065000 WATER EXPANSION TANKWATER EXPANSION TANK
-
660035066000 PLUG F. EXPANSION TANKPLUG F. EXPANSION TANK
-
760035069000 RUBBER GROMMET 6X9X13MMRUBBER GROMMET 6X9X13MM
-
90014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
1060035067001 HOSE 6X10 EPDMHOSE 6X10 EPDM
-
1258007117000 YDNAC-CLAMP 10107 10MMYDNAC-CLAMP 10107 10MM
-
1360035068000 ANGLE CONNECTION EXPANS. TANKANGLE CONNECTION EXPANS. TANK
-
2062535031000 RADIATOR HOSERADIATOR HOSE
-
2160035030000 RADIATOR HOSE THERM./PUMPRADIATOR HOSE THERM./PUMP
-
2260035017000 THERMOSTAT 75° CPL. W. CASETHERMOSTAT 75° CPL. W. CASE
-
2362535025000 RADIATOR HOSE THERM./DISTR.RADIATOR HOSE THERM./DISTR.
-
2460035019000 DISTRIBUTOR R/S 18/18/18MMDISTRIBUTOR R/S 18/18/18MM
-
2560035026000 RADIATOR HOSE CYL./DISTR.RADIATOR HOSE CYL./DISTR.
-
2660035027000 RADIATOR HOSE DISTR./DISTR.RADIATOR HOSE DISTR./DISTR.
-
2760035028000 DISTRIBUTOR L/S 18/18/25MMDISTRIBUTOR L/S 18/18/25MM
-
2862535024000 RADIATOR HOSERADIATOR HOSE
-
2900050271708 VARIABLE ONE-EAR CLAMP 27,1MMVARIABLE ONE-EAR CLAMP 27,1MM
-
3000049320121 CLAMP STD DN32CLAMP STD DN32
-
3100050346706 VARIABLE ONE-EAR CLAMP 34,6MMVARIABLE ONE-EAR CLAMP 34,6MM
-
3200050331706 VARIABLE ONE-EAR CLAMP 33,1MMVARIABLE ONE-EAR CLAMP 33,1MM
-
4041001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
4160035001000 SCREW RADIATOR BRACKET M6SCREW RADIATOR BRACKET M6
-
4560035045000 THERMOSWITCH LC8 102DGTHERMOSWITCH LC8 102DG
-
460770017015 O-RING 17X1,5 NB75O-RING 17X1,5 NB75
-
4960038083000 SCREW OIL TANK FIXINGSCREW OIL TANK FIXING
-
5162535044000 FAN COWLFAN COWL
-
5258312085100 EDGE PROTECTOR PER METEREDGE PROTECTOR PER METER
-
5358435044050 FAN FLAP RUBBER LC4FAN FLAP RUBBER LC4
-
5458435041000 FAN CPL. 12V LC4FAN CPL. 12V LC4
-
560020050163 EJOT SCREW K50X16 1451EJOT SCREW K50X16 1451
-
7658111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
