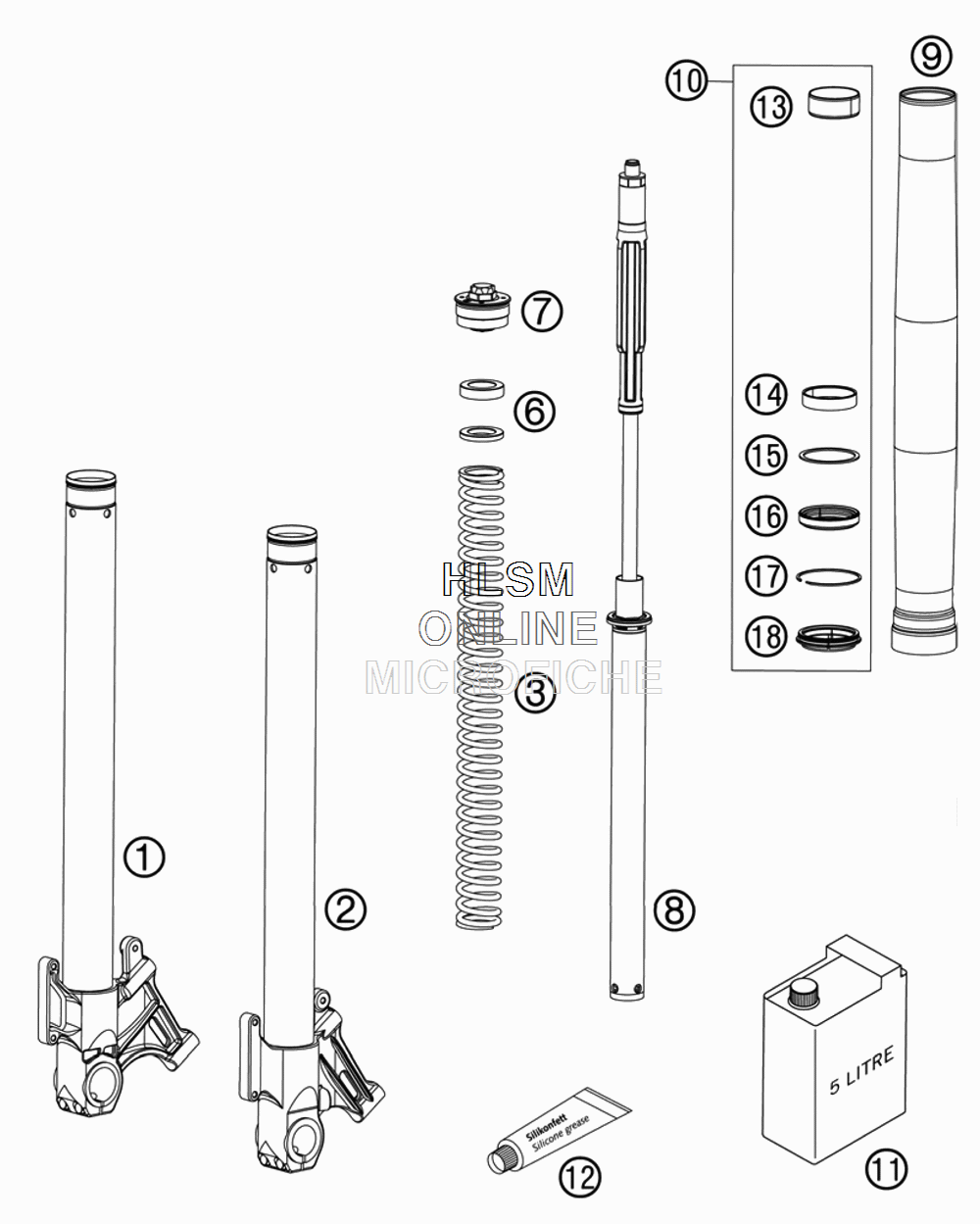

FORK LEGS для Ktm 950 Supermoto Orange - 2007 года выпуска
-
№АртикулНазвание
-
148600482S1 AXLE CLAMP R/S CPL.AXLE CLAMP R/S CPL.
-
248600483S1 AXLE CLAMP L/S CPL.AXLE CLAMP L/S CPL.
-
391410044S SPRING C=5,6 L=450 D=5,5SPRING C=5,6 L=450 D=5,5
-
648600036 SPACER 42X26,5X2,5SPACER 42X26,5X2,5
-
648600037 SPACER 42X26,5X5SPACER 42X26,5X5
-
648600053 SPACER 42X26,5X1,5SPACER 42X26,5X1,5
-
748600431S PRE-LOAD ADJ. CPL. M51X1,5PRE-LOAD ADJ. CPL. M51X1,5
-
848600502S CARTRIDGE CPL.CARTRIDGE CPL.
-
948600484 OUTER TUBE L=500MM D=54/60OUTER TUBE L=500MM D=54/60
-
10R14011 REPAIR-KIT GASKETREPAIR-KIT GASKET
-
1148600401S1 FORK OIL SAE 5FORK OIL SAE 5
-
12T511 SILICONE GREASE F. DUST STRISILICONE GREASE F. DUST STRI
-
12T511 SILICONE GREASE F. DUST STRISILICONE GREASE F. DUST STRI
-
1348600428 DU-BUSH D47XD49X20DDL02DU-BUSH D47XD49X20DDL02
-
1448600429 DU-BUSH D48XD52X12DDL02DU-BUSH D48XD52X12DDL02
-
1548600013 SUPPORT RING 50 X 57,6 X 1,5SUPPORT RING 50 X 57,6 X 1,5
-
1648600399 OIL SEAL RING 48X57,8X9,5OIL SEAL RING 48X57,8X9,5
-
1748600070 LOCK WASHER SB58LOCK WASHER SB58
-
1848600400 DUST CAP D=48 58,4X11,8DUST CAP D=48 58,4X11,8
