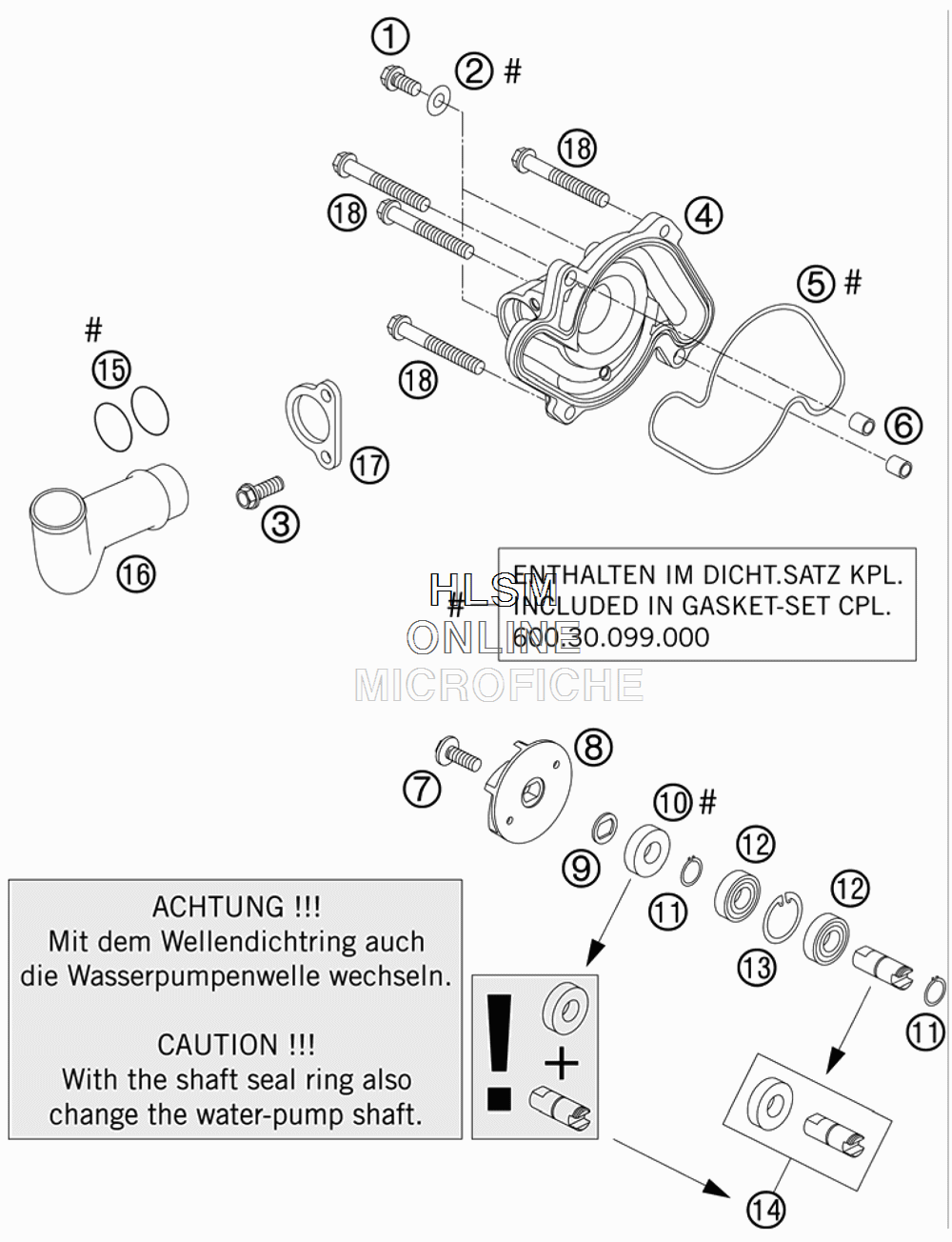

WATER PUMP для Ktm 950 Supermoto R USA - 2007 года выпуска
-
№АртикулНазвание
-
10015060103 HH COLLAR SCREW M 6X10HH COLLAR SCREW M 6X10
-
20603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
30015060163 HH COLLAR SCREW M 6X16HH COLLAR SCREW M 6X16
-
460035052000 WATER-PUMP COVERWATER-PUMP COVER
-
560035053000 WATER-PUMP GASKETWATER-PUMP GASKET
-
659030023000 DOWEL 6X8X11,5DOWEL 6X8X11,5
-
70014060153 HH COLLAR SCREW M 6X15HH COLLAR SCREW M 6X15
-
860035055100 WATER-PUMP WHEEL LC8WATER-PUMP WHEEL LC8
-
960035055150 FORM WASHER 16X1 NIROFORM WASHER 16X1 NIRO
-
10*0760123073 SHAFT SEAL RING 12X30X7 PTFESHAFT SEAL RING 12X30X7 PTFE
-
110471120010 CIRCLIP DIN0471-12X1CIRCLIP DIN0471-12X1
-
120625069010 GROOVED BALL BEARING 6901V C3GROOVED BALL BEARING 6901V C3
-
130472240120 CIRCLIP DIN472 D=24X1,2CIRCLIP DIN472 D=24X1,2
-
14*60035054044 WATER PUMP SHAFT W/ SEAL RINGWATER PUMP SHAFT W/ SEAL RING
-
150770250030 O-RING 25,00X3,00 NBR 70O-RING 25,00X3,00 NBR 70
-
1662535021000 ALUMINIUM TUBE WATER-PUMP CPL.ALUMINIUM TUBE WATER-PUMP CPL.
-
1760035021050 FIXING CLAMP WATER-P. TUBEFIXING CLAMP WATER-P. TUBE
-
180015060603 HH COLLAR SCREW M 6X60HH COLLAR SCREW M 6X60
