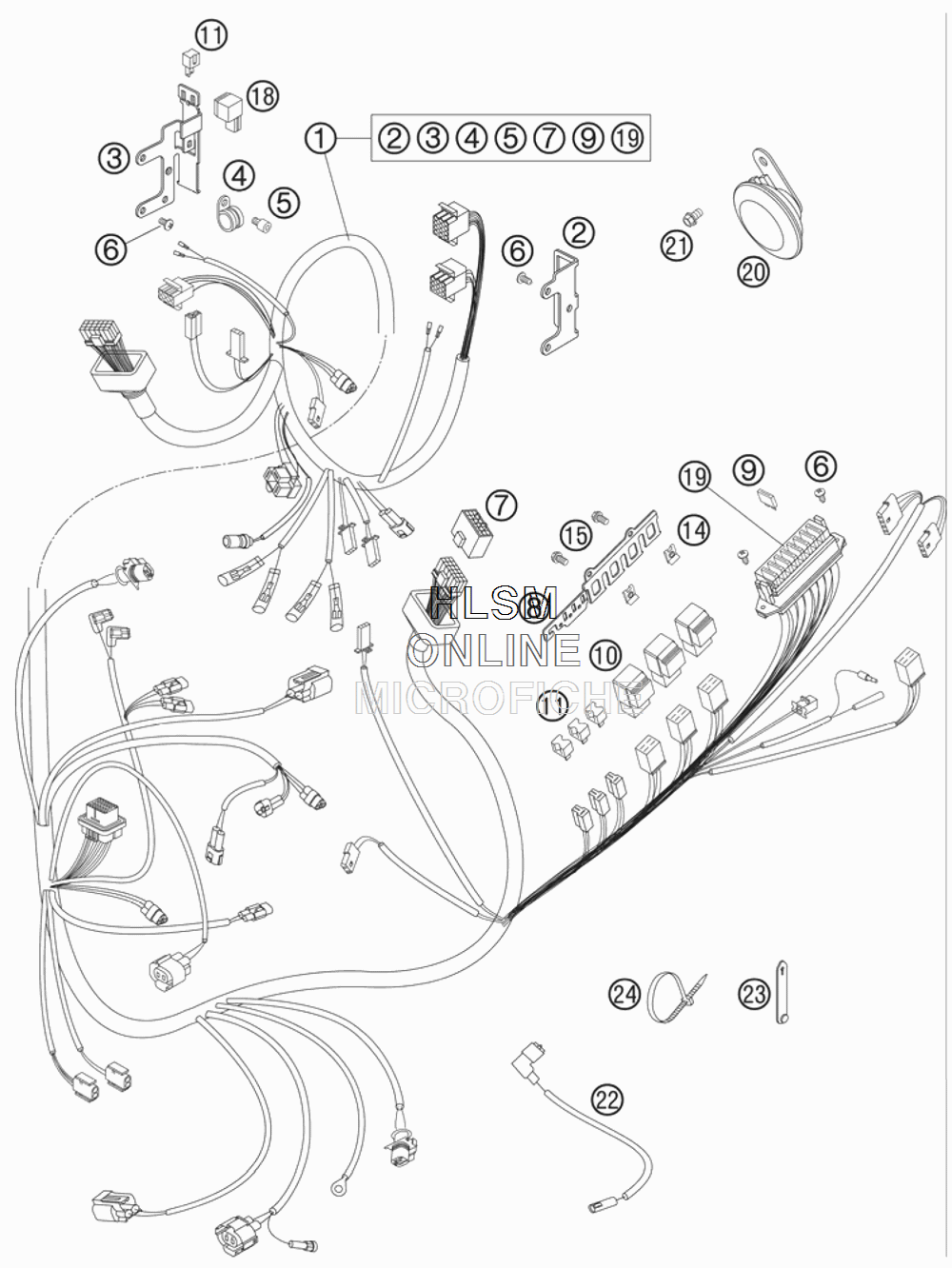

WIRING HARNESS для Ktm 950 Supermoto R USA - 2007 года выпуска
-
№АртикулНазвание
-
1*62511075100 MAIN WIRING HARNESS 950 SMMAIN WIRING HARNESS 950 SM
-
258611083000 SUPPORT BRACKET L/SSUPPORT BRACKET L/S
-
358611183000 SUPPORT BRACKET R/SSUPPORT BRACKET R/S
-
449007439000 CLAMP RSGU 15/12CLAMP RSGU 15/12
-
50912050103 AH SCREW DIN0912-M 5X10AH SCREW DIN0912-M 5X10
-
60016050121 SCREW FOR PLASTIC 50X12SCREW FOR PLASTIC 50X12
-
761011075020 DUMMY PLUG ALARM SYSTEMDUMMY PLUG ALARM SYSTEM
-
862511057050 BRACKET RELAYBRACKET RELAY
-
958011109110 FUSE 10 AFUSE 10 A
-
958011109115 FUSE 15 AFUSE 15 A
-
1058411057000 STARTER RELAYSTARTER RELAY
-
1158411096100 DIODE S3H-15DIODE S3H-15
-
1454603048200 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
150015050123 HH COLLAR SCREW M 5X12HH COLLAR SCREW M 5X12
-
1844611207200 FLASHER UNITFLASHER UNIT
-
1958511075510 FUSE-BOX COVERFUSE-BOX COVER
-
2062511060000 DC HORNDC HORN
-
210014060103 HH COLLAR SCREW M 6X10HH COLLAR SCREW M 6X10
-
2260011092000 OIL-PRESSURE SWITCH CABLEOIL-PRESSURE SWITCH CABLE
-
2360011093045 RUBBER CABLE TIE 45MMRUBBER CABLE TIE 45MM
-
2360011093075 RUBBER CABLE TIE 75MMRUBBER CABLE TIE 75MM
-
2444011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
2444011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
