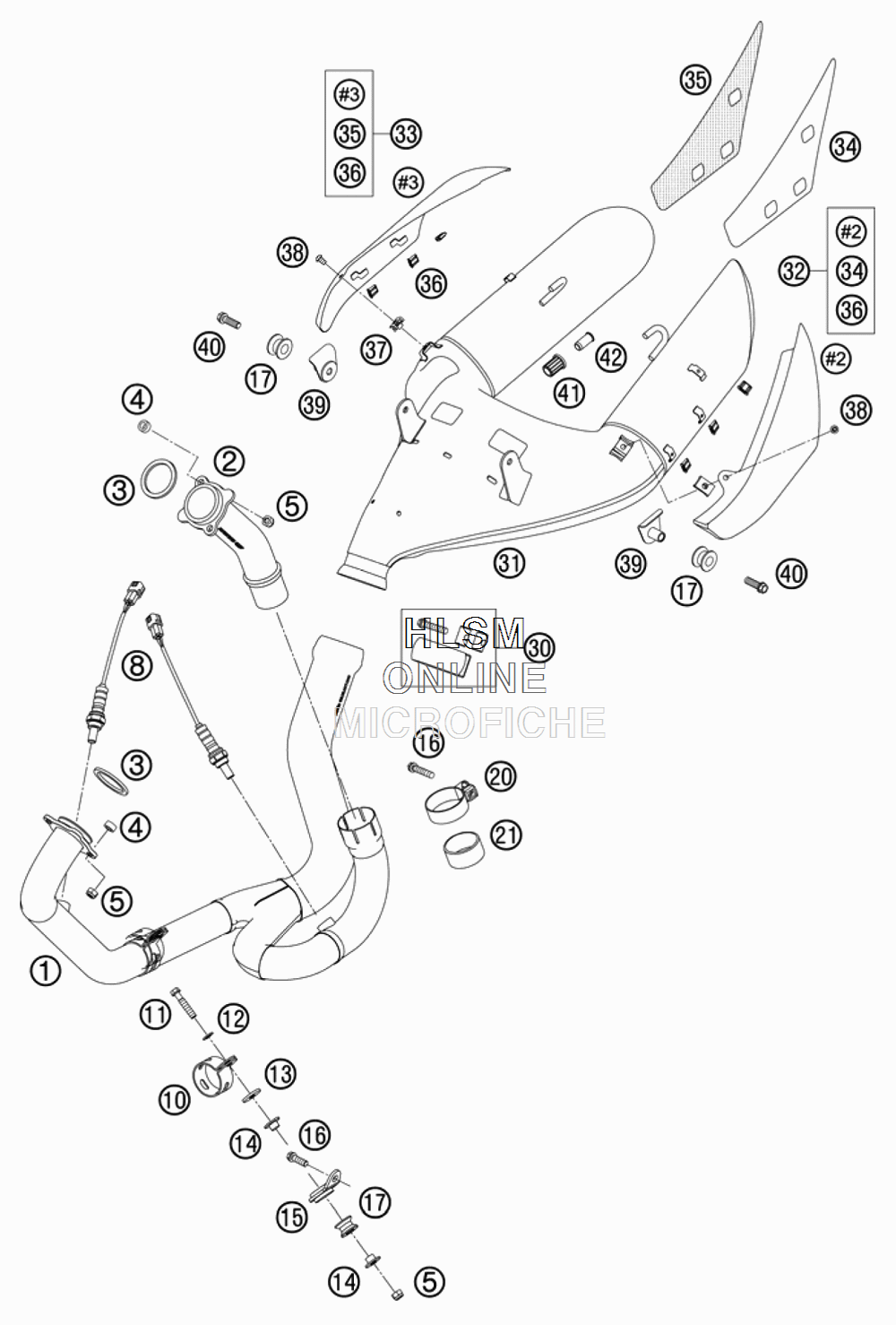

MANIFOLD SILENCER для Ktm 990 Superduke Orange - 2007 года выпуска
-
№АртикулНазвание
-
1*61105007000 EXHAUST PIPE FRONTEXHAUST PIPE FRONT
-
2*61105008000 EXHAUST PIPE REAREXHAUST PIPE REAR
-
361005005000 EXHAUST GASKETEXHAUST GASKET
-
461005009000 SPACER BUSH. 8,5X15X7,5SPACER BUSH. 8,5X15X7,5
-
551010086100 SELF LOCKING NUT M 8 CUSELF LOCKING NUT M 8 CU
-
861041090000 LAMBDA SENSORLAMBDA SENSOR
-
1061005007049 CLAMP EXHAUST PIPECLAMP EXHAUST PIPE
-
110015080403 HH COLLAR SCREW M 8X40 WS=10HH COLLAR SCREW M 8X40 WS=10
-
120021080003 WASHER DIN9021-A 8,4WASHER DIN9021-A 8,4
-
1351005067000 INSOLATE WASHER 8,5X28X3INSOLATE WASHER 8,5X28X3
-
1458405050065 COLLAR BUSH 8,5X12X23,5X10COLLAR BUSH 8,5X12X23,5X10
-
15*62505015050 EXHAUST PIPE BRACKET FRONTEXHAUST PIPE BRACKET FRONT
-
160015080353 HH COLLAR SCREW M 8X35 WS=10HH COLLAR SCREW M 8X35 WS=10
-
1754305068100 DAMP. COMPONENT SILICONE GREYDAMP. COMPONENT SILICONE GREY
-
20*61105051000 EXHAUST CLAMP 52,2MMEXHAUST CLAMP 52,2MM
-
2158405005001 GRAPHITRING 45X50X25GRAPHITRING 45X50X25
-
3061005052000 EXHAUST CLAMP CPL.EXHAUST CLAMP CPL.
-
31*61105183000 SILENCER USASILENCER USA
-
32*61005090120 THERMAL SHIELD SILENCER LE.THERMAL SHIELD SILENCER LE.
-
33*61005090130 THERMAL SHIELD SILENCER RE.THERMAL SHIELD SILENCER RE.
-
34*61005090122 THER.PROT.FOIL SILENCER L/STHER.PROT.FOIL SILENCER L/S
-
35*61005090132 THER.PROT. FOIL SILENCER R/STHER.PROT. FOIL SILENCER R/S
-
3661005091000 DAMP. COMPON. SILICONE GREYDAMP. COMPON. SILICONE GREY
-
3754603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
380738060101 COU.SUNK SCR. AH ISO7380 M6X10COU.SUNK SCR. AH ISO7380 M6X10
-
3961005083011 ANTI-ROTATION ELEMENT CPL. 05ANTI-ROTATION ELEMENT CPL. 05
-
400015080253 HH COLLAR SCREW M 8X25 WS=10HH COLLAR SCREW M 8X25 WS=10
-
4161005013000 RUBBER SILENCER SUPPORTRUBBER SILENCER SUPPORT
-
4261005014000 SLEEVE SILENCER SUPPORTSLEEVE SILENCER SUPPORT
