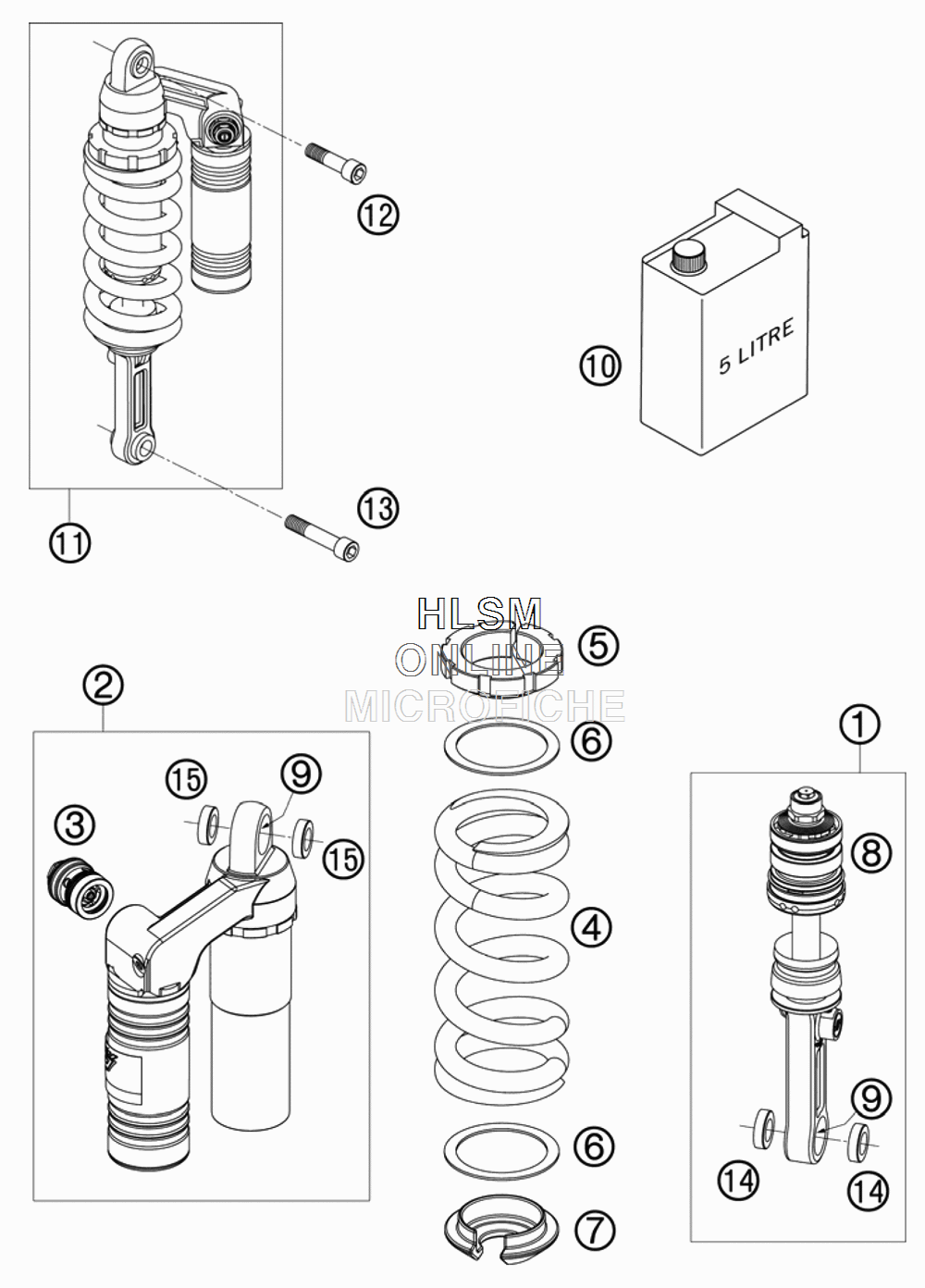

MONOSHOCK для Ktm 990 Superduke Orange - 2007 года выпуска
-
№АртикулНазвание
-
146180364S1 MOUNT EYE CPL.MOUNT EYE CPL.
-
246180367S1 MONOSHOCK TOPMONOSHOCK TOP
-
3*50180213S10 DCC-COMPR.DAMP.CONTROL CPL.DCC-COMPR.DAMP.CONTROL CPL.
-
4*91010077S SPRING (59) 160-185 D=13,5SPRING (59) 160-185 D=13,5
-
491010078S SPRING (59) 170-185 D 14SPRING (59) 170-185 D 14
-
491010079S SPRING (59) 180-185 D=14,0SPRING (59) 180-185 D=14,0
-
546180394S ADJUSTING NUT M52X1,5ADJUSTING NUT M52X1,5
-
650180410 INTERM.RING D=58INTERM.RING D=58
-
746180396 SPRING RETAINER H=15 D=28SPRING RETAINER H=15 D=28
-
8R15002 REPAIR-KIT GASKETREPAIR-KIT GASKET
-
9R15003 REPAIR KIT BEARINGSREPAIR KIT BEARINGS
-
10*50180342S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
-
11*15187C01 MONOSHOCK 990 SUPERDUKEMONOSHOCK 990 SUPERDUKE
-
1260004016000 SCREW M14X1,5 L=55MMSCREW M14X1,5 L=55MM
-
1360004017000 SCREW M14X1,5 L=73MMSCREW M14X1,5 L=73MM
-
1446180362 ADAPTOR BUSH KGW 14X32ADAPTOR BUSH KGW 14X32
-
1550180366 ADAPTOR BUSH KGW 14X24ADAPTOR BUSH KGW 14X24
