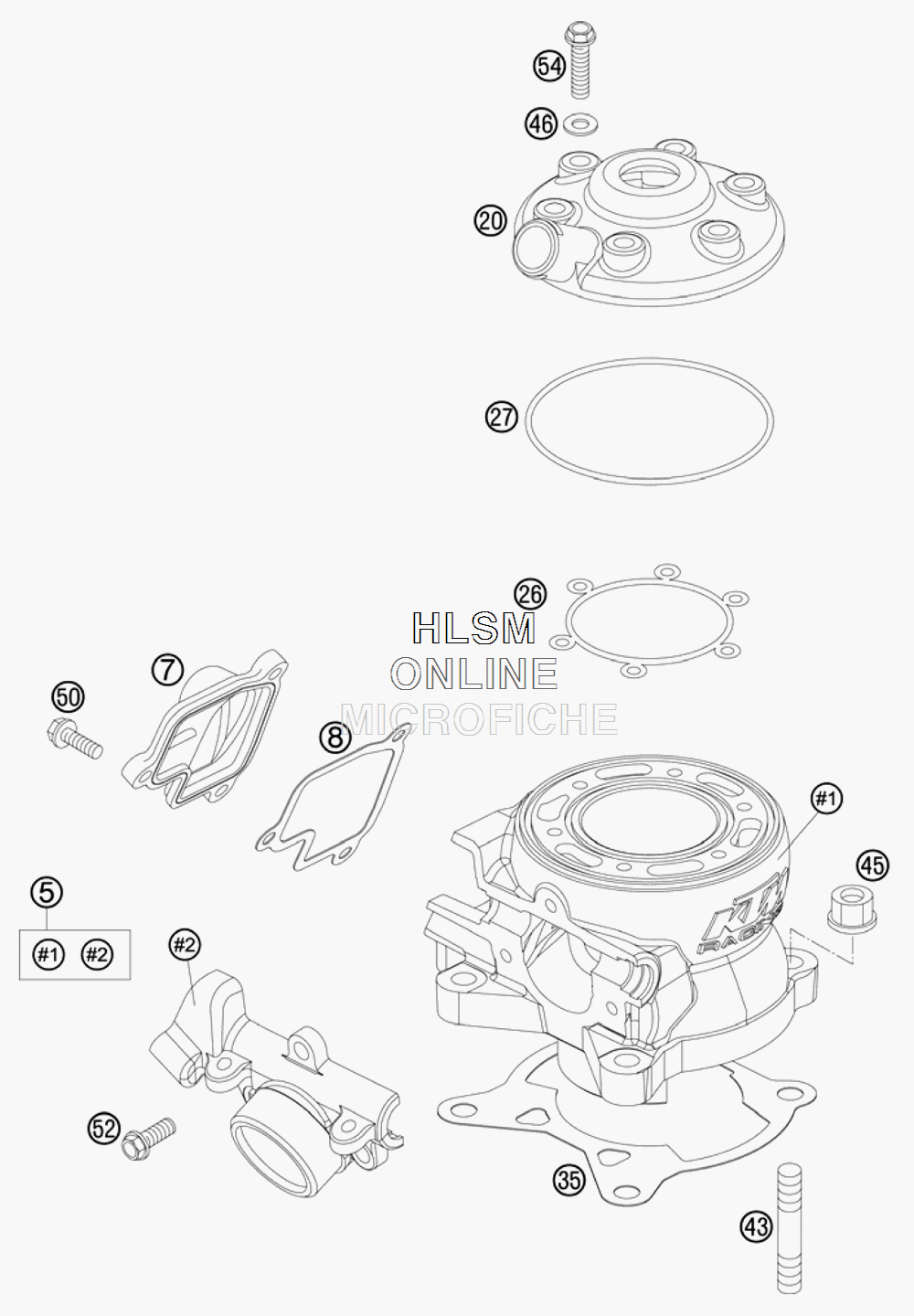

CYLINDER для Ktm 105 XC - 2008 года выпуска
-
№АртикулНазвание
-
547530005044 CYLINDER WITH FLANGECYLINDER WITH FLANGE
-
747037007000 CONTROL COVER 85 SXCONTROL COVER 85 SX
-
847037008000 GASKET FOR CONTROL COVERGASKET FOR CONTROL COVER
-
2047530006000 CYLINDER HEADCYLINDER HEAD
-
2647530037000 SEAL RING SILICONESEAL RING SILICONE
-
270770820020 O-RING 82X2 SILICONEO-RING 82X2 SILICONE
-
3547030035000 CYLINDER BASE GASKET 0,50MMCYLINDER BASE GASKET 0,50MM
-
3547030035020 CYLINDER BASE GASKET 0,20MMCYLINDER BASE GASKET 0,20MM
-
3547030035030 CYLINDER BASE GASKET 0,30MMCYLINDER BASE GASKET 0,30MM
-
430835080240 STUD DIN 0835-M 8X24STUD DIN 0835-M 8X24
-
4546030045000 COLLAR NUT M8COLLAR NUT M8
-
460603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
500015050123 HH COLLAR SCREW M 5X12HH COLLAR SCREW M 5X12
-
520015060163 HH COLLAR SCREW M 6X16HH COLLAR SCREW M 6X16
-
540015060253 HH COLLAR SCREW M 6X25HH COLLAR SCREW M 6X25
