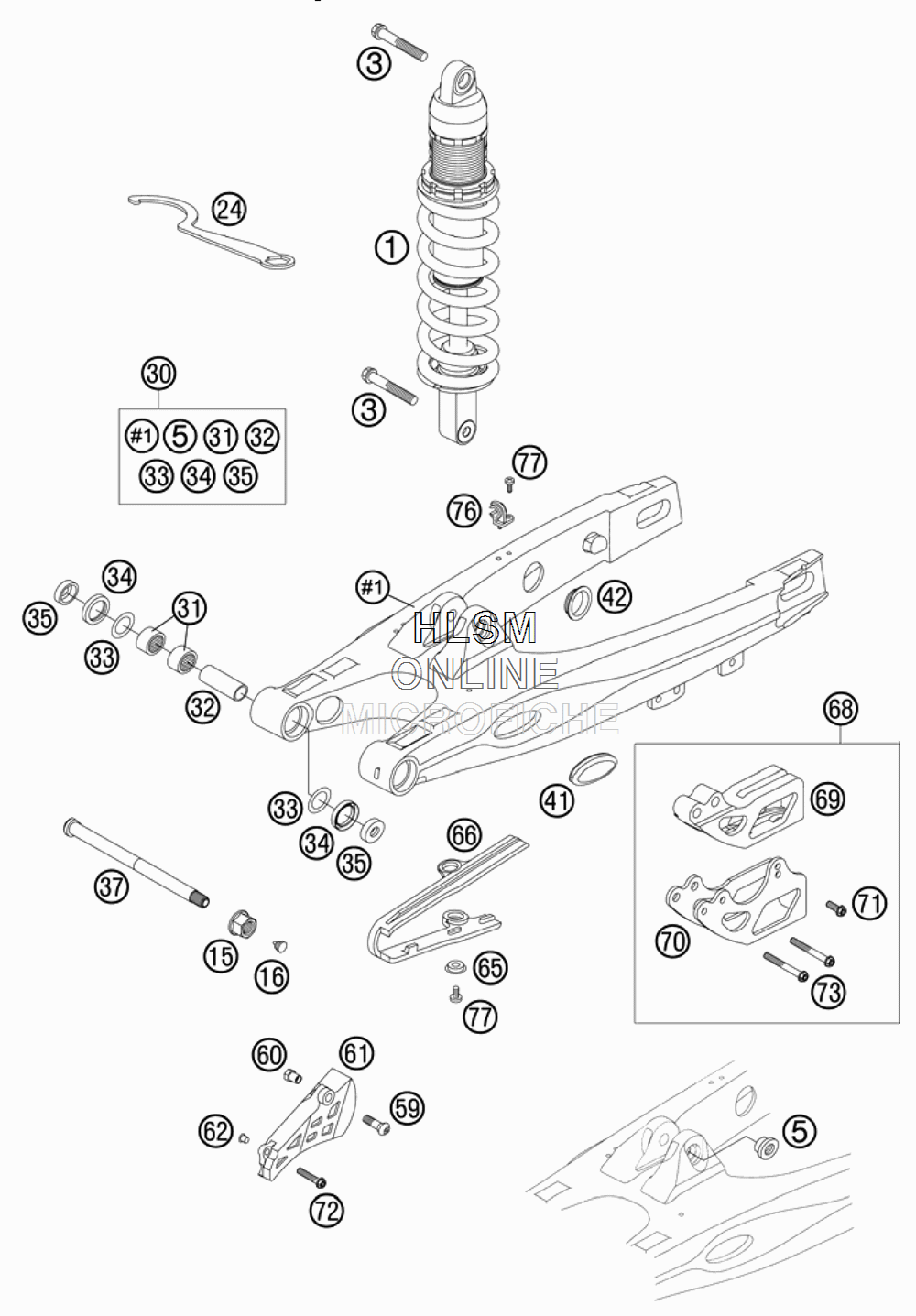

SWINGARM MONOSHOCK для Ktm 105 XC - 2008 года выпуска
-
№АртикулНазвание
-
115187D04 MONOSHOCK 85 / 105 XCMONOSHOCK 85 / 105 XC
-
30015120556S HH COLLAR M12X55HH COLLAR M12X55
-
550180105 THREADED BUSH M12 PDSTHREADED BUSH M12 PDS
-
1554603015000 SELF LOCKING NUT M14X1,5SELF LOCKING NUT M14X1,5
-
1654403135000 PLASTIC CAP SFL10PLASTIC CAP SFL10
-
2446012024000 HOOK WRENCH FOR SHOCK ABSORBERHOOK WRENCH FOR SHOCK ABSORBER
-
3047004030144 SWINGARM 85SX CPL.SWINGARM 85SX CPL.
-
3159004031000 NEEDLE BUSH HK2012VNEEDLE BUSH HK2012V
-
3250203081700 BUSHING SLEEVE 15X20X38,75BUSHING SLEEVE 15X20X38,75
-
3359033080000 SHIM 20X32X1SHIM 20X32X1
-
340760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
3554603090000 BUCKET F.SHAFTSEALRING 15X25X9BUCKET F.SHAFTSEALRING 15X25X9
-
3747004037000 SWINGARM BOLT 85 SXSWINGARM BOLT 85 SX
-
4158404041000 CLOSING COVER SWINGARM SMCLOSING COVER SWINGARM SM
-
4258404041100 CLOSING COVER ROUNDCLOSING COVER ROUND
-
5954510052100 SPROCKET SCREW-AH M8X26SPROCKET SCREW-AH M8X26
-
6047030060051 THREADED BUSH FOR CHAIN GUARDTHREADED BUSH FOR CHAIN GUARD
-
6147007061000 CHAIN GUARD 85 SXCHAIN GUARD 85 SX
-
6258314060050 SPACER BUSH. F. SPEEDOMET.BRA.SPACER BUSH. F. SPEEDOMET.BRA.
-
6572210079000 BUCKETBUCKET
-
6658404066000 CHAIN SLIDING GUARD SMCHAIN SLIDING GUARD SM
-
6854607069000 CHAIN GUIDE REAR CPL.CHAIN GUIDE REAR CPL.
-
6954607066100 CHAIN GUIDE REARCHAIN GUIDE REAR
-
7054607070144 RETAINING PLATE CPL.RETAINING PLATE CPL.
-
710025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
720025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
730025060506 HH COLLAR SCREW M6X50HH COLLAR SCREW M6X50
-
7654611076100 RETAIN.CLAMP FOR BRAKE HOSERETAIN.CLAMP FOR BRAKE HOSE
-
770009050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
