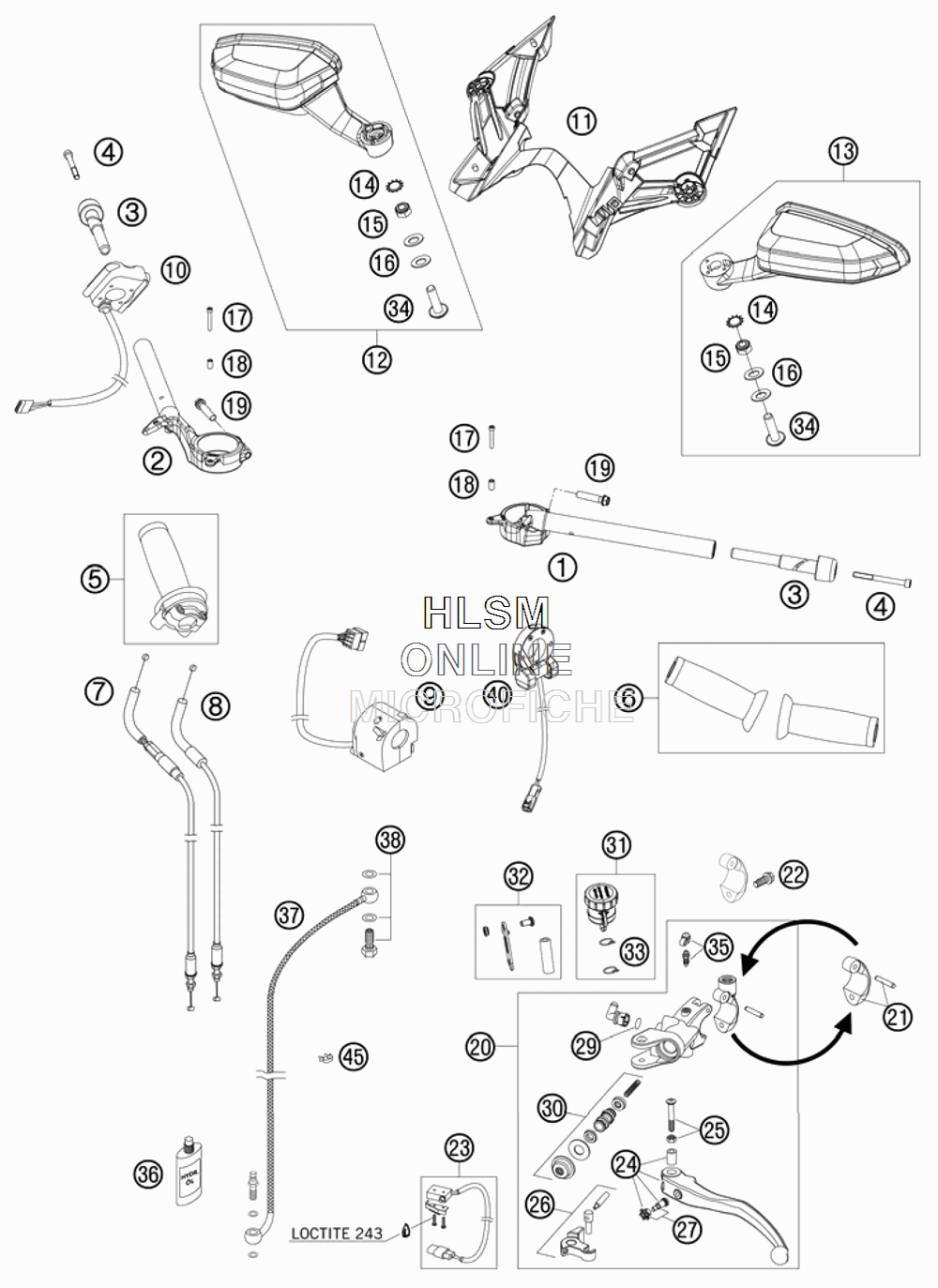

HANDLEBAR CONTROLS для Ktm 1190 RC8 - 2008 года выпуска
-
№АртикулНазвание
-
169002101000 CLIP-ON L/SCLIP-ON L/S
-
269002201000 CLIP-ON R/SCLIP-ON R/S
-
369002004000 VIBRATION ABSORBERVIBRATION ABSORBER
-
40912060653 AH SCREW DIN0912-M 6X65AH SCREW DIN0912-M 6X65
-
569002010000 THROTTLE GRIP CPL.THROTTLE GRIP CPL.
-
669002021000 GRIP-SET WITH OPEN ENDGRIP-SET WITH OPEN END
-
769002091000 THROTTLE CABLE OPENTHROTTLE CABLE OPEN
-
869002092000 THROTTLE CABLE CLOSETHROTTLE CABLE CLOSE
-
961011070000 LIGHT SWITCHLIGHT SWITCH
-
1058411074100 START-STOP SWITCH AD LC4START-STOP SWITCH AD LC4
-
1169012042000 MIRROR BRACKETMIRROR BRACKET
-
1269012041000 MIRROR R/S CPL. W. FLASHERMIRROR R/S CPL. W. FLASHER
-
1369012040000 MIRROR L/S CPL. W. FLASHERMIRROR L/S CPL. W. FLASHER
-
1469012040091 DISK SPRING 12,5X6,2X0,35DISK SPRING 12,5X6,2X0,35
-
1569012040080 ALUMINUM WASHERALUMINUM WASHER
-
160912060163 AH SCREW DIN0912-M 6X16AH SCREW DIN0912-M 6X16
-
170912050353 AH SCREW DIN912 M5X35AH SCREW DIN912 M5X35
-
1869002003000 DISTANCE BUSHING TRIPLE CLAMPDISTANCE BUSHING TRIPLE CLAMP
-
190025080356 HH COLLAR SCREW M8X35HH COLLAR SCREW M8X35
-
2061002030000 MASTER CYLINDER CPL.MASTER CYLINDER CPL.
-
2161002044100 CLAMP WITH PINCLAMP WITH PIN
-
220025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
2361011049000 CLUTCH SWITCHCLUTCH SWITCH
-
2461002031000 CLUTCH LEVER CPL.CLUTCH LEVER CPL.
-
2561002038000 LEVER SCREW CPL.LEVER SCREW CPL.
-
2661002056000 ROCKER CPL.ROCKER CPL.
-
2761002043000 ADJUSTING SCREW CPL.ADJUSTING SCREW CPL.
-
2961002051000 O-RING ANGLE PIECEO-RING ANGLE PIECE
-
3061002032000 REP.SET PISTON D=13REP.SET PISTON D=13
-
3161002055000 RESERVOIR CPL.RESERVOIR CPL.
-
3269032070044 BRACKET F. CLUTCH RES. CPL.RC8BRACKET F. CLUTCH RES. CPL.RC8
-
3358007117000 YDNAC-CLAMPYDNAC-CLAMP
-
3561002054000 BLEEDER SCREW WITH CAPBLEEDER SCREW WITH CAP
-
3650302036200 OIL FOR HYD. CLUTCH 75MLOIL FOR HYD. CLUTCH 75ML
-
3761032063000 CLUTCH PIPECLUTCH PIPE
-
3859032062000 HOLLOW SCREW + COPPER GASKETHOLLOW SCREW + COPPER GASKET
-
4069011071000 CONTROLLER F. INSTRUMENTSCONTROLLER F. INSTRUMENTS
-
4557013072000 WIRING HOLDER 12MMWIRING HOLDER 12MM
