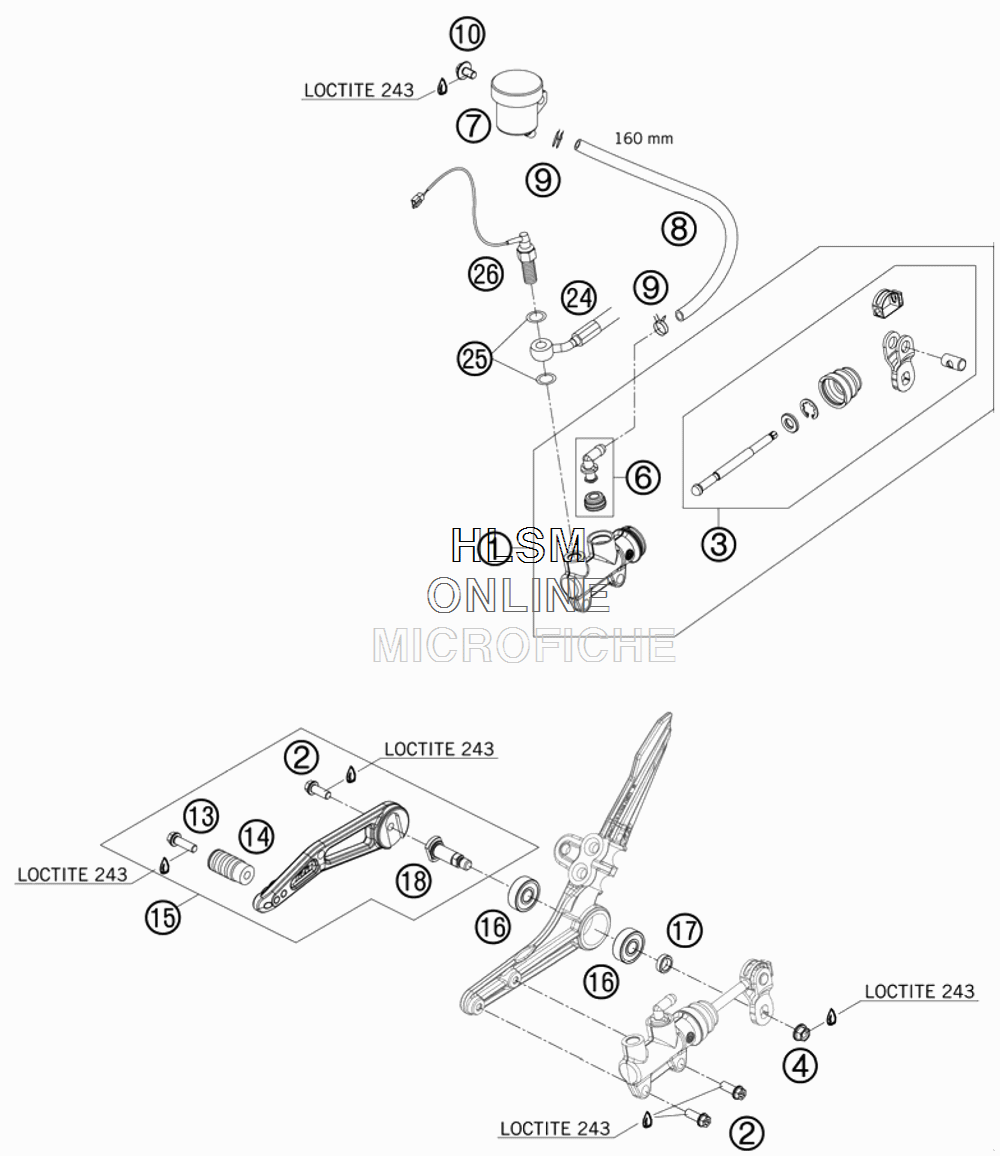

REAR BRAKE CONTROL для Ktm 1190 RC8 - 2008 года выпуска
-
№АртикулНазвание
-
169013060044 MAIN BRAKE CYLINDER REAR CPL.MAIN BRAKE CYLINDER REAR CPL.
-
20025060166S HH COLLAR SCREW M6X16 ISA 30HH COLLAR SCREW M6X16 ISA 30
-
369013062000 PUSH ROD SETPUSH ROD SET
-
449030028000 COLLAR NUT M8COLLAR NUT M8
-
654513155000 ANGLE PIECEANGLE PIECE
-
761013069000 RESERVOIR REAR CPL.RESERVOIR REAR CPL.
-
858007016101 HOSE FOR RESERVOIR 6X1,5HOSE FOR RESERVOIR 6X1,5
-
958007017000 YDNAC CLAMP 10101 (9MM)YDNAC CLAMP 10101 (9MM)
-
1069013099050 SCREW F. EXPANSION TANKSCREW F. EXPANSION TANK
-
130025060206S HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1458303060051 BRAKE LEVER PEDALBRAKE LEVER PEDAL
-
1569013050044 BRAKE LEVER CPL. RC8BRAKE LEVER CPL. RC8
-
160625060002 BALL BEARING SKF 6000-2RS1BALL BEARING SKF 6000-2RS1
-
1769013054000 SPACER F. BRAKE-LEV.-REDIRECT.SPACER F. BRAKE-LEV.-REDIRECT.
-
1869013051000 SHAFT F. BRAKE-LEVER-REDIRECT.SHAFT F. BRAKE-LEVER-REDIRECT.
-
2469013072000 BRAKE TUBE REARBRAKE TUBE REAR
-
250603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
2661011051000 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
