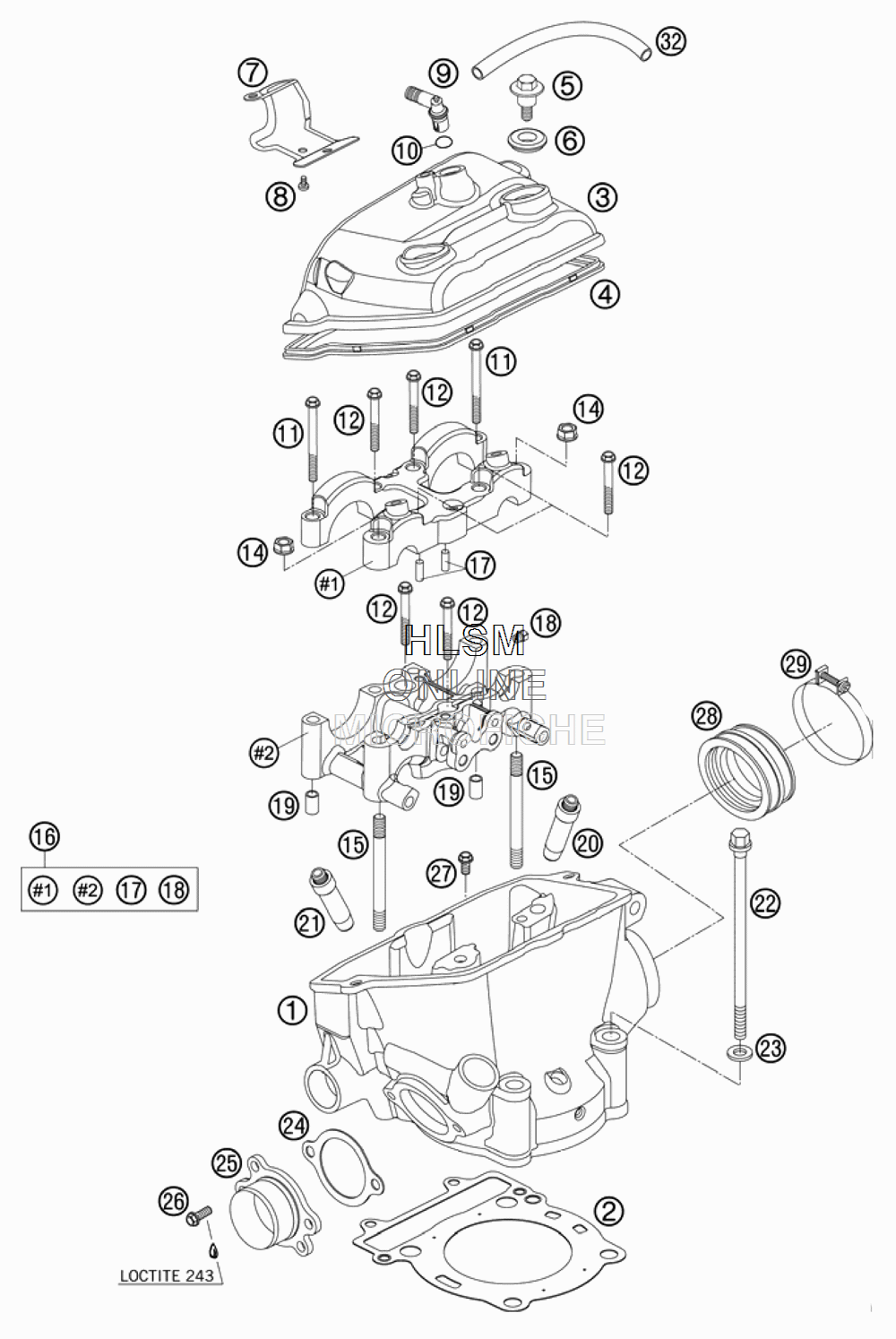

CYLINDER HEAD для Ktm 250 XC-W - 2008 года выпуска
-
№АртикулНазвание
-
177036020244 CYLINDERIGHT HANDEAD CPL.CYLINDERIGHT HANDEAD CPL.
-
277030036000 CYLINDER HEAD GASKETCYLINDER HEAD GASKET
-
377036052100 VALVE COVERVALVE COVER
-
477036053000 VALVE COVER GASKETVALVE COVER GASKET
-
577036055100 VALVE COVER SCR. M6X12 WS10VALVE COVER SCR. M6X12 WS10
-
677036054050 RUBBER GASKET FOR SCREWRUBBER GASKET FOR SCREW
-
777036052050 COVER PLATE BREATHERCOVER PLATE BREATHER
-
80009050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
-
960038082000 ANGLE CONNECTOR LC8ANGLE CONNECTOR LC8
-
100770080020 O-RING 8X2 SILICONEO-RING 8X2 SILICONE
-
1177036081000 SPECIAL SCREW M7X73 WS 10SPECIAL SCREW M7X73 WS 10
-
1277036080000 SPECIAL SCREW M7X40 WS10SPECIAL SCREW M7X40 WS10
-
1477036024000 COLLAR NUT 7X1COLLAR NUT 7X1
-
1577036023000 STUD 7X1STUD 7X1
-
1677036020150 BUSH SUPPORT A.BRIDGE CPLBUSH SUPPORT A.BRIDGE CPL
-
170402050980 NEEDLE ROLLER DIN5402 5X9,8NEEDLE ROLLER DIN5402 5X9,8
-
1860030063050 OIL JET 50OIL JET 50
-
1977036090000 DOWEL(BUSH BRIDGE)7/9/8DOWEL(BUSH BRIDGE)7/9/8
-
2077036025201 VALVE GUIDE INTAKEVALVE GUIDE INTAKE
-
2177036026101 VALVE GUIDE OUTLETVALVE GUIDE OUTLET
-
2277036079000 CYLINDER HEAD SCREWCYLINDER HEAD SCREW
-
2359036090000 WASHER 10,8X18,8X1,5WASHER 10,8X18,8X1,5
-
2477036041000 GASKET EXHAUST FLANGEGASKET EXHAUST FLANGE
-
2577036039000 EXHAUST FLANGE CPL.EXHAUST FLANGE CPL.
-
260015060203 HH COLLAR SCREW M 6X20HH COLLAR SCREW M 6X20
-
270015060253 HH COLLAR SCREW M 6X25HH COLLAR SCREW M 6X25
-
2877036044000 INTAKE BOOTINTAKE BOOT
-
2959030061000 CLAMP M4X25CLAMP M4X25
-
3277031050000 ENGINE BREATHER TUBEENGINE BREATHER TUBE
