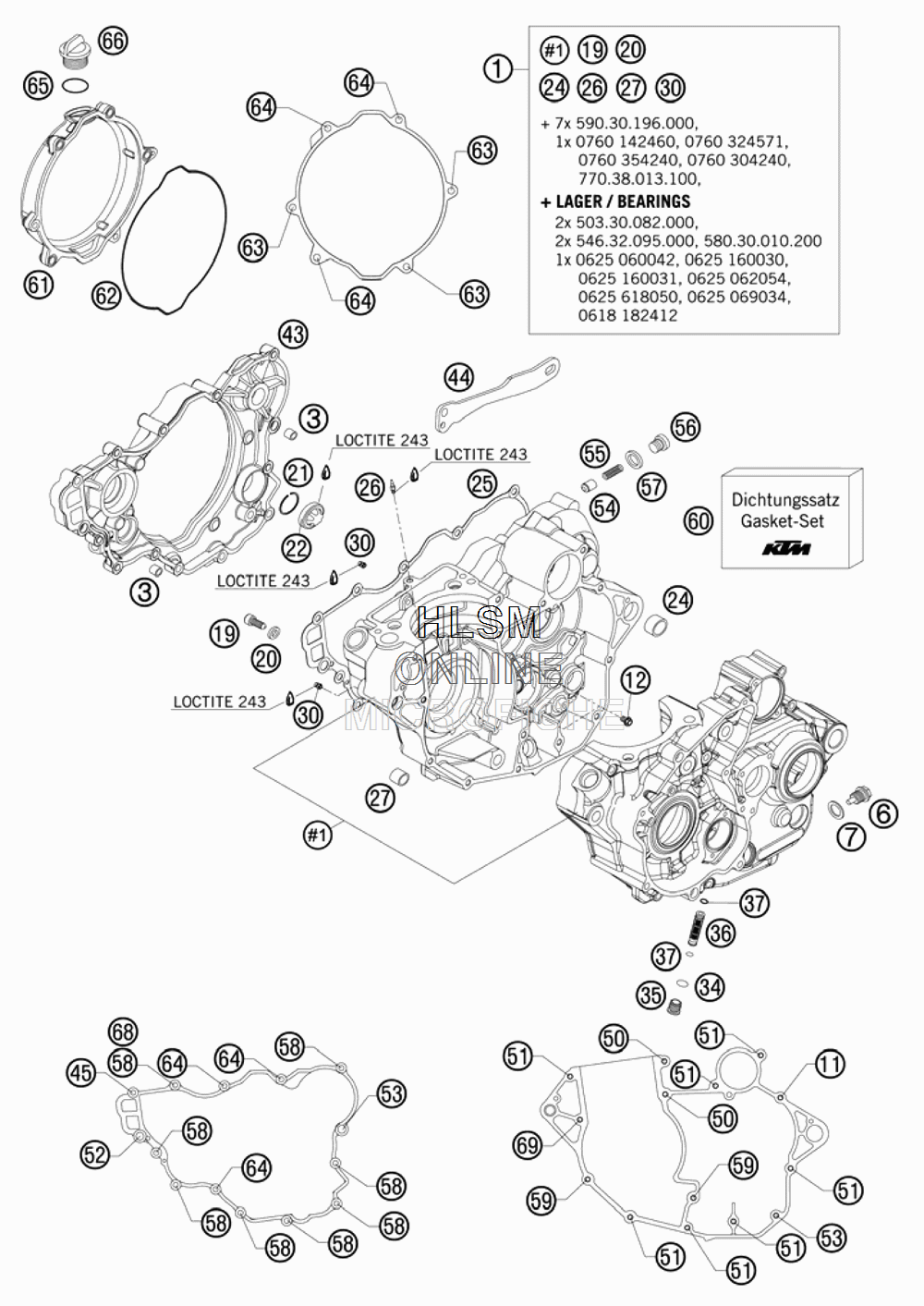

ENGINE CASE для Ktm 250 XC-W - 2008 года выпуска
-
№АртикулНазвание
-
177030100144 ENGINE CASE CPL. EXC-F/XC-FENGINE CASE CPL. EXC-F/XC-F
-
349030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
658030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
758038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
110015060453 HH COLLAR SCREW M 6X45HH COLLAR SCREW M 6X45
-
120015060083 HH COLLAR SCREW M 6X8HH COLLAR SCREW M 6X8
-
1958030080000 LOCATING SCREW M8LOCATING SCREW M8
-
2058030081000 CU-SEAL RING 8 X 14 X 3CU-SEAL RING 8 X 14 X 3
-
2161030019050 CIRCLIP OIL LEVEL GLASSCIRCLIP OIL LEVEL GLASS
-
2259030019000 OIL LEVEL GLASS G 1777 YOIL LEVEL GLASS G 1777 Y
-
2459030024000 DOWEL 17 X 19 X 12DOWEL 17 X 19 X 12
-
2577030025100 GASKET FOR CLUTCH COVERGASKET FOR CLUTCH COVER
-
2660030064070 OIL JET 70 M6X0,75 WS8OIL JET 70 M6X0,75 WS8
-
2754630027000 DOWEL BUSHING 13,8X11X12DOWEL BUSHING 13,8X11X12
-
3059030058000 JET 100 BING(44-031/180) M4JET 100 BING(44-031/180) M4
-
340770120020 O-RING 12,00X2,00 NBR 70O-RING 12,00X2,00 NBR 70
-
3559038014100 PLUG M16X1,5PLUG M16X1,5
-
3659038015000 OIL SCREEN 11,8X44,5MMOIL SCREEN 11,8X44,5MM
-
370770090015 O-RING 9X1,5 NBRO-RING 9X1,5 NBR
-
437703000114425 CLUTCH COVER CPL. GREYCLUTCH COVER CPL. GREY
-
4477030047100 CHAIN DAMPERSHEET EXC-FCHAIN DAMPERSHEET EXC-F
-
450015060353 HH COLLAR SCREW M 6X35HH COLLAR SCREW M 6X35
-
500015060653 HH COLLAR SCREW M 6X65HH COLLAR SCREW M 6X65
-
510015060503 HH COLLAR SCREW M 6X50HH COLLAR SCREW M 6X50
-
520015060403 HH COLLAR SCREW M 6X40HH COLLAR SCREW M 6X40
-
530015060303 HH COLLAR SCREW M 6X30HH COLLAR SCREW M 6X30
-
5458038028000 VALVE PISTONVALVE PISTON
-
5558038023300 PRESSURE SPRINGPRESSURE SPRING
-
560908120153 PLUG DIN0908-M12X1,5PLUG DIN0908-M12X1,5
-
5758038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
580015060253 HH COLLAR SCREW M 6X25HH COLLAR SCREW M 6X25
-
590015060953 HH COLLAR SCREW M 6X95HH COLLAR SCREW M 6X95
-
6077030099000 GASKET SETGASKET SET
-
617703002620025 CLUTCH COVER OUTSIDECLUTCH COVER OUTSIDE
-
6277030027000 MOLDED RINGMOLDED RING
-
630015060253 HH COLLAR SCREW M 6X25HH COLLAR SCREW M 6X25
-
640015060553 HH COLLAR SCREW M 6X55HH COLLAR SCREW M 6X55
-
650770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
6658030020000 PLUG M 24X3PLUG M 24X3
-
680603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
690015060603 HH COLLAR SCREW M 6X60HH COLLAR SCREW M 6X60
