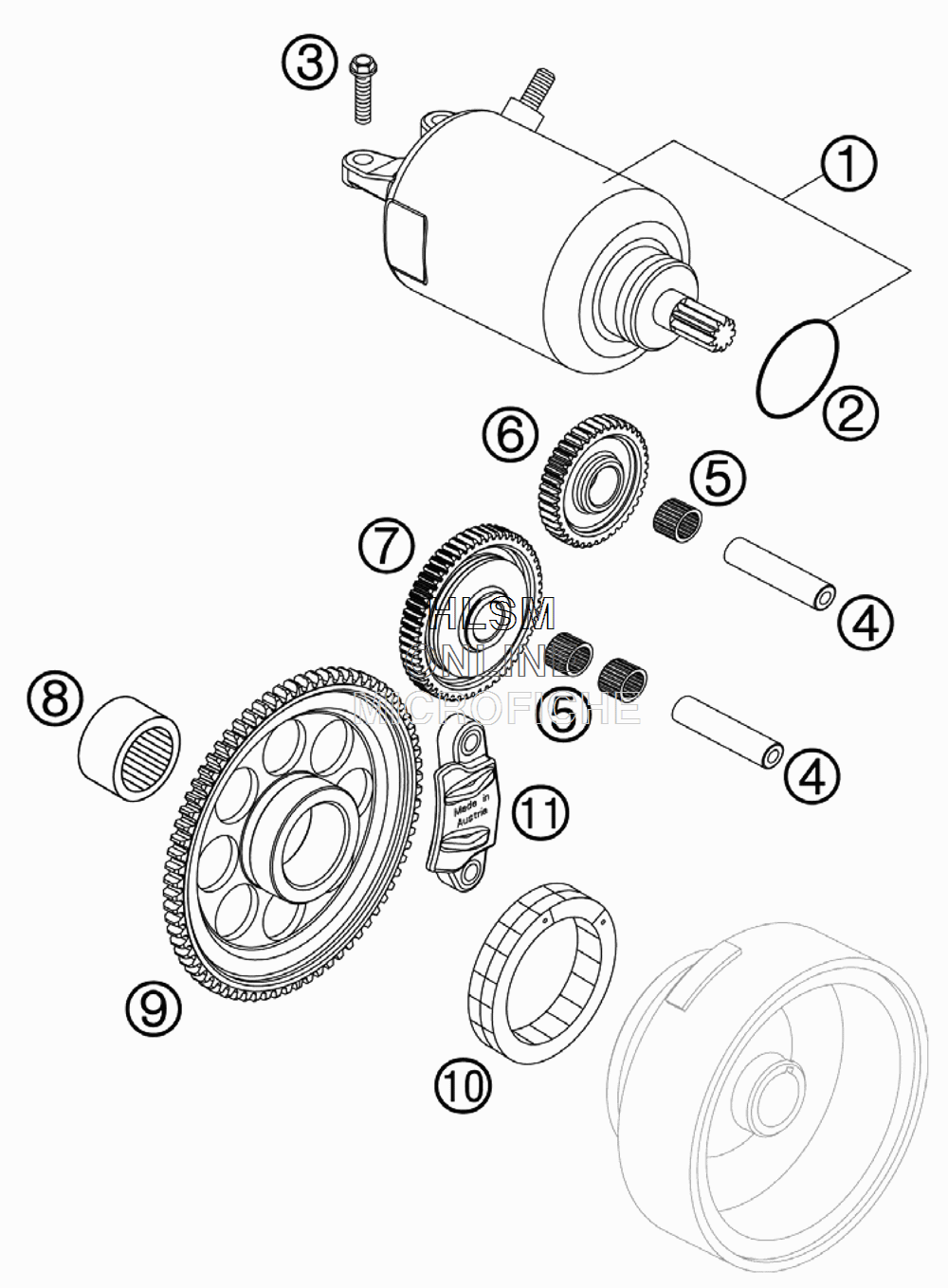

ELECTRIC STARTER для Ktm 250 XCF-W - 2008 года выпуска
-
№АртикулНазвание
-
177040001000 E-STARTER ENGINEE-STARTER ENGINE
-
20770250030 O-RING 25,00X3,00 NBRO-RING 25,00X3,00 NBR
-
30015060203 HH COLLAR SCREW M 6X20HH COLLAR SCREW M 6X20
-
459040029000 BEARING BOLTBEARING BOLT
-
50405101310 NEEDLE BEARING K 10X13X10NEEDLE BEARING K 10X13X10
-
677040022000 INTERMEDIATE GEAR 36TINTERMEDIATE GEAR 36T
-
777040016000 TORQUE LIMITER CPL.TORQUE LIMITER CPL.
-
858033097000 NEEDLE BEARING HK 2216NEEDLE BEARING HK 2216
-
977040020000 FREE WHEEL GEARFREE WHEEL GEAR
-
1080040026000 FREE WHEELFREE WHEEL
-
1177040027000 HOLDER FREE WHEEL GEARHOLDER FREE WHEEL GEAR
