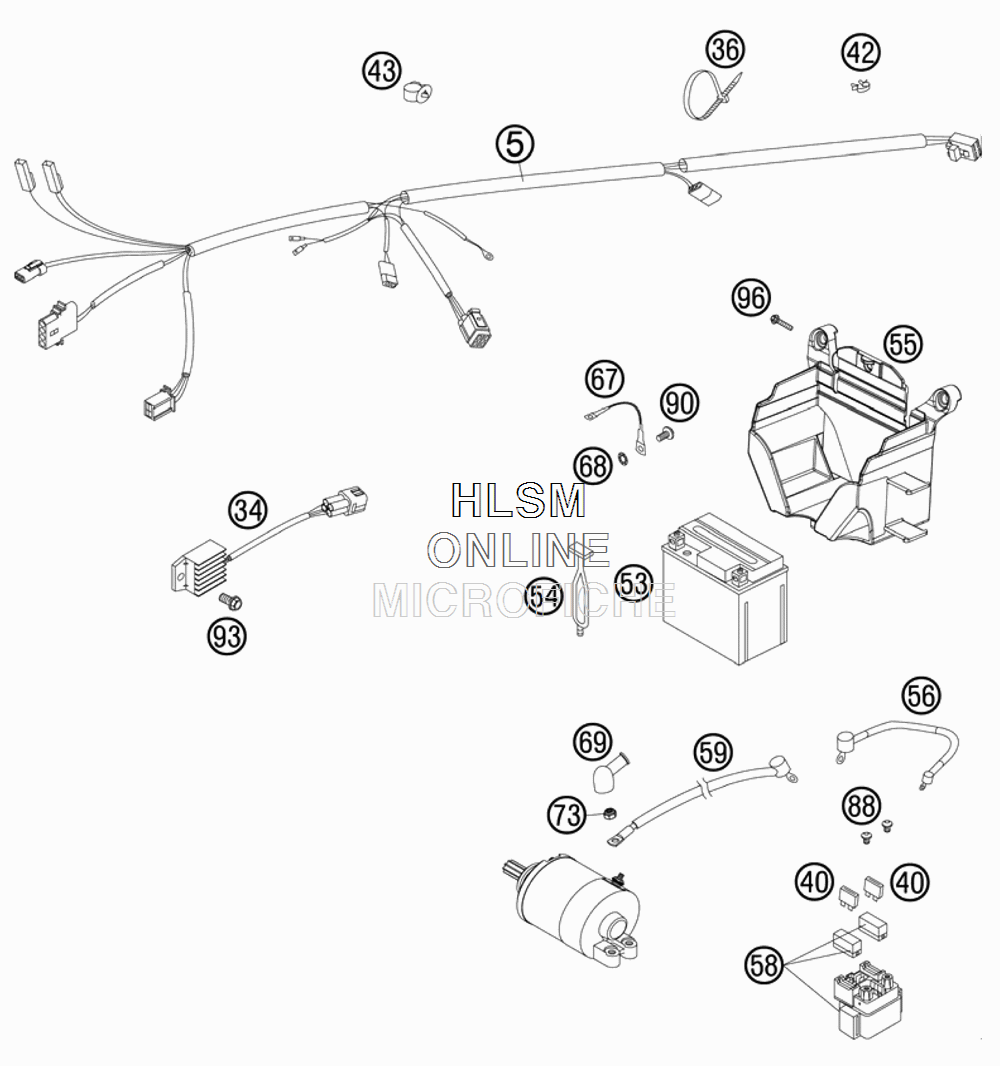

WIRING HARNESS для Ktm 250 XCF-W - 2008 года выпуска
-
№АртикулНазвание
-
559411075100 WIRING HARNESS RACING USAWIRING HARNESS RACING USA
-
3480011034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
3644011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
3644011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
4058011109110 FUSE 10 AFUSE 10 A
-
4257013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
4358111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
5358511053000 BATTERY 12V 4AH YTX5L-BSBATTERY 12V 4AH YTX5L-BS
-
5450303018000 RUBBERRUBBER
-
5578011055000 BARRERY CASINGBARRERY CASING
-
5658711086000 WIRING HARNESS BATTERY DUKEWIRING HARNESS BATTERY DUKE
-
5858211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
5958411059100 STARTERCABLE 700 MMSTARTERCABLE 700 MM
-
6758411097100 GROUND CABLEGROUND CABLE
-
6858411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
6958440099000 PROTECTION CAP F. STARTER ENG.PROTECTION CAP F. STARTER ENG.
-
730985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
880902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
900024060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
930025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
960017060204 EJOT PT SCREW K60X20 ALUEJOT PT SCREW K60X20 ALU
