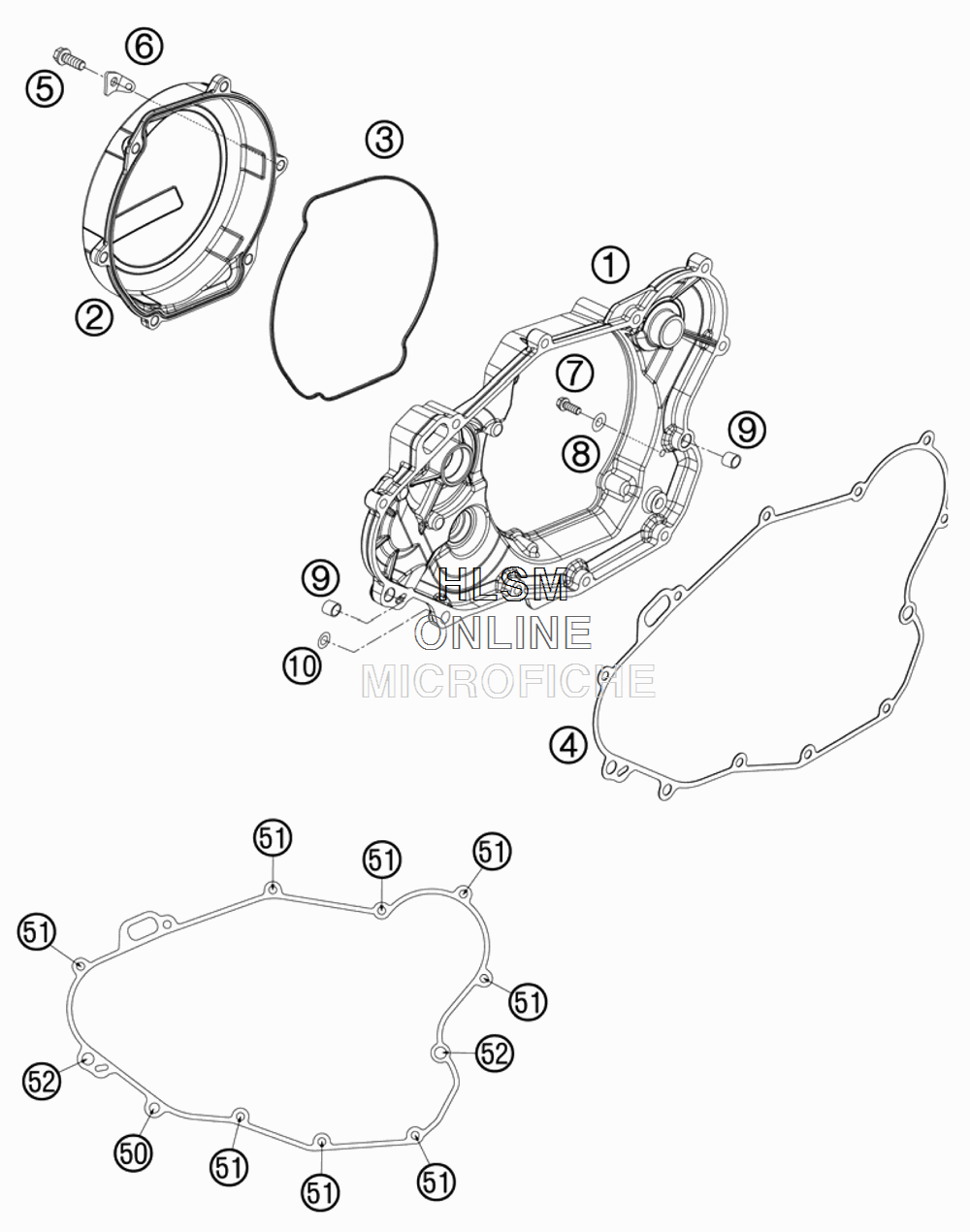

CLUTCH COVER для Ktm 450 XCR-W - 2008 года выпуска
-
№АртикулНазвание
-
17803000100025 CLUTCH COVER GREYCLUTCH COVER GREY
-
27803002600025 OUTER CLUTCH COVER GREYOUTER CLUTCH COVER GREY
-
378030027000 GASKET OUTER CLUTCH COVERGASKET OUTER CLUTCH COVER
-
478030025000 CLUTCH COVER GASKETCLUTCH COVER GASKET
-
50015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
678030028000 SPRING HANGERSPRING HANGER
-
70015060083 HH COLLAR SCREW M 6X8 WS=8HH COLLAR SCREW M 6X8 WS=8
-
80603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
949030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
1058030081000 CU-SEAL RING 8 X 14 X 3CU-SEAL RING 8 X 14 X 3
-
5078030080000 LOCATING SCREWLOCATING SCREW
-
510015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
520015060303 HH COLLAR SCREW M 6X30 SW=8HH COLLAR SCREW M 6X30 SW=8
