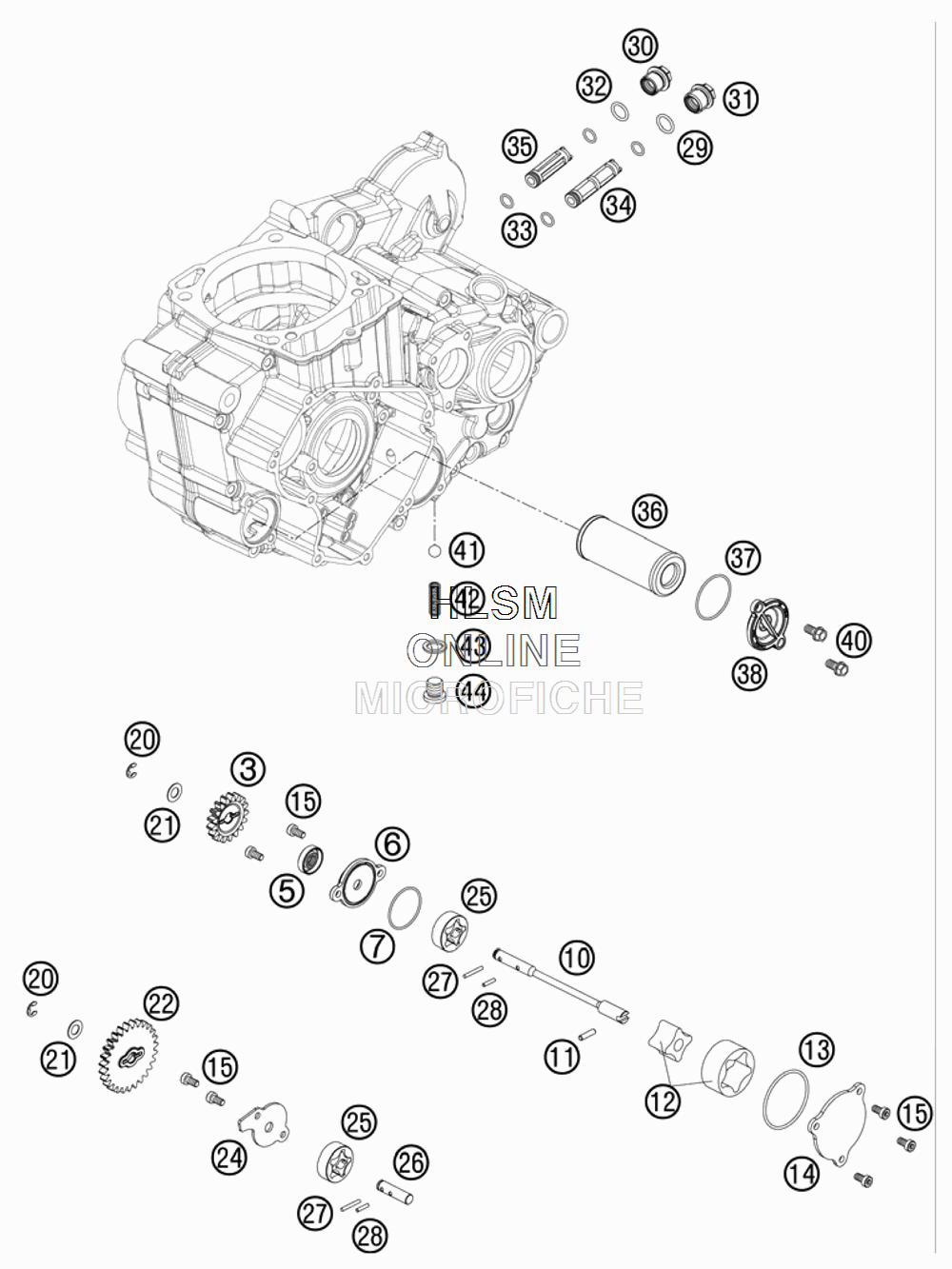

LUBRICATING SYSTEM для Ktm 450 XCR-W - 2008 года выпуска
-
№АртикулНазвание
-
378038001017 OIL PUMP GEAR 17 TOIL PUMP GEAR 17 T
-
50760082260 SHAFT SEAL RING 8X24X7 BABSLSHAFT SEAL RING 8X24X7 BABSL
-
678038103100 OIL PUMP COVER PRESSURE PUMPOIL PUMP COVER PRESSURE PUMP
-
70770327013 O-RING 32,7X1,3 VITON 75SHOREO-RING 32,7X1,3 VITON 75SHORE
-
1078038102000 OIL PUMP SHAFT SP-PPOIL PUMP SHAFT SP-PP
-
110402041580 NEEDLE ROLLER NRB 4X15,8 G2NEEDLE ROLLER NRB 4X15,8 G2
-
1260038009000 ROTOR-SET SUCTION PUMPROTOR-SET SUCTION PUMP
-
130770440020 O-RING 44,00X2,00 VITONO-RING 44,00X2,00 VITON
-
1478038004000 OIL PUMP COVER SUCTION PUMPOIL PUMP COVER SUCTION PUMP
-
150984050103S CYLIND. SCR. DIN9612 M5X10 8.8CYLIND. SCR. DIN9612 M5X10 8.8
-
200799060000 TAB WASHER DIN6799-RS 6,0TAB WASHER DIN6799-RS 6,0
-
2158038007755 STOP DISK 8,1 X 15 X 0,5STOP DISK 8,1 X 15 X 0,5
-
2278038001027 OIL PUMP GEAR 27TOIL PUMP GEAR 27T
-
2478038003000 OIL PUMP COVER TRANSM. PUMPOIL PUMP COVER TRANSM. PUMP
-
2559038011010 OILPUMP ROTOR CPL. 10MM G-73ROILPUMP ROTOR CPL. 10MM G-73R
-
2678038002000 OIL PUMP SHAFT TRANSM. PUMPOIL PUMP SHAFT TRANSM. PUMP
-
270402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8NEEDLEROL.DIN5402 NRA 2,5X19,8
-
280402251180 NEEDLE ROLLER DIN5402 2,5X11,8NEEDLE ROLLER DIN5402 2,5X11,8
-
290770125020 O-RING 12,50X2,00 NBR 70O-RING 12,50X2,00 NBR 70
-
3078038017000 SCREW PLUG M16SCREW PLUG M16
-
3178038018000 SCREW PLUG M17SCREW PLUG M17
-
320770120020 O-RING 12,00X2,00 NBR 70O-RING 12,00X2,00 NBR 70
-
330770090015 O-RING 9X1,5 NBRO-RING 9X1,5 NBR
-
3478038015000 OIL SCREEN 12,5X56,5MMOIL SCREEN 12,5X56,5MM
-
3559038015000 OIL SCREEN 11,8X44,5MMOIL SCREEN 11,8X44,5MM
-
3677338005101 OIL FILTEROIL FILTER
-
370770034015 O-RING 34X1,5 VITONO-RING 34X1,5 VITON
-
3877338041100 OIL FILTER COVEROIL FILTER COVER
-
400015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
410401090003 BALL DIN5401-9BALL DIN5401-9
-
4258038023300 PRESSURE SPRING L=25MM D=1MMPRESSURE SPRING L=25MM D=1MM
-
4358038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
440908120153 PLUG DIN0908-M12X1,5PLUG DIN0908-M12X1,5
