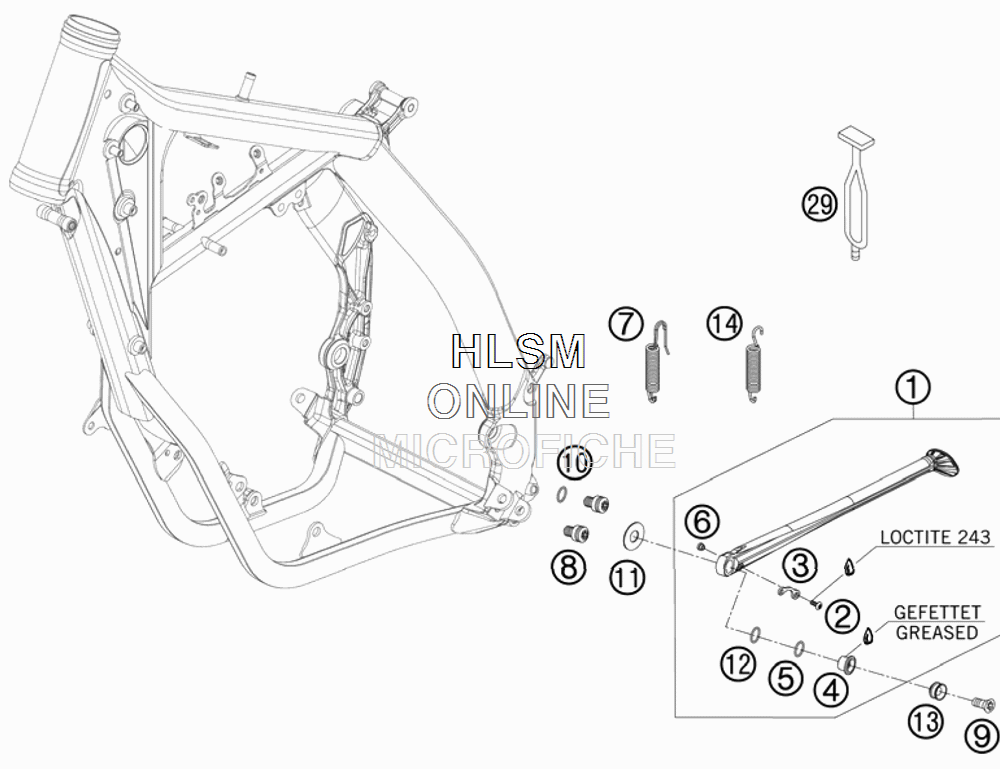

SIDE / CENTER STAND для Ktm 530 XCR-W - 2008 года выпуска
-
№АртикулНазвание
-
178003023044 SIDE STAND CPL.SIDE STAND CPL.
-
258605083014 SCREW M5X14 TORX 25SCREW M5X14 TORX 25
-
378003023090 SUPPORT SIDE STAND SPRINGSUPPORT SIDE STAND SPRING
-
478003023080 SIDE STAND BUSHING EXC USASIDE STAND BUSHING EXC USA
-
50770180020 O-RING 18,00X2,00 NBR 70O-RING 18,00X2,00 NBR 70
-
678003023070 SPACER BUSHING SPRING BRACKETSPACER BUSHING SPRING BRACKET
-
778003024000 SIDE STAND SPRING EXCSIDE STAND SPRING EXC
-
878003023082 SIDE STAND STOP SCREW M10X30SIDE STAND STOP SCREW M10X30
-
90019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
90025080306 HH COLLAR SCREW M8X30 (ONLY FOR EURO)HH COLLAR SCREW M8X30 (ONLY FOR EURO)
-
100770120020 O-RING 12,00X2,00 NBR 70O-RING 12,00X2,00 NBR 70
-
1178003023083 WASHER F. SIDE STAND 12,2X29,5WASHER F. SIDE STAND 12,2X29,5
-
120770125015 O-RING 12,5X1,5 NBRO-RING 12,5X1,5 NBR
-
1378003023081 SIDE STAND BUSHING (ONLY FOR EURO)SIDE STAND BUSHING (ONLY FOR EURO)
-
1478003024100 SIDE STAND SPRING (ONLY FOR XC)SIDE STAND SPRING (ONLY FOR XC)
-
2950303018000 RUBBER L=145MMRUBBER L=145MM
