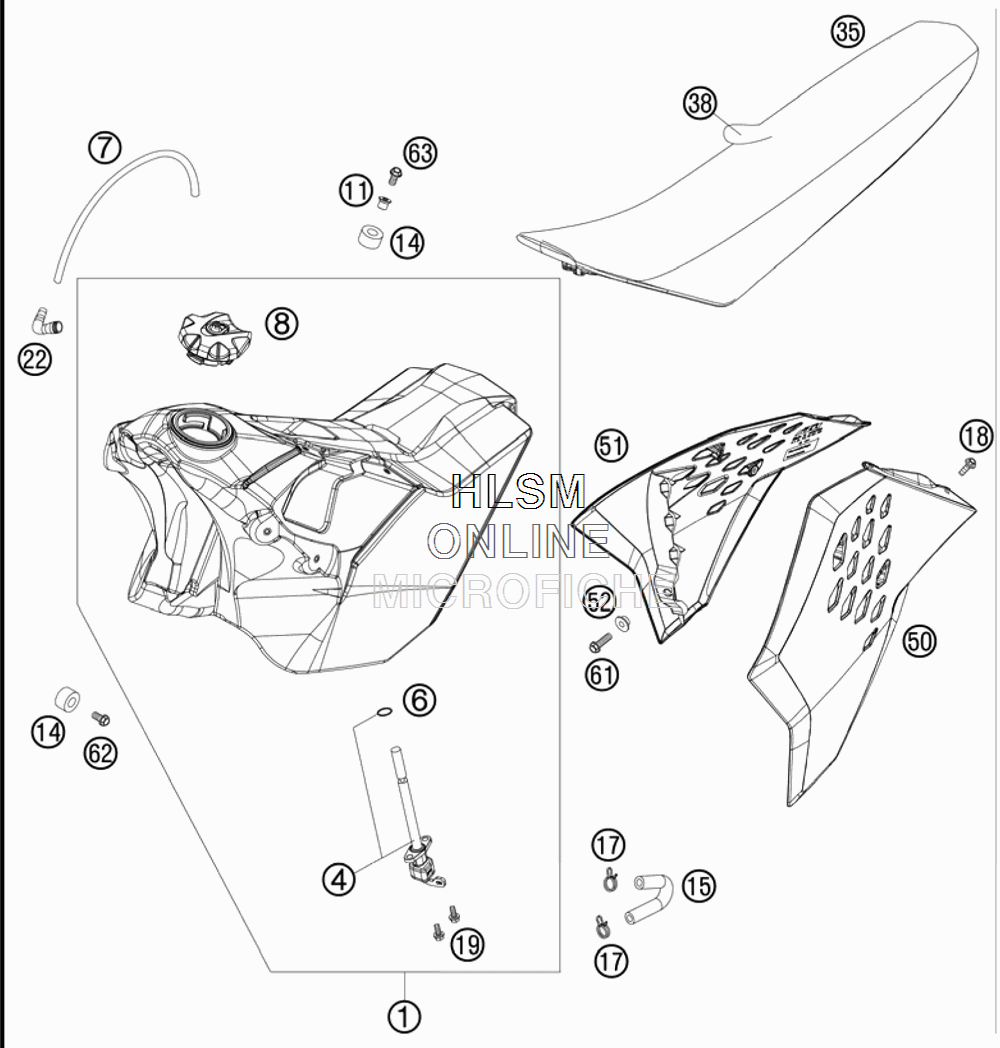

TANK SEAT COVER для Ktm 530 XCR-W - 2008 года выпуска
-
№АртикулНазвание
-
17800711306630 FUEL TANK CPL.9,5L EXC-FUSAFUEL TANK CPL.9,5L EXC-FUSA
-
478007004000 GAS COCK ON/OFF/RESGAS COCK ON/OFF/RES
-
60770110021 O-RING 11X2 VITONO-RING 11X2 VITON
-
750307000300 BREATHER TUBE 6X9X300BREATHER TUBE 6X9X300
-
87800700804404 TANK PLUG CPL. XCF-WTANK PLUG CPL. XCF-W
-
1177307026000 TANK BUSHINGTANK BUSHING
-
1450307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
1578007016000 FUEL PREFORMED HOSE EPAFUEL PREFORMED HOSE EPA
-
1778031082000 CLAMP YDNAC 13,7MMCLAMP YDNAC 13,7MM
-
180017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
190017060203 EJOT PT SCREW K60X20EJOT PT SCREW K60X20
-
2251030022000 ANGLE PIECE 90 DEGREE M10X1ANGLE PIECE 90 DEGREE M10X1
-
3577307040000 SEAT SXSEAT SX
-
3877307040050 SEAT COVERSEAT COVER
-
507730805000030C SPOILER L/S BLACK XC WITH DECALSPOILER L/S BLACK XC WITH DECAL
-
517730805100030C SPOILER R/S BLACK XC WITH DECALSPOILER R/S BLACK XC WITH DECAL
-
5250308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
610025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
620025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
630024060273 COLLAR SCREW M6X27COLLAR SCREW M6X27
