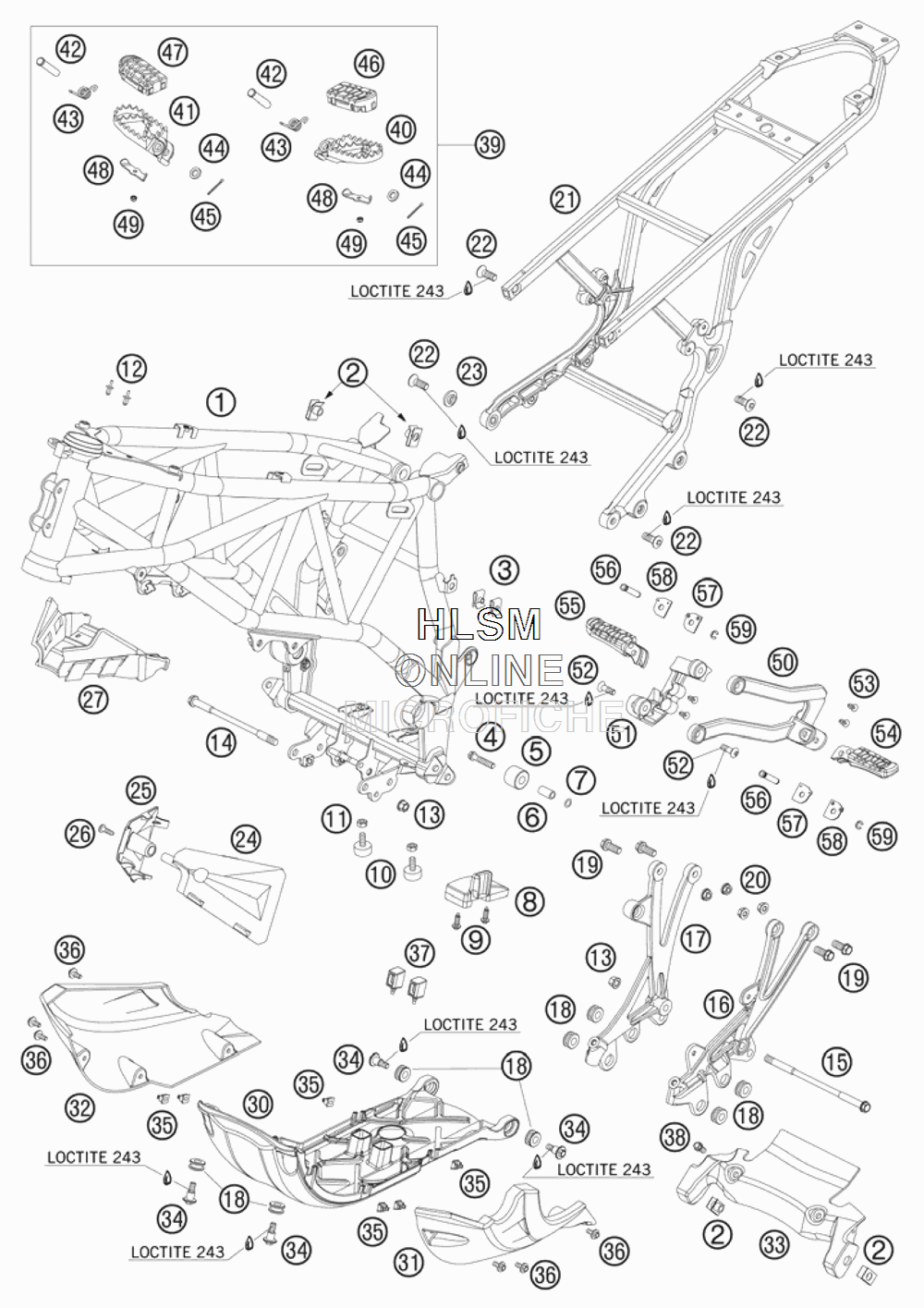

FRAME для Ktm 990 Adventure Orange - 2008 года выпуска
-
№АртикулНазвание
-
16010300110033 FRAME ''FD07'' 990 ADVENTUREFRAME ''FD07'' 990 ADVENTURE
-
254603048000 RANGE CHANGE METAL NUT M8RANGE CHANGE METAL NUT M8
-
354603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
40025080406 HH COLLAR SCREW M8X40HH COLLAR SCREW M8X40
-
558403060000 CHAIN ROLL 12X29X22,5CHAIN ROLL 12X29X22,5
-
658403060065 BUSH CHAIN ROLL 8X12X23BUSH CHAIN ROLL 8X12X23
-
736003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
860004076100 CHAIN SLIDING BLOCKCHAIN SLIDING BLOCK
-
90017060204 EJOT PT SCREW K60X20 ALUEJOT PT SCREW K60X20 ALU
-
1058303070100 BUMP RUBBER M8X25MMBUMP RUBBER M8X25MM
-
110934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
1260003088000 PLASTIC CAP FOR M6PLASTIC CAP FOR M6
-
1354630044000 COLLAR NUT M10COLLAR NUT M10
-
1460003013000 ENGINE BRAC. SCREW M10X172ENGINE BRAC. SCREW M10X172
-
1560003014000 ENGINE BRAC. SCREW M10X206ENGINE BRAC. SCREW M10X206
-
1660003005000 ENGINE SUPPORT LEFTENGINE SUPPORT LEFT
-
1760003006000 ENGINE SUPPORT RIGHTENGINE SUPPORT RIGHT
-
1860003098000 RUBBER SLEEVERUBBER SLEEVE
-
190025100246 % COLLAR SCREW M10X24% COLLAR SCREW M10X24
-
2054310086100 SELF LOCKING NUT M10 CUSELF LOCKING NUT M10 CU
-
216000300200092 SUB FRAME PLATINUMSUB FRAME PLATINUM
-
2260003004027 FL.HEAD SCREW M10X1,25 L=27FL.HEAD SCREW M10X1,25 L=27
-
2360003001051 COLLAR BUSHING 10X15X25X4COLLAR BUSHING 10X15X25X4
-
2462503085000 COVER FRAME L/S FRONTCOVER FRAME L/S FRONT
-
2562503086000 COVER FRAME R/S FRONTCOVER FRAME R/S FRONT
-
260081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
2760003087000 SPLASH PROTECTOR FRAMESPLASH PROTECTOR FRAME
-
3060003091000 UNDERRIDE PROTECTIONUNDERRIDE PROTECTION
-
3160003092100 UNDERRIDE PROTECTION LEFTUNDERRIDE PROTECTION LEFT
-
3260003093100 UNDERRIDE PROTECTION RIGHTUNDERRIDE PROTECTION RIGHT
-
336000309400001S LOWER TANK HOLDER FRONTLOWER TANK HOLDER FRONT
-
3460003097000 COLLAR SCREW M8COLLAR SCREW M8
-
3560003095000 CAGE NUT M6 SL 4MMCAGE NUT M6 SL 4MM
-
360024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
3760003096000 VIBRATION DAMPERVIBRATION DAMPER
-
380025080166 HH COLLAR SCREW M8X16HH COLLAR SCREW M8X16
-
3960003040033 FOOTREST L/S+R/S CPL.FOOTREST L/S+R/S CPL.
-
4059003040250 FOOT PED L/S SILVERFOOT PED L/S SILVER
-
4159003041250 FOOT PED R/S SILVERFOOT PED R/S SILVER
-
4254803044000 BOLT FOR FOOT PEDBOLT FOR FOOT PED
-
4354603041000 FOOTREST SPRING L/S AND R/SFOOTREST SPRING L/S AND R/S
-
440125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
450094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
4660003040010 FOOTREST RUBBER FRONT L/SFOOTREST RUBBER FRONT L/S
-
4760003041010 FOOTREST RUBBER FRONT R/SFOOTREST RUBBER FRONT R/S
-
4860003044010 CLOSING PANEL FRONT L/S R/SCLOSING PANEL FRONT L/S R/S
-
490985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
506000304800001S FOOTREST BRACKET REAR L/SFOOTREST BRACKET REAR L/S
-
516000304900001S FOOTREST BRACKET REAR R/SFOOTREST BRACKET REAR R/S
-
520019080266S COUNTER-SUNK SCREW ISA45 M8X26COUNTER-SUNK SCREW ISA45 M8X26
-
5354403135000 PLASTIC CAP SFL10PLASTIC CAP SFL10
-
5460003050000 FOOTREST CPL. L/S REARFOOTREST CPL. L/S REAR
-
5560003051000 FOOTREST CPL. R/S REARFOOTREST CPL. R/S REAR
-
5660003044000 BOLT FOR FOOTREST REARBOLT FOR FOOTREST REAR
-
5760003152000 ENGAGE PANEL FOOTREST L/SENGAGE PANEL FOOTREST L/S
-
5860003052000 ENGAGE PANEL FOOTREST R/SENGAGE PANEL FOOTREST R/S
-
590799060003 TAB WASHER DIN6799-RS 6,0TAB WASHER DIN6799-RS 6,0
