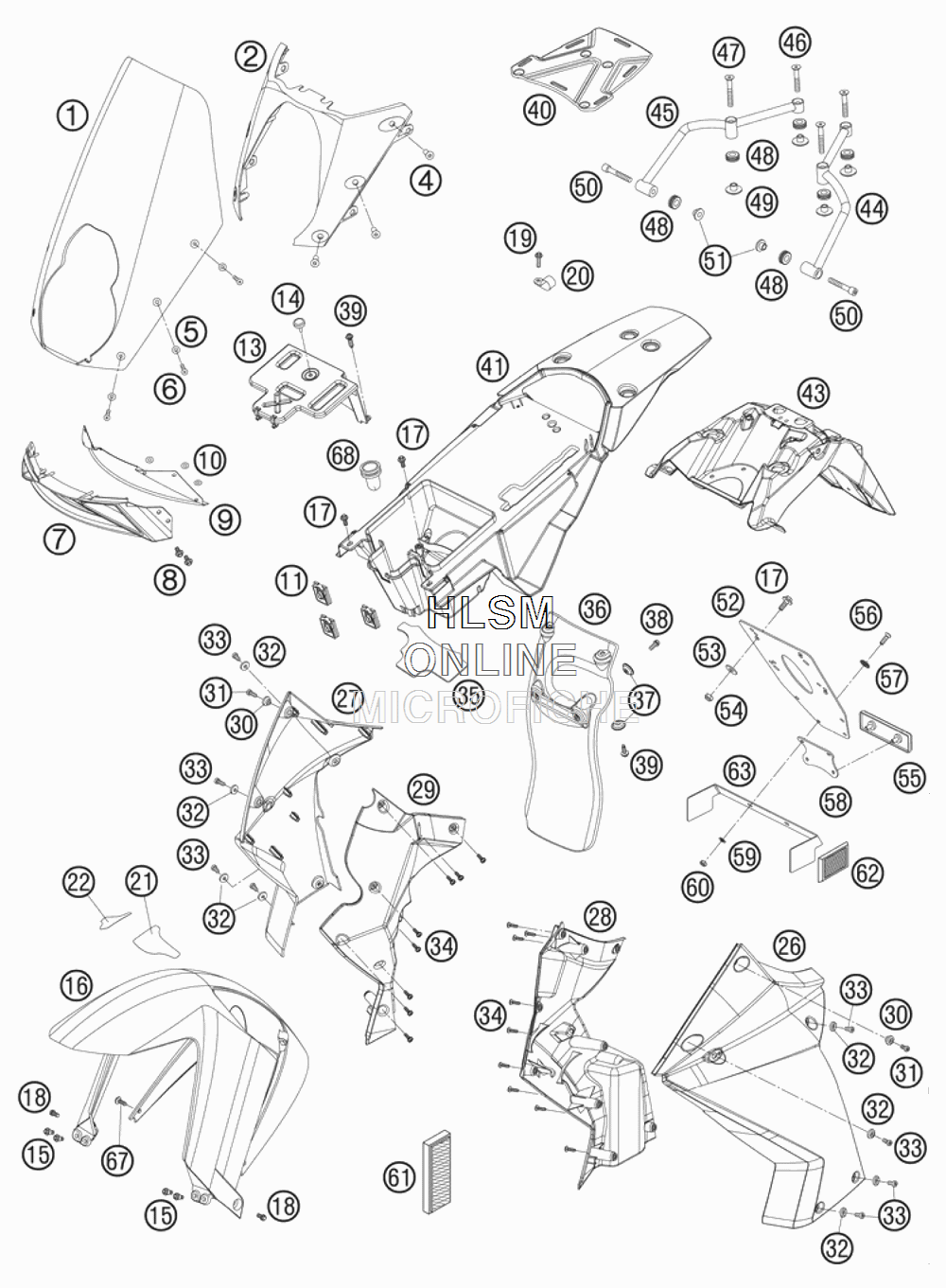

MASK FENDERS для Ktm 990 Adventure Orange - 2008 года выпуска
-
№АртикулНазвание
-
160008008000 FAIRING SCREENFAIRING SCREEN
-
260008001100 HEAD LIGHT MASKHEAD LIGHT MASK
-
460008008050 BLIND PLUG-IN NUT M5 WN 16ABLIND PLUG-IN NUT M5 WN 16A
-
560008046000 SPECIAL WASHER D=12MMSPECIAL WASHER D=12MM
-
60991050204 FLAT HEAD SCREW DIN7991-M 5X20FLAT HEAD SCREW DIN7991-M 5X20
-
760008011000 AIR INTAKEAIR INTAKE
-
80024060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
960008011060 AIR INTAKE GRILLAIR INTAKE GRILL
-
1060008011050 SPRING NUT 012410SPRING NUT 012410
-
1160108017010 RUBBER SLEEVE 30X40 MMRUBBER SLEEVE 30X40 MM
-
1360108017000 COVER F. STORAGE COMP. REARCOVER F. STORAGE COMP. REAR
-
1460006001021 DISTANCE RUBBER AIRBOXDISTANCE RUBBER AIRBOX
-
1559001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
166010801000070A FENDER FRONT ORANGEFENDER FRONT ORANGE
-
170024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
180025060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
190081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
2057013070000 PVC-CLAMP 7/16'' HEYCO 3377PVC-CLAMP 7/16'' HEYCO 3377
-
2160108010060 PROTECTIVE FILM L/SPROTECTIVE FILM L/S
-
2260108010070 PROTECTIVE FILM R/SPROTECTIVE FILM R/S
-
266000805000070A SIDE COVER L/S ORANGE DECAL OVER-COSIDE COVER L/S ORANGE DECAL OVER-CO
-
276000805100070A SIDE COVER R/S ORANGE DECAL OVER-COSIDE COVER R/S ORANGE DECAL OVER-CO
-
2860008050150 INNER COVER LEFTINNER COVER LEFT
-
2960008051150 INNER COVER RIGHTINNER COVER RIGHT
-
3060008052000 BUSH F. SIDE COVERBUSH F. SIDE COVER
-
310984060163 AH SCREW DIN6912-M 6X16AH SCREW DIN6912-M 6X16
-
3260008045000 SPECIAL WASHER D=16,5MMSPECIAL WASHER D=16,5MM
-
330012060123 AH SCREW DIN6912 M6X12AH SCREW DIN6912 M6X12
-
340016050121 SCREW FOR PLASTIC 50X12SCREW FOR PLASTIC 50X12
-
3560008013160 THER.PROT.FOIL REAR FENDERTHER.PROT.FOIL REAR FENDER
-
3660006010100 SPLASHBACKSPLASHBACK
-
3772210079000 BUCKETBUCKET
-
380025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
390017060203 EJOT PT SCREW K60X20EJOT PT SCREW K60X20
-
406001201000001S BAGGAGE RACK LC8BAGGAGE RACK LC8
-
416010801300030 REAR FENDER BLACKREAR FENDER BLACK
-
4360108015000 LICENSE NUMBER CARRIERLICENSE NUMBER CARRIER
-
4460012008000 HANDLE L/SHANDLE L/S
-
4560012009000 HANDLE R/SHANDLE R/S
-
460991080503 FLAT HEAD SCREW DIN7991-M 8X50FLAT HEAD SCREW DIN7991-M 8X50
-
470991080653 FLAT HEAD SCREW DIN7991-M 8X65FLAT HEAD SCREW DIN7991-M 8X65
-
4841001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
4960012008003 COLLAR BUSHING 8,2X12X28X9COLLAR BUSHING 8,2X12X28X9
-
500912080553 AH SCREW DIN912 M8X55AH SCREW DIN912 M8X55
-
5160012008002 COLLAR BUSHING 8,2X12X20X9COLLAR BUSHING 8,2X12X20X9
-
5260012081200 LICENCE FITTINGLICENCE FITTING
-
530021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
540985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
5558412080000 REFLECTOR RED LC4REFLECTOR RED LC4
-
560966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
5740006006000 WASHER 6MMWASHER 6MM
-
5858412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
590125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
600985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
6160012080000 SIDE REFLECTOR YELLOW FOR USA+AUS OSIDE REFLECTOR YELLOW FOR USA+AUS O
-
6216512180100 SIDE REFLECTOR RED REAR FOR USA ONLSIDE REFLECTOR RED REAR FOR USA ONL
-
6362512081000 BRACKET SIDE REFLECTOR FOR USA ONLYBRACKET SIDE REFLECTOR FOR USA ONLY
-
670024060136 HH COLLAR SCREW M6X13HH COLLAR SCREW M6X13
-
6850206020000 RUBBER GRIMMET SLOTTEDRUBBER GRIMMET SLOTTED
