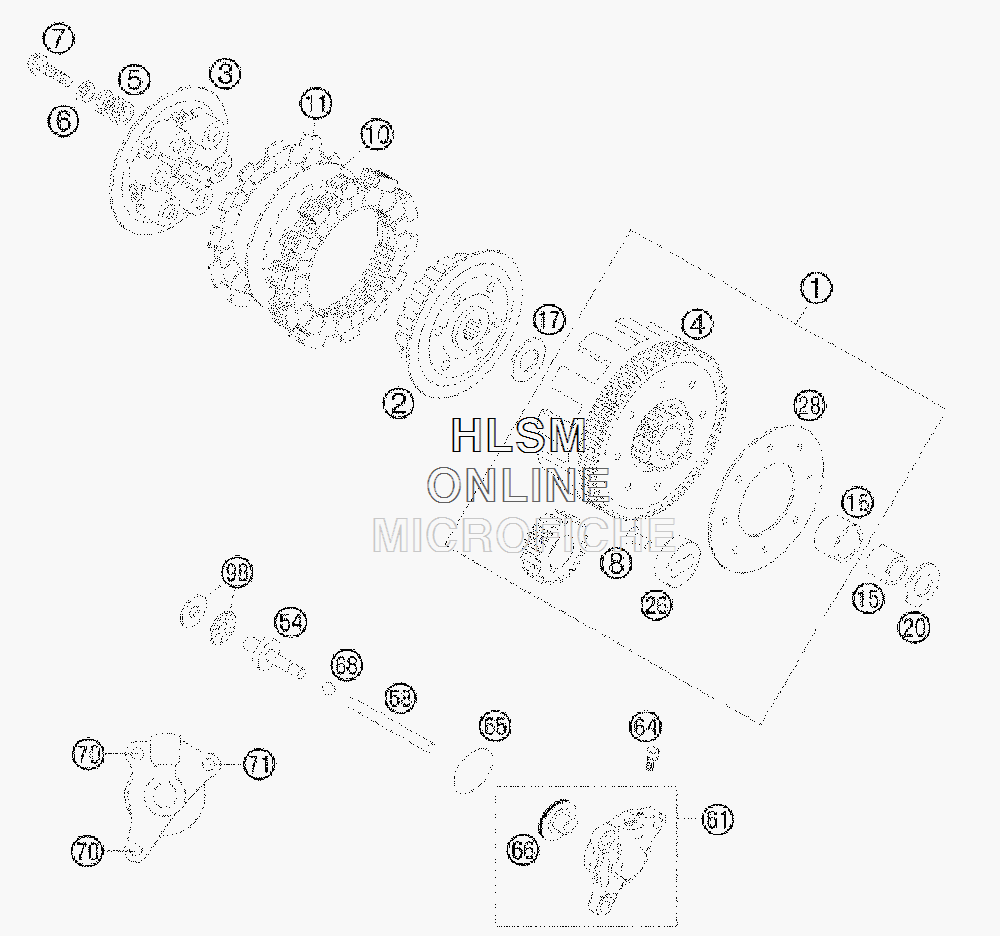

CLUTCH для Ktm 105 SX - 2009 года выпуска

№

Артикул

Название
1

47032001144 OUTER CLUTCH HUB CPL. 85 SX

OUTER CLUTCH HUB CPL. 85 SX

0 ₽
2

47032002000 INNER CLUTCH HUB 85 SX

INNER CLUTCH HUB 85 SX

39 660 ₽
3

47032003000 PRESSURE CAP 85 SX

PRESSURE CAP 85 SX

20 010 ₽
4

47032001100 OUT. CLUTCH HUB LOOSE 85 SX

OUT. CLUTCH HUB LOOSE 85 SX

15 770 ₽
5

47032005000 CLUTCH SPRING 85 SX

CLUTCH SPRING 85 SX

560 ₽
6

47032006000 SPRING RETAIN. 5,1X10,2X15X2,5

SPRING RETAIN. 5,1X10,2X15X2,5

2 980 ₽
7

0015050203 HH COLLAR SCREW M 5X20

HH COLLAR SCREW M 5X20

350 ₽
8

47032008000 RIVET DIN0661 5X14

RIVET DIN0661 5X14

290 ₽
10

47032010000 STEEL DISC 85 SX

STEEL DISC 85 SX

2 220 ₽
11

47032011000 LINING DISC 85 SX

LINING DISC 85 SX

7 360 ₽
15

47032015000 BUSHING 20X25X20,5

BUSHING 20X25X20,5

5 930 ₽
16

47032016000 INNER RING 25X28X20

INNER RING 25X28X20

3 450 ₽
17

47032017000 SUPPORT WASHER 18,5X35X1,5

SUPPORT WASHER 18,5X35X1,5

850 ₽
20

47032020000 STOP DISC 20X32X2

STOP DISC 20X32X2

850 ₽
26

47032026000 DAMPING ELEMENT 85 SX

DAMPING ELEMENT 85 SX

620 ₽
28

47032028000 RETAINING PLATE 85 SX

RETAINING PLATE 85 SX

2 570 ₽
54

47032054000 PRESSURE PLATE 85 SXX

PRESSURE PLATE 85 SXX

9 000 ₽
58

47032058000 PUSH ROD 85 SX

PUSH ROD 85 SX

3 480 ₽
61

59032061044 OUTPUT CYLINDER CPL. 27MM

OUTPUT CYLINDER CPL. 27MM

57 100 ₽
64

54732064000 BLEEDER SCREW WITH CAP

BLEEDER SCREW WITH CAP

5 930 ₽
65

0770300015 O-RING 30,00X1,50 NBR 70

O-RING 30,00X1,50 NBR 70

410 ₽
66

59032066000 PISTON + O-RING + BALL 27MM

PISTON + O-RING + BALL 27MM

57 100 ₽
68

47032068000 BALL D=6MM 85 SX

BALL D=6MM 85 SX

90 ₽
70

0015060163 HH COLLAR SCREW M 6X16

HH COLLAR SCREW M 6X16

290 ₽
71

0015060303 HH COLLAR SCREW M 6X30

HH COLLAR SCREW M 6X30

560 ₽
98

47032098000 AXIAL NEEDLE BEARING 85 SX

AXIAL NEEDLE BEARING 85 SX

2 720 ₽
