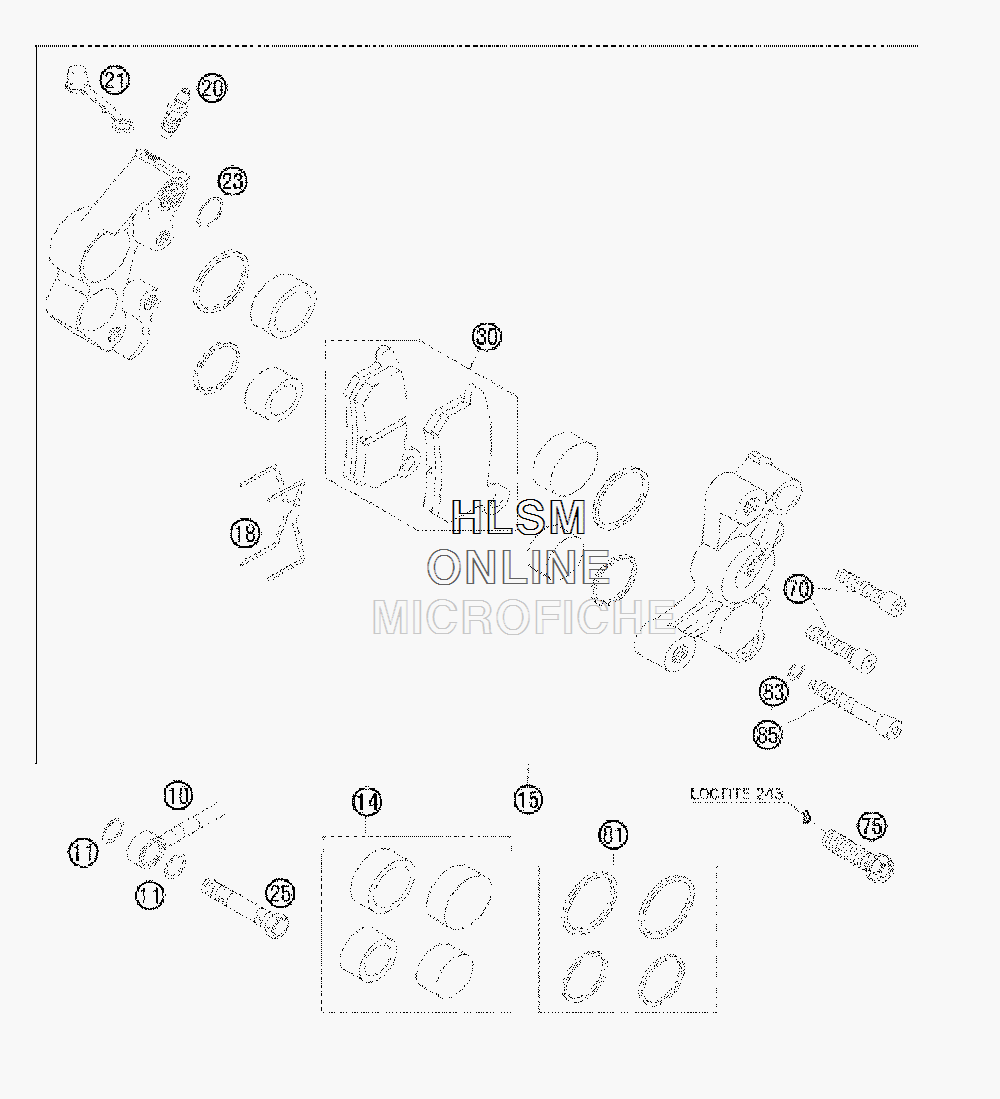

BRAKE CALIPER FRONT для Ktm 105 XC - 2009 года выпуска
-
№АртикулНазвание
-
1047013010000 BRAKE HOSE FRONT 85 SXBRAKE HOSE FRONT 85 SX
-
110770080019 O-RING 8,00X1,00 FORMULAO-RING 8,00X1,00 FORMULA
-
1446113019050 REPAIR KIT BRAKEPISTONREPAIR KIT BRAKEPISTON
-
1547013015000 BRAKE CALIPER FR. CPL.85 SXBRAKE CALIPER FR. CPL.85 SX
-
1846113018000 RETAINING SPRING 65 SXRETAINING SPRING 65 SX
-
2047013020000 BLEEDER SCREW M6BLEEDER SCREW M6
-
2147013021000 CAP FOR BLEEDER SCREWCAP FOR BLEEDER SCREW
-
230770100019 O-RING 10X1 EPDMO-RING 10X1 EPDM
-
2547013125000 HOLLOW SCREW M8X38,8HOLLOW SCREW M8X38,8
-
3046113030000 BRAKE PAD SET FRONTBRAKE PAD SET FRONT
-
700912060283 AH SCREW DIN0912-M 6X28AH SCREW DIN0912-M 6X28
-
750025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
8146113019000 REPAIR KIT SEAL RINGREPAIR KIT SEAL RING
-
830799040009 TAB WASHER DIN6799-RA 4,0TAB WASHER DIN6799-RA 4,0
-
8546113125000 AH SCREW + CIRCLIPAH SCREW + CIRCLIP
