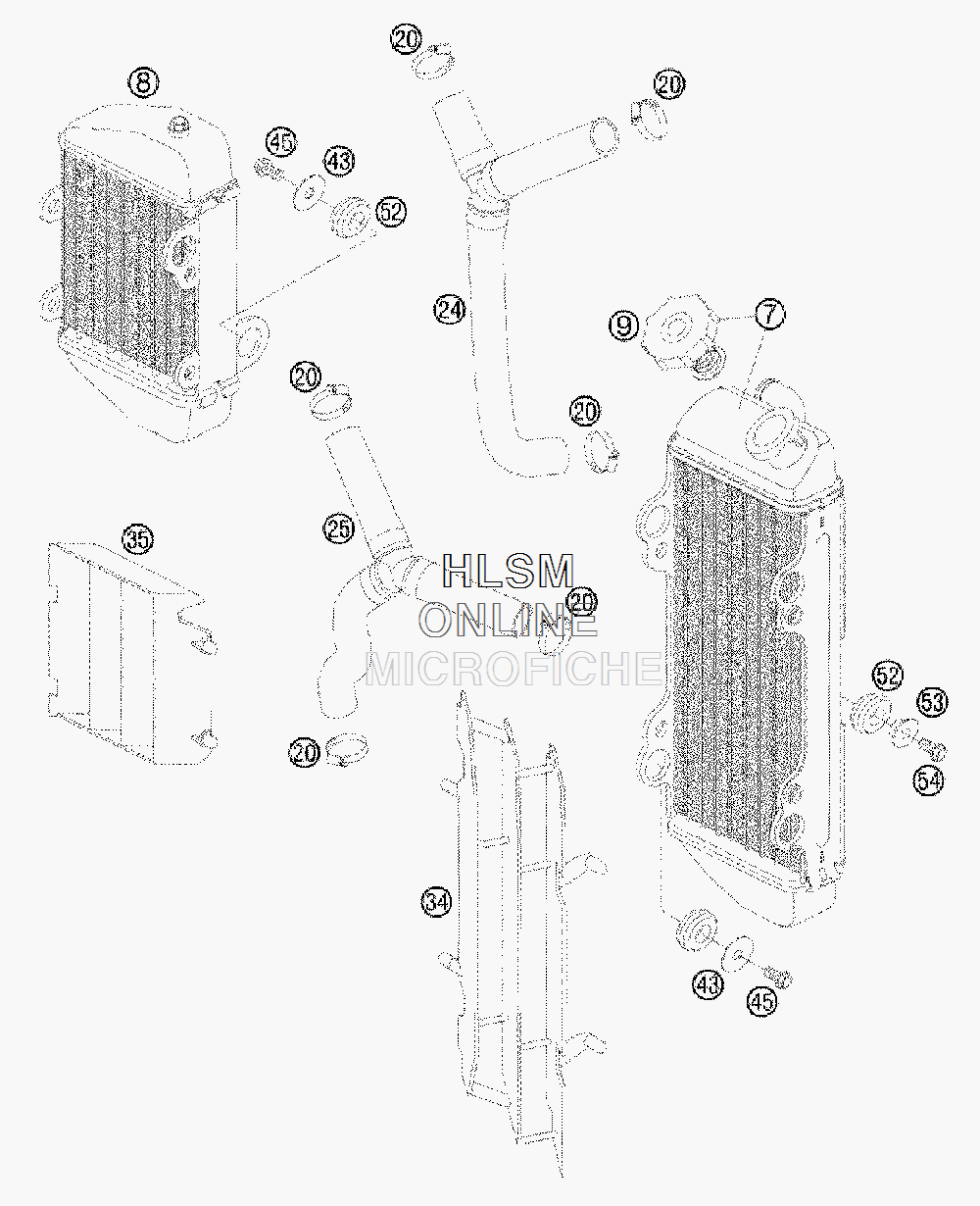

COOLING SYSTEM для Ktm 105 XC - 2009 года выпуска
-
№АртикулНазвание
-
747035007100 RADIATOR L/SRADIATOR L/S
-
847035008000 RADIATOR R/SRADIATOR R/S
-
959035009000 RADIAT.CAP 20,3PSIRADIAT.CAP 20,3PSI
-
2010001020000 HOSE CLAMP GEMI 16-27HOSE CLAMP GEMI 16-27
-
2447035024000 RADIATOR HOSE TOPRADIATOR HOSE TOP
-
2547035025000 RADIATOR HOSE BOTTOMRADIATOR HOSE BOTTOM
-
345463503420030 RADIATOR PROTECTOR L. BLACKRADIATOR PROTECTOR L. BLACK
-
354703503500030 RADIATOR PROTECTOR R. BLACKRADIATOR PROTECTOR R. BLACK
-
430021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
450015060123 HH COLLAR SCREW M 6X12HH COLLAR SCREW M 6X12
-
5241001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
5350308053000 BUSH FOR SPOILER 6X11X16X7,5BUSH FOR SPOILER 6X11X16X7,5
-
540015060163 HH COLLAR SCREW M 6X16HH COLLAR SCREW M 6X16
