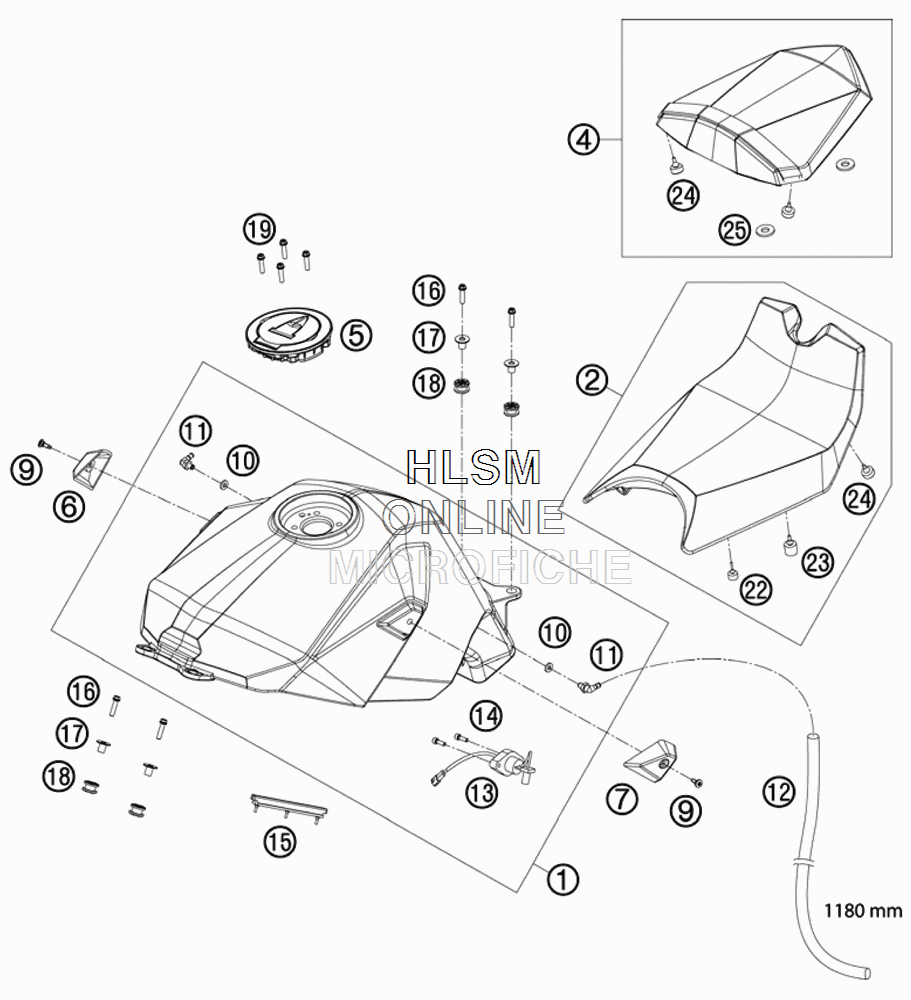

TANK SEAT COVER для Ktm 1190 RC 8 (SERIAL 9M953734-9M953793) - 2009 года выпуска
-
№АртикулНазвание
-
16900701304475A FUEL TANK CPL. ORANGE MATT RC8FUEL TANK CPL. ORANGE MATT RC8
-
269007040000 RIDERґS SEATRIDERґS SEAT
-
469007047000 PASSENGER SEATPASSENGER SEAT
-
569007008000 TANK CAPTANK CAP
-
66900702600033 TANK PROT. R/S BLACK MATTTANK PROT. R/S BLACK MATT
-
76900702500033 TANK PROT. L/S BLACK MATTTANK PROT. L/S BLACK MATT
-
969008021060 SPECIAL SCREW M5X17SPECIAL SCREW M5X17
-
1060007024050 GASKET FOR CONNECTING PIECEGASKET FOR CONNECTING PIECE
-
1160007024000 CONNECT.PIECE F.OVERFLOW M7CONNECT.PIECE F.OVERFLOW M7
-
1260007026001 HOSE NBR 5,4X9,4 PER METERHOSE NBR 5,4X9,4 PER METER
-
1358207080100 GAS-LEVEL SENSOR ADV.GAS-LEVEL SENSOR ADV.
-
140912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
1569007014000 TANK REST RUBBERTANK REST RUBBER
-
160025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
1769007028000 COLLAR BUSH. 6,2X10X21X14MMCOLLAR BUSH. 6,2X10X21X14MM
-
1869007027000 RUBBER SLEEVE TANK MOUNTRUBBER SLEEVE TANK MOUNT
-
190912050123 AH SCREW DIN0912-M 5X12AH SCREW DIN0912-M 5X12
-
2269007040010 DISTANCE RUBBER 14X8DISTANCE RUBBER 14X8
-
2369007040020 DISTANCE RUBBER 17,8X16DISTANCE RUBBER 17,8X16
-
2469007040030 DISTANCE RUBBER 18X8DISTANCE RUBBER 18X8
-
2569007047020 PLATE RUBBER WASHERPLATE RUBBER WASHER
