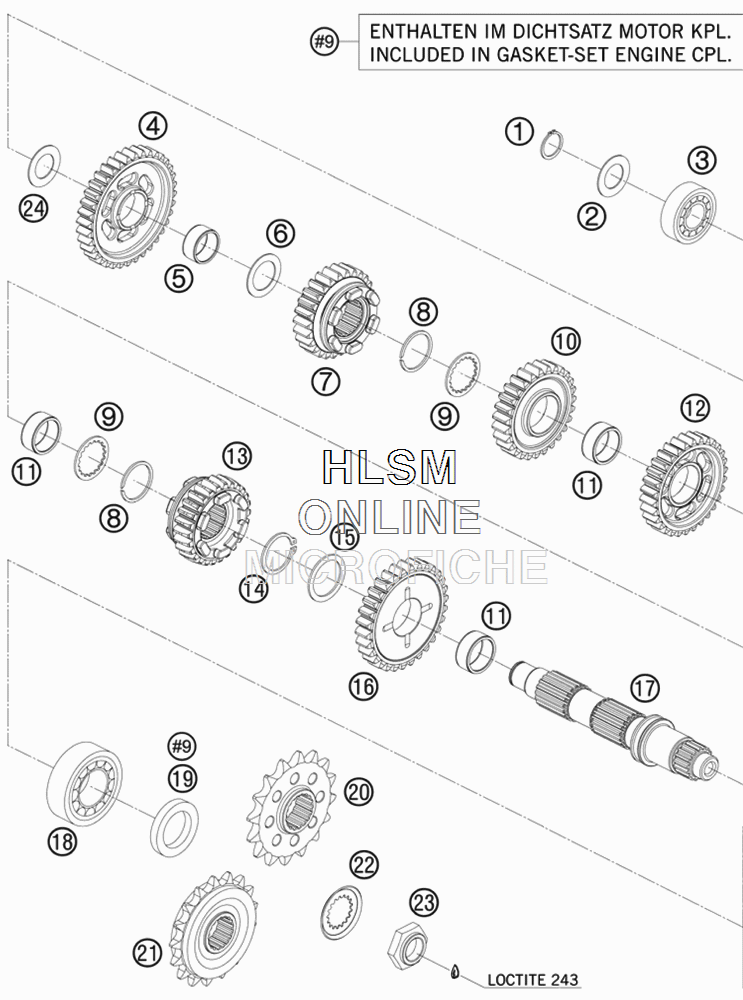

TRANSMISSION II - COUNTERSHAFT для Ktm 1190 RC 8 (SERIAL 9M953734-9M953793) - 2009 года выпуска
-
№АртикулНазвание
-
10471200120 CIRCLIP DIN471 20X1,2CIRCLIP DIN471 20X1,2
-
260033040010 STOP DISK 20,2X28X1,0STOP DISK 20,2X28X1,0
-
260033040011 STOP DISK 20,2X28X1,1STOP DISK 20,2X28X1,1
-
260033040012 STOP DISK 20,2X28X1,2STOP DISK 20,2X28X1,2
-
260033040013 STOP DISK 20,2X28X1,3STOP DISK 20,2X28X1,3
-
260033040014 STOP DISK 20,2X28X1,4STOP DISK 20,2X28X1,4
-
260033040015 STOP DISK 20,2X28X1,5STOP DISK 20,2X28X1,5
-
30625062043 BALL BEARING 6204 J1 C3BALL BEARING 6204 J1 C3
-
461233011000 IDLER GEAR 1.GIDLER GEAR 1.G
-
50405242813 NEEDLE BEAR. K 24X28X13 TNNEEDLE BEAR. K 24X28X13 TN
-
660033044000 STOP DISK 24,3/35,75/1STOP DISK 24,3/35,75/1
-
761233015000 SLIDING GEAR 5.GSLIDING GEAR 5.G
-
80417290151 LOCK RING WS30LOCK RING WS30
-
961233045000 STOP DISK 27/36/1,5STOP DISK 27/36/1,5
-
1061233014000 IDLER GEAR 4.GIDLER GEAR 4.G
-
110405263113 NEEDLE BEAR. K 26-31-13NEEDLE BEAR. K 26-31-13
-
1261233013000 IDLER GEAR 3.GIDLER GEAR 3.G
-
1361233016000 SLIDING GEAR 6.GSLIDING GEAR 6.G
-
140471300151 CIRCLIP DIN0471-30X1,5 NIROCIRCLIP DIN0471-30X1,5 NIRO
-
1561233046000 STOP DISK 29,9/39/1,5STOP DISK 29,9/39/1,5
-
1661233012000 IDLER GEAR 2.GIDLER GEAR 2.G
-
1761233010000 COUNTER SHAFTCOUNTER SHAFT
-
1850330082000 CYL.ROLLER BEAR.NJ206 ET2XCS46CYL.ROLLER BEAR.NJ206 ET2XCS46
-
190760304772 SH.SEAL RING 30X47X7 BSL VITONSH.SEAL RING 30X47X7 BSL VITON
-
2060033029016 CHAIN SPROCKET 16-TCHAIN SPROCKET 16-T
-
2060033029017 CHAIN SPROCKET 17-TCHAIN SPROCKET 17-T
-
2160033129017 CHAIN SPROCKET 17-T DAMPEDCHAIN SPROCKET 17-T DAMPED
-
2260033034000 SECURING PLATE TOOTHEDSECURING PLATE TOOTHED
-
2360033035000 HEXAGON NUT M20X1,5HEXAGON NUT M20X1,5
-
2460033043000 STOP DISK 20,2 X 34 X 1STOP DISK 20,2 X 34 X 1
