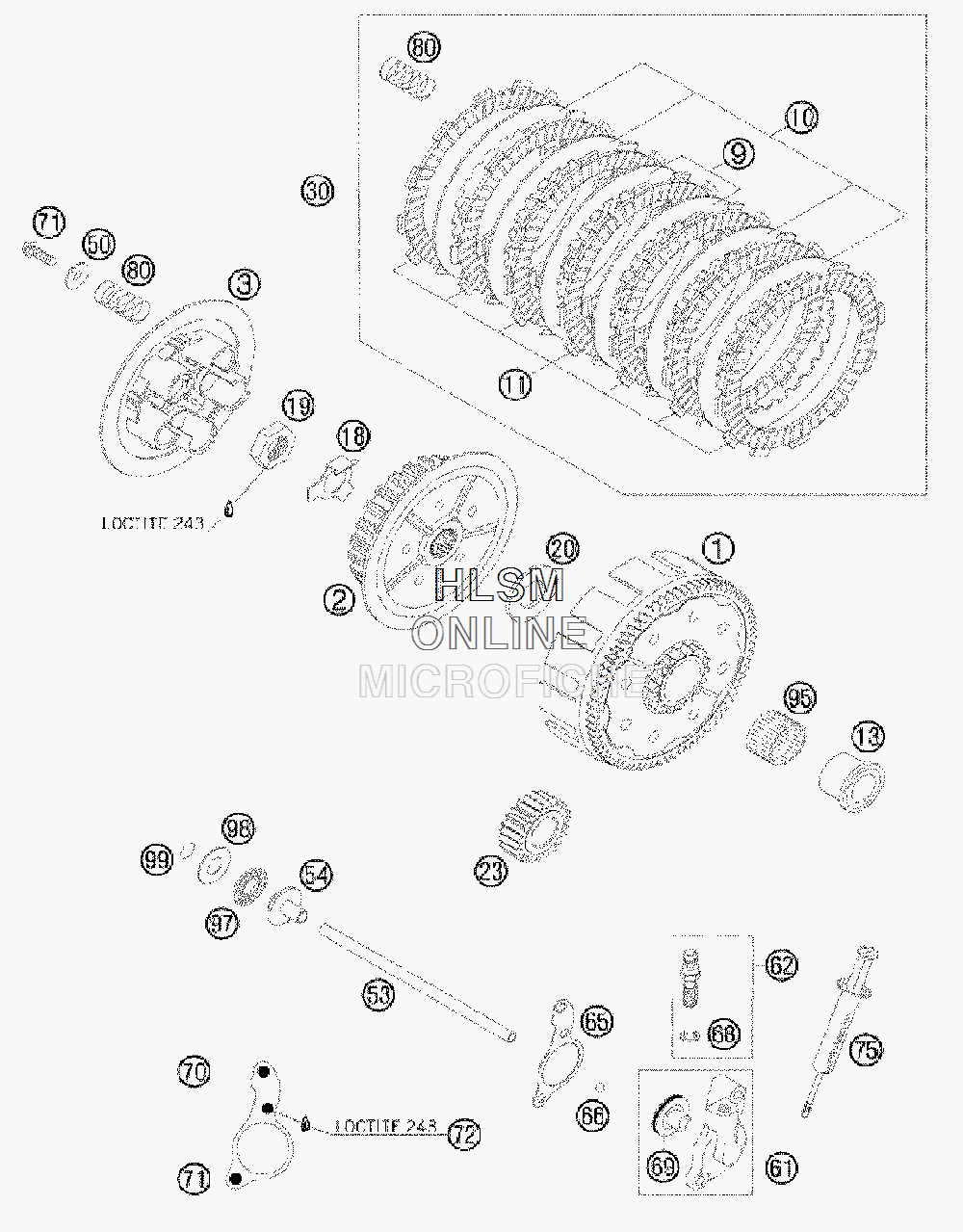

CLUTCH для Ktm 200 XC - 2009 года выпуска
-
№АртикулНазвание
-
150332000073 OUTER CLUTCH H.73-T 125/200 WITHOUT PRIMARYOUTER CLUTCH H.73-T 125/200 WITHOUT PRIMARY
-
250332002100 INNER CLUTCH HUB 125/200INNER CLUTCH HUB 125/200
-
350332003100 PRESSURE PLATE 1257200PRESSURE PLATE 1257200
-
950332010100 INTERMEDI. DISC STEEL 1,5MMINTERMEDI. DISC STEEL 1,5MM
-
1050332010000 INTERM'IATE DISC ALU 1,5MMINTERM'IATE DISC ALU 1,5MM
-
1177032011000 LINING DISC 3,0MMLINING DISC 3,0MM
-
1350332013000 INNER RING 20X26X25,9INNER RING 20X26X25,9
-
1850332018000 SHEET METAL LOCK 1,5MMSHEET METAL LOCK 1,5MM
-
190936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
2050332020000 STOP DISK 20X39,6X3STOP DISK 20X39,6X3
-
2350332023023 PRIM. PINION 23-T 125/200PRIM. PINION 23-T 125/200
-
3050332011210 CLUTCH KIT 200CLUTCH KIT 200
-
5050232050000 WASHER 6,2X18X2WASHER 6,2X18X2
-
5350332017300 PUSH ROD L=178 125/200PUSH ROD L=178 125/200
-
5450332054051 PRESSURE PIECE 125-380PRESSURE PIECE 125-380
-
6150332061044 CYLINDER CPL.125/200CYLINDER CPL.125/200
-
6250332062000 HOLLOW SCREW CPL. M 10X1HOLLOW SCREW CPL. M 10X1
-
6550332065051 CLUTCH RELEASE GASKET 0,3MMCLUTCH RELEASE GASKET 0,3MM
-
6550332065052 CLUTCH RELEASE GASKET 0,5MMCLUTCH RELEASE GASKET 0,5MM
-
6550332065053 CLUTCH RELEASE GASKET 0,75MMCLUTCH RELEASE GASKET 0,75MM
-
660401070003 BALL DIN5401-7BALL DIN5401-7
-
6842013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
6950332066000 PISTON W. O-RING 125/200PISTON W. O-RING 125/200
-
700025060406 HH COLLAR SCREW M6X40HH COLLAR SCREW M6X40
-
710025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
720025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
7550329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
8052332005000 CLUTCH SPRING 2,4X40CLUTCH SPRING 2,4X40
-
9556532095000 NEEDLE BEARING K26X30X22ZW.KSENEEDLE BEARING K26X30X22ZW.KSE
-
9754637097200 AXIAL NEEDLE BEARING AXK 1226AXIAL NEEDLE BEARING AXK 1226
-
9854637098200 AXIAL WASHER AS1226 12X26X1AXIAL WASHER AS1226 12X26X1
-
9854637098300 AXIAL WASHER 12,5X25,8X1,5AXIAL WASHER 12,5X25,8X1,5
-
990993012000 CIRCLIP DIN7993-RW12CIRCLIP DIN7993-RW12
