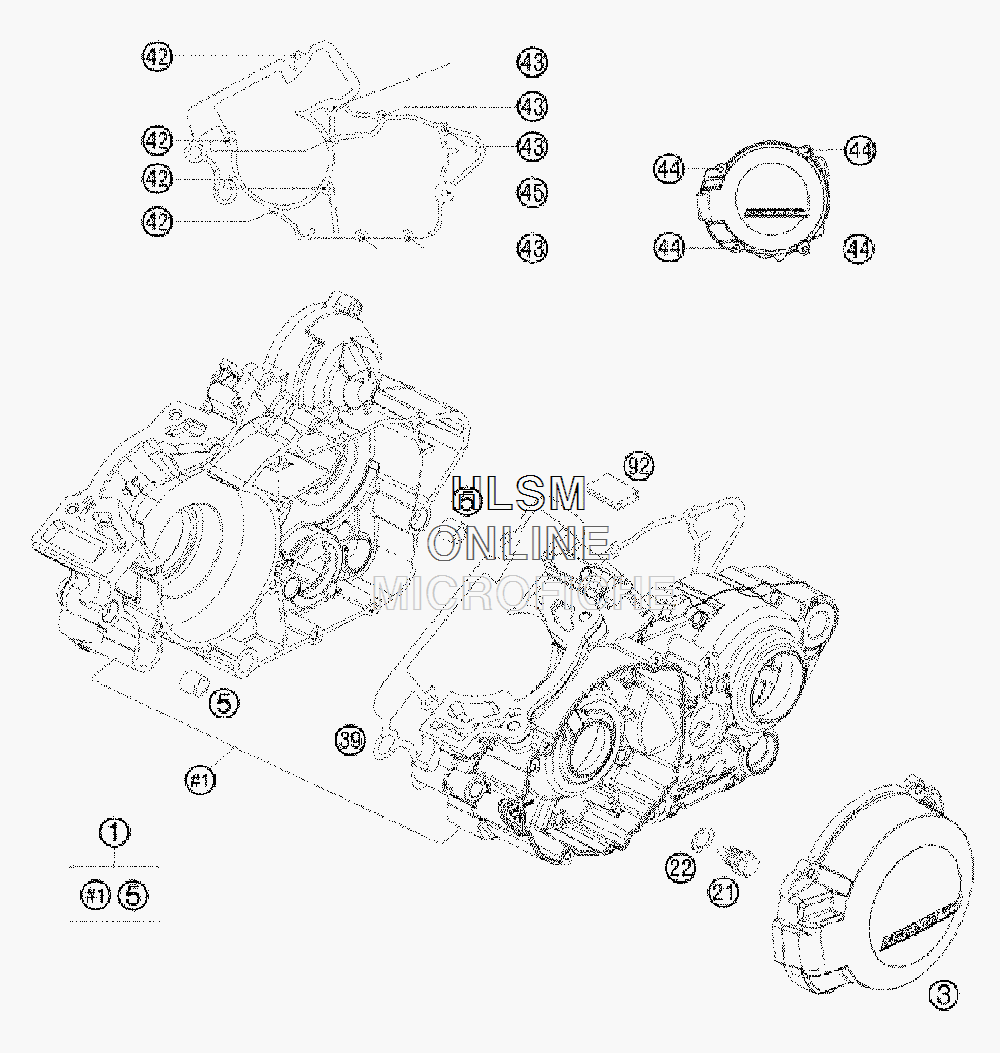

ENGINE CASE для Ktm 200 XC - 2009 года выпуска
-
№АртикулНазвание
-
151530000044 ENGINE CASE CPL W.TRAN.BEAR.07ENGINE CASE CPL W.TRAN.BEAR.07
-
350330002400 IGNITION COVERIGNITION COVER
-
554630027000 DOWEL BUSHING 13,8X11X12DOWEL BUSHING 13,8X11X12
-
2158030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
2258038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
3950330039000 ENGINE CASE GASKET 0,5MMENGINE CASE GASKET 0,5MM
-
420025060506 HH COLLAR SCREW M6X50HH COLLAR SCREW M6X50
-
430025060556 HH COLLAR SCREW M6X55HH COLLAR SCREW M6X55
-
440014050163 HH COLLAR SCREW M 5X16HH COLLAR SCREW M 5X16
-
450025060606 HH COLLAR SCREW M6X60HH COLLAR SCREW M6X60
-
9250330092000 OIL GUARD GROMMET 25X31OIL GUARD GROMMET 25X31
