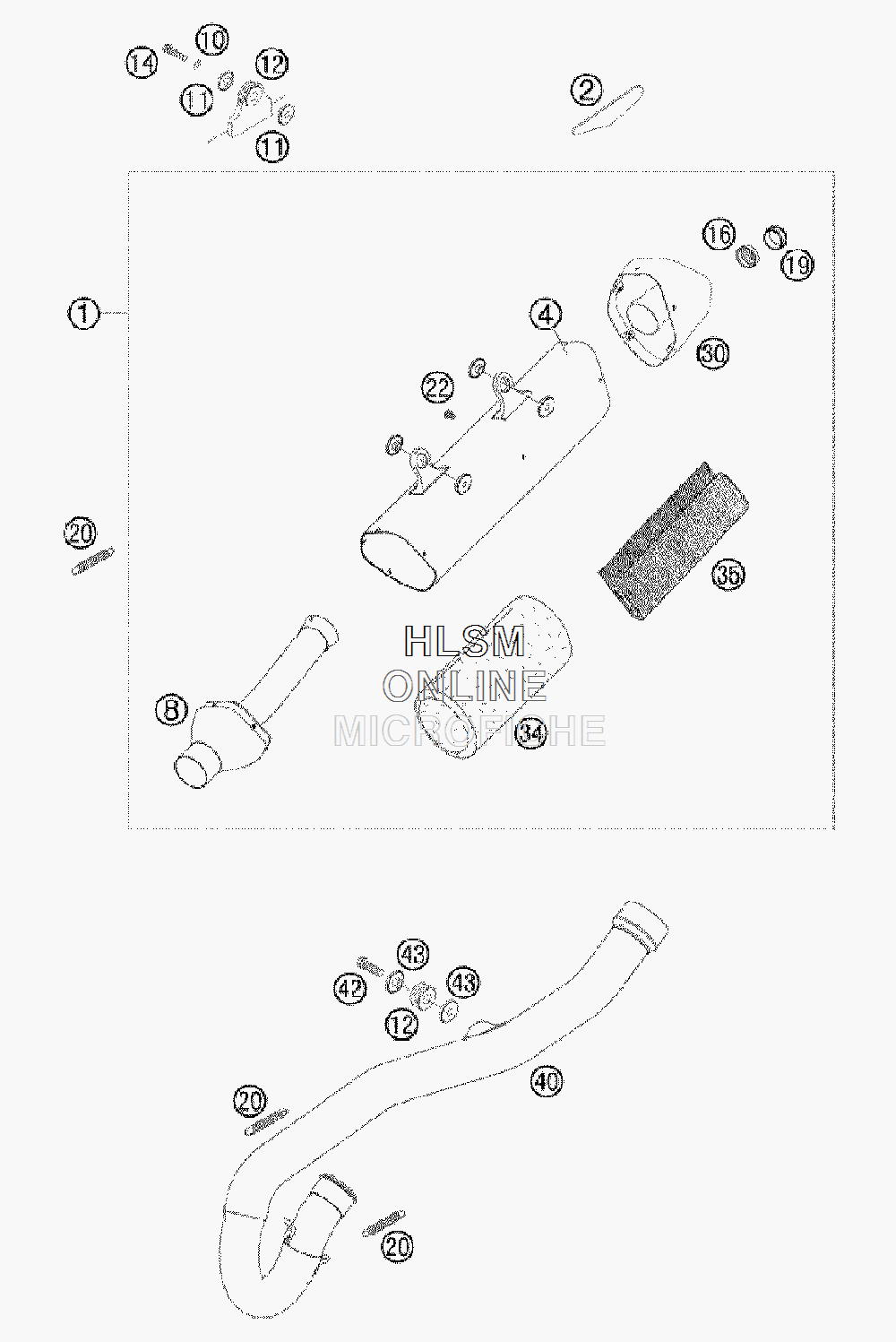

EXHAUST SYSTEM для Ktm 250 XC-FW USA - 2009 года выпуска
-
№АртикулНазвание
-
178005082000 EXHAUST SILENCER SPARKY XCF-WEXHAUST SILENCER SPARKY XCF-W
-
277308013050 THERMAL PROTECTION FOILTHERMAL PROTECTION FOIL
-
478005082050 SILENCER HOUSING XC-F USASILENCER HOUSING XC-F USA
-
877005081009 SIL. CONNECT. CAP CPL.EXC-FSIL. CONNECT. CAP CPL.EXC-F
-
100137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
1177305069000 BUSHING 7.5X12X28X7.6BUSHING 7.5X12X28X7.6
-
1254605068000 EXHAUST BRACKET RUBBER BLACKEXHAUST BRACKET RUBBER BLACK
-
140025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
1677005081065 THROTTLE ELEMENT CPL. EXCTHROTTLE ELEMENT CPL. EXC
-
1977005081055 SIL. ELEMENT EXC-FSIL. ELEMENT EXC-F
-
2050305016000 TEN.SPRING L=62MM EY.MOVEABLETEN.SPRING L=62MM EY.MOVEABLE
-
2258605083010 SCREW TORX M5X10SCREW TORX M5X10
-
3083005082070 ENDCAP SPARKY ATVENDCAP SPARKY ATV
-
3458705078350 STUFFINGYARN 350 GRAMMSTUFFINGYARN 350 GRAMM
-
3577005081016 STUFFING YARN EXC-FSTUFFING YARN EXC-F
-
4077005007100 EXHAUST MANIFOLD 250 EXC-FEXHAUST MANIFOLD 250 EXC-F
-
420025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
4359405069000 BUSHING FOR EXHAUST SUPPORTBUSHING FOR EXHAUST SUPPORT
