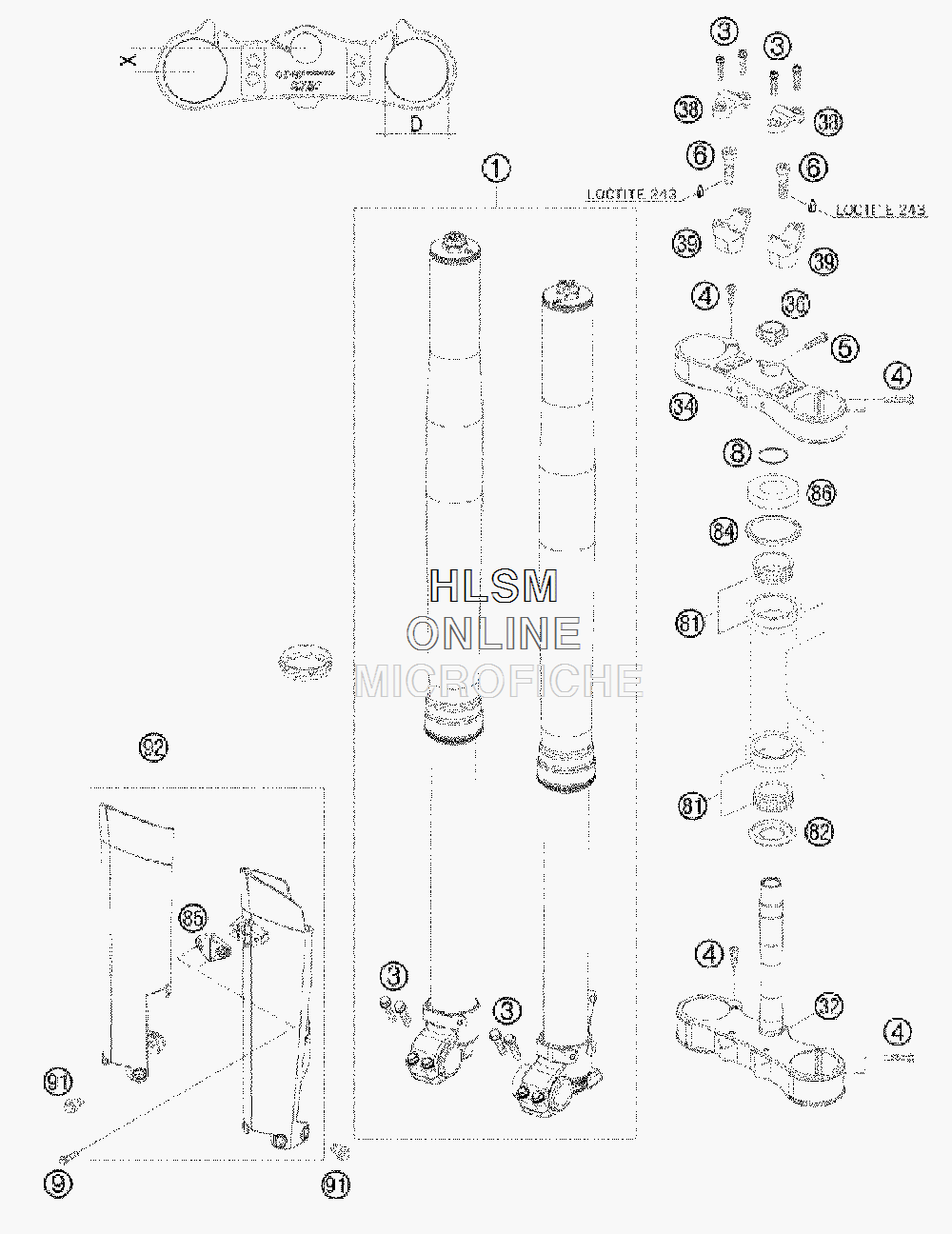

FRONT FORK TRIPLE CLAMP для Ktm 250 XC-W - 2009 года выпуска
-
№АртикулНазвание
-
114187E0401 FORK KTM 250/300 EXC/F/WFORK KTM 250/300 EXC/F/W
-
30025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
40025080356 HH COLLAR SCREW M8X35HH COLLAR SCREW M8X35
-
50025080256S HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
60912100356 AH SCREW DIN6912-M10X35 10.9AH SCREW DIN6912-M10X35 10.9
-
80770025035 O-RING 25X3,55 NBR70O-RING 25X3,55 NBR70
-
90017060204 EJOT PT SCREW K60X20 ALUEJOT PT SCREW K60X20 ALU
-
327800103201930 BOT. TRI. CLAMP CPL. X=19MMBOT. TRI. CLAMP CPL. X=19MM
-
345940103401930 TOP TRIPLE CLAMP D=54MMTOP TRIPLE CLAMP D=54MM
-
3654801036000 STEER.HEAD SCREW M20X1,5STEER.HEAD SCREW M20X1,5
-
3859401038000 HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
3959401039037 HANDLEB.SUPP. D=28MM H=37MMHANDLEB.SUPP. D=28MM H=37MM
-
8154201081100 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
8254601084200 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
8454601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
857800108500004 CLAMP FOR SPEED CABLE D=6MMCLAMP FOR SPEED CABLE D=6MM
-
8654201086000 STEERING HEAD COVERSTEERING HEAD COVER
-
9159001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
927800109400004 FORK PROTECTOR LE+R I ORANGEFORK PROTECTOR LE+R I ORANGE
