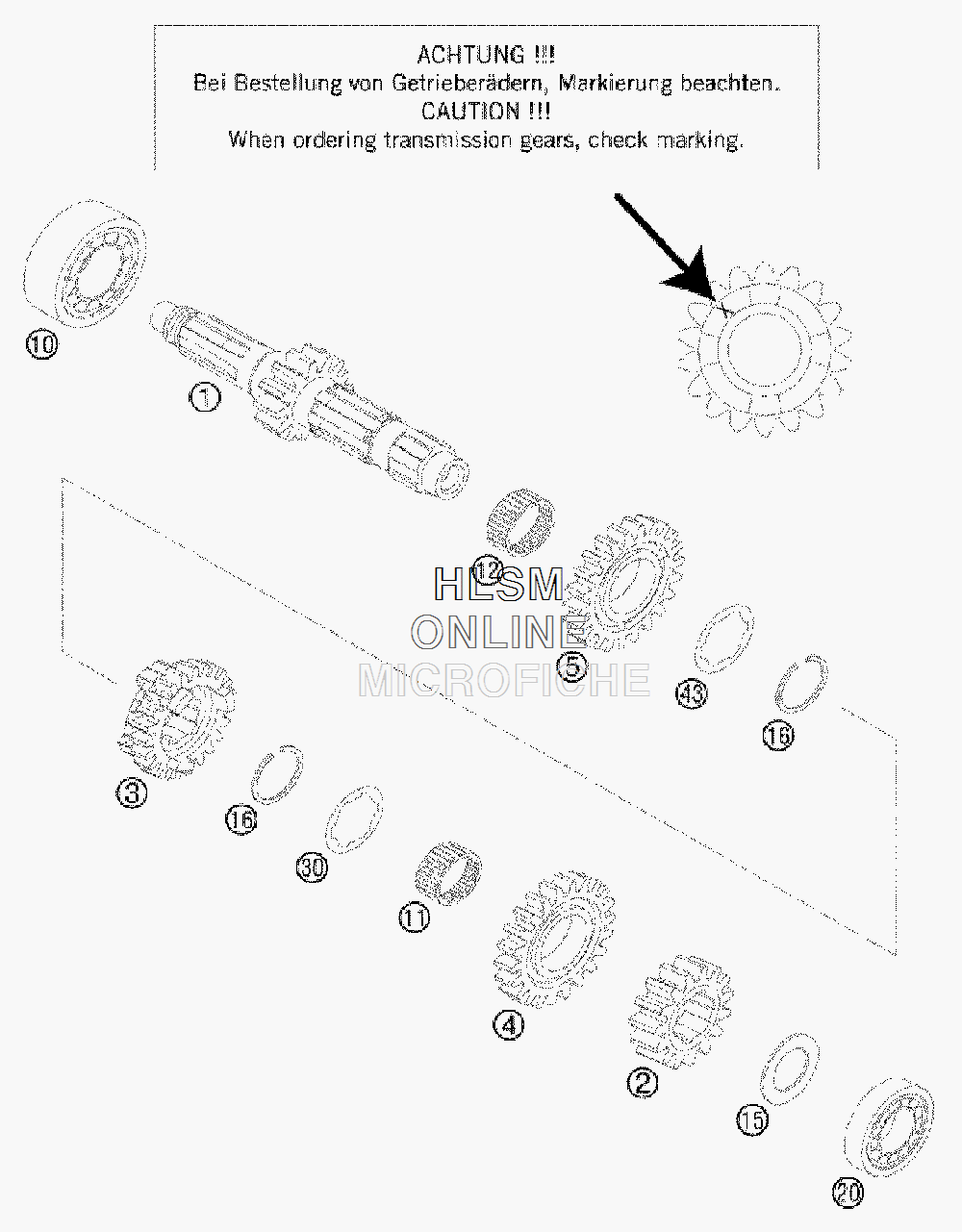

TRANSMISSION I - MAIN SHAFT для Ktm 250 XC-W - 2009 года выпуска
-
№АртикулНазвание
-
154833101000 MAIN SHAFT 14-T ''1E14''MAIN SHAFT 14-T ''1E14''
-
254833102000 SOLID GEAR 2ND G. 17-T ''2E17''SOLID GEAR 2ND G. 17-T ''2E17''
-
354833103000 SLIDING GEAR 3RD G.19-T ''3E19''SLIDING GEAR 3RD G.19-T ''3E19''
-
454833104000 IDLER GEAR 4TH G. 20-T ''4E20''IDLER GEAR 4TH G. 20-T ''4E20''
-
554833105000 IDLER GEAR 5TH G. 29-T ''5E29''IDLER GEAR 5TH G. 29-T ''5E29''
-
100625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
110405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
120405242812 NEDDLE BEAR. K24X28X11,9 DIV.NEDDLE BEAR. K24X28X11,9 DIV.
-
1554633015000 STOP DISK 20,2X33X1,5STOP DISK 20,2X33X1,5
-
1677033022000 AXIAL-CIRCLIP 25X1,65AXIAL-CIRCLIP 25X1,65
-
200625160040 GROOVED BALL BEAR. TM 16004 C3GROOVED BALL BEAR. TM 16004 C3
-
3059033030000 STOP DISC 25,2X32X1,5STOP DISC 25,2X32X1,5
-
4350333043000 STOP DISC 25,2X32X1STOP DISC 25,2X32X1
