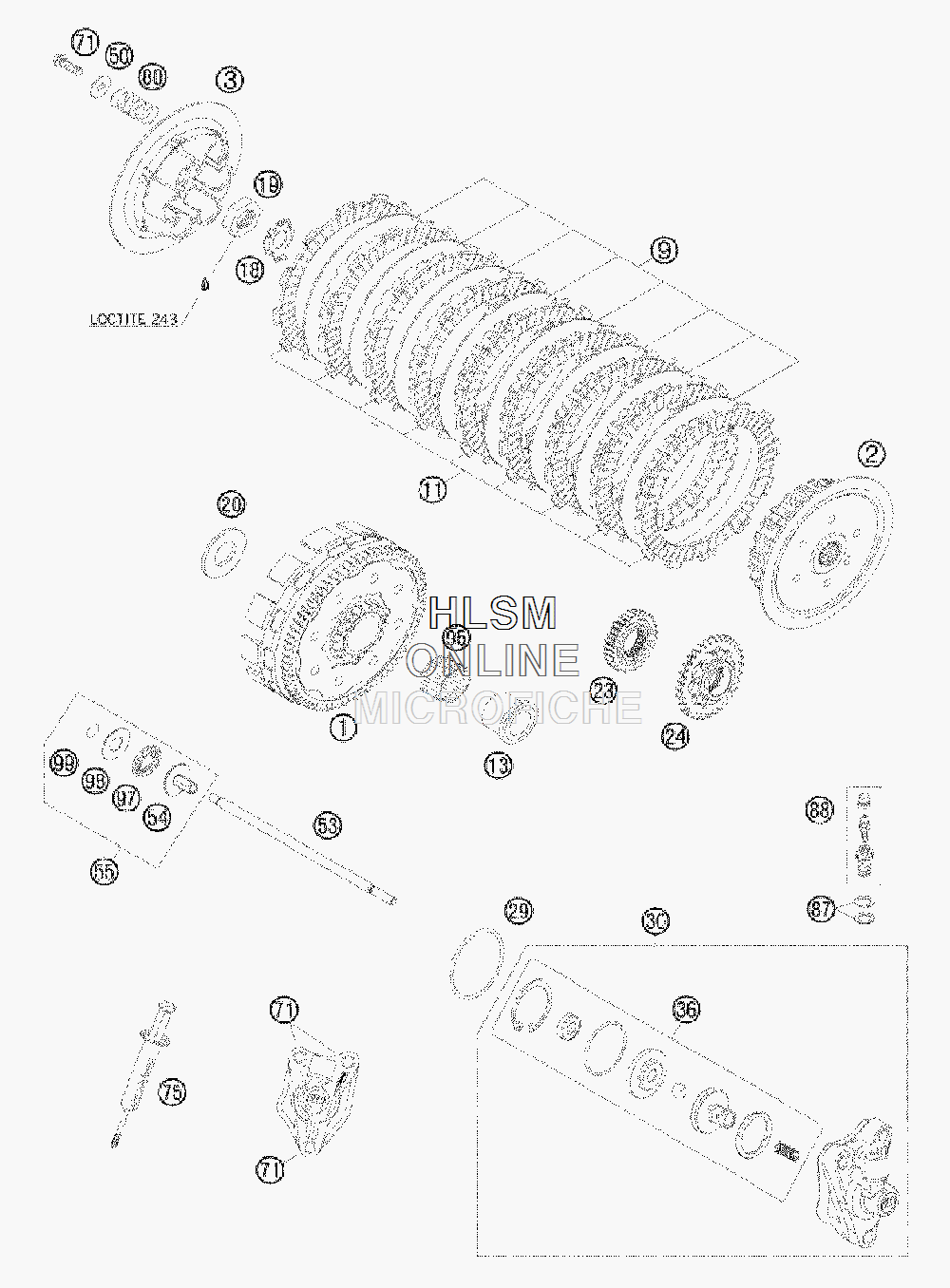

CLUTCH для Ktm 450 XC-F - 2009 года выпуска

№

Артикул

Название
1

77332001244 OUTER CLUTCH CPL.

OUTER CLUTCH CPL.

142 460 ₽
2

77332002200 INNER CLUTCH HUB

INNER CLUTCH HUB

42 640 ₽
3

77332003000 PRESSURE PLATE

PRESSURE PLATE

23 540 ₽
9

77332010000 INTERMEDI. DISC STEEL

INTERMEDI. DISC STEEL

2 720 ₽
11

77332011000 LINING DISC 2,7MM

LINING DISC 2,7MM

7 770 ₽
13

77332015100 INNER RING

INNER RING

6 130 ₽
18

77332018000 RETAINING PLATE

RETAINING PLATE

880 ₽
19

0936181505 HEXAGON NUT DIN0936-M18X1,5 R.

HEXAGON NUT DIN0936-M18X1,5 R.

2 080 ₽
20

77332017100 WASHER 21,7X38X4

WASHER 21,7X38X4

4 940 ₽
23

77332023129 PRIMARY GEAR

PRIMARY GEAR

22 250 ₽
24

77330055110 DRIVE WHEEL AGZR KS Z=32

DRIVE WHEEL AGZR KS Z=32

35 840 ₽
29

0770380020 O-RING 38,00X2,00 NBR 70 SH

O-RING 38,00X2,00 NBR 70 SH

700 ₽
30

77332061044 OUTPUT CYLINDER CPL.

OUTPUT CYLINDER CPL.

72 660 ₽
36

77332066000 PISTON CPL.

PISTON CPL.

20 590 ₽
50

50232050000 WASHER 6,2X18X2

WASHER 6,2X18X2

1 140 ₽
53

77332054100 PUSH ROD

PUSH ROD

3 330 ₽
54

77332057100 PRESSURE PIECE

PRESSURE PIECE

3 390 ₽
55

77332057144 PRESSURE PIECE CPL.

PRESSURE PIECE CPL.

5 550 ₽
71

0025060256 HH COLLAR SCREW M6X25

HH COLLAR SCREW M6X25

560 ₽
75

50329050000 VENT INJEKTION HYDR. CLUTCH

VENT INJEKTION HYDR. CLUTCH

14 520 ₽
80

77332005000 CLUTCH SPRING

CLUTCH SPRING

2 570 ₽
87

42013226000 CU-SEAL RING DIN7603-10X16X1

CU-SEAL RING DIN7603-10X16X1

440 ₽
88

62513020000 BLEEDER SCREW CPL.

BLEEDER SCREW CPL.

7 390 ₽
95

56532095000 NEEDLE BEARING K26X30X22ZW.KSE

NEEDLE BEARING K26X30X22ZW.KSE

6 430 ₽
97

54637097200 AXIAL NEEDLE BEARING AXK 1226

AXIAL NEEDLE BEARING AXK 1226

2 750 ₽
98

54637098200 AXIAL WASHER AS1226 12X26X1

AXIAL WASHER AS1226 12X26X1

1 380 ₽
99

0993012000 CIRCLIP DIN7993-RW12

CIRCLIP DIN7993-RW12

590 ₽
