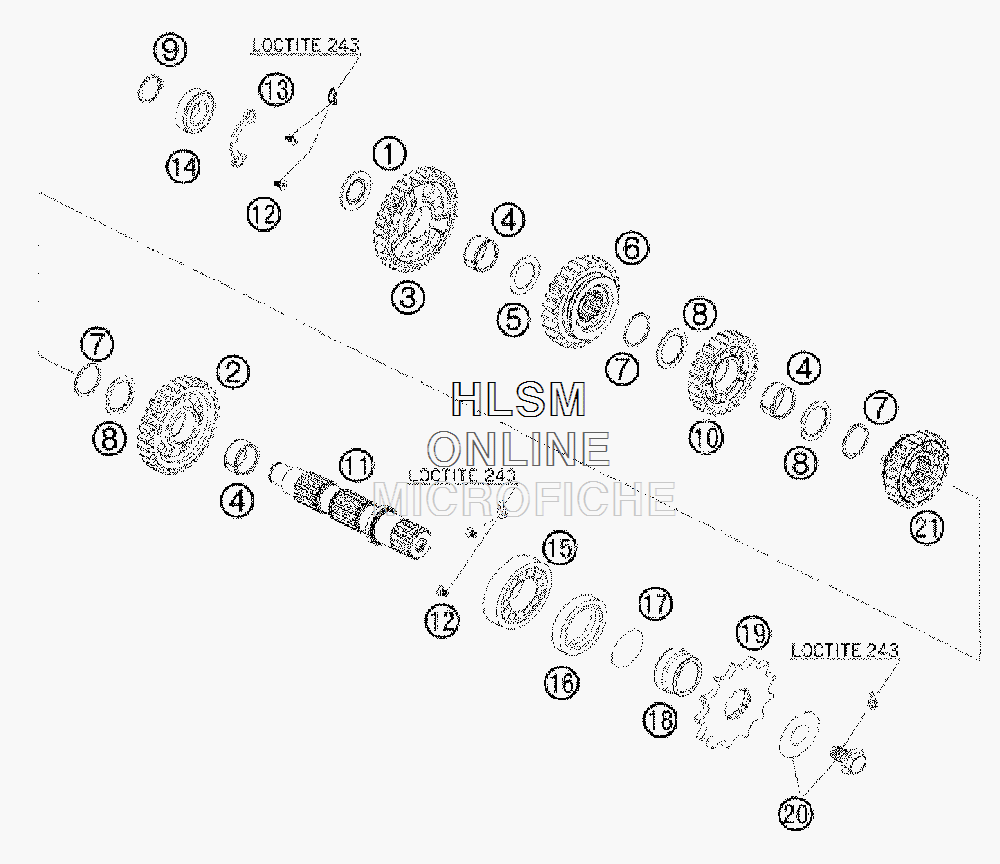

TRANSMISSION II - COUNTERSHAFT для Ktm 450 XC-F - 2009 года выпуска

№

Артикул

Название
1

77333045000 STOP DISC 17,1X32X2,6

STOP DISC 17,1X32X2,6

1 140 ₽
2

77333312000 IDLER GEAR 2.G

IDLER GEAR 2.G

26 730 ₽
3

77333311000 IDLER GEAR 1.G

IDLER GEAR 1.G

25 580 ₽
4

0405222613 NEEDLE BEAR. K 22X26X13 TN

NEEDLE BEAR. K 22X26X13 TN

2 340 ₽
5

77333044000 STOP DISC 22,2X32X1,5

STOP DISC 22,2X32X1,5

1 140 ₽
6

77333313000 SLIDING GEAR 3RD G

SLIDING GEAR 3RD G

28 240 ₽
7

0417025000 CIRCLIP SW25

CIRCLIP SW25

790 ₽
8

78033033000 STOP DISK 23 X 32 X 1,5

STOP DISK 23 X 32 X 1,5

640 ₽
9

0471170015 CIRCLIP DIN 0471-17X1, 5

CIRCLIP DIN 0471-17X1, 5

210 ₽
10

77333314000 IDLER GEAR 4TH. G.

IDLER GEAR 4TH. G.

25 350 ₽
11

77333310000 COUNTERSHAFT

COUNTERSHAFT

28 070 ₽
12

0019050103 INT. TORX FLAT HEAD M 5X10 8.8

INT. TORX FLAT HEAD M 5X10 8.8

290 ₽
13

77333024100 BUSHING RETAINING PLATE

BUSHING RETAINING PLATE

850 ₽
14

0625062036 BALL BEARING 6203 RSH C3

BALL BEARING 6203 RSH C3

4 350 ₽
15

0402255215 CYL.ROLLER BEARING NUP205E C3

CYL.ROLLER BEARING NUP205E C3

21 530 ₽
16

0760354771 SHAFT SEAL RING 35X47X7 TC

SHAFT SEAL RING 35X47X7 TC

2 280 ₽
17

0770250015 O-RING 25,00X1,50 NBR 70

O-RING 25,00X1,50 NBR 70

60 ₽
18

77333219000 SPACER BUSHING

SPACER BUSHING

4 790 ₽
19

50033029013 SPROCKET 13-T

SPROCKET 13-T

8 110 ₽
19

50033029014 SPROCKET 14-T

SPROCKET 14-T

8 110 ₽
19

50033029015 SPROCKET 15-T

SPROCKET 15-T

7 100 ₽
20

59033034044 SCREW+SPRING WASHER

SCREW+SPRING WASHER

2 050 ₽
21

77333315000 SLIDING GEAR 5TD G

SLIDING GEAR 5TD G

26 170 ₽
