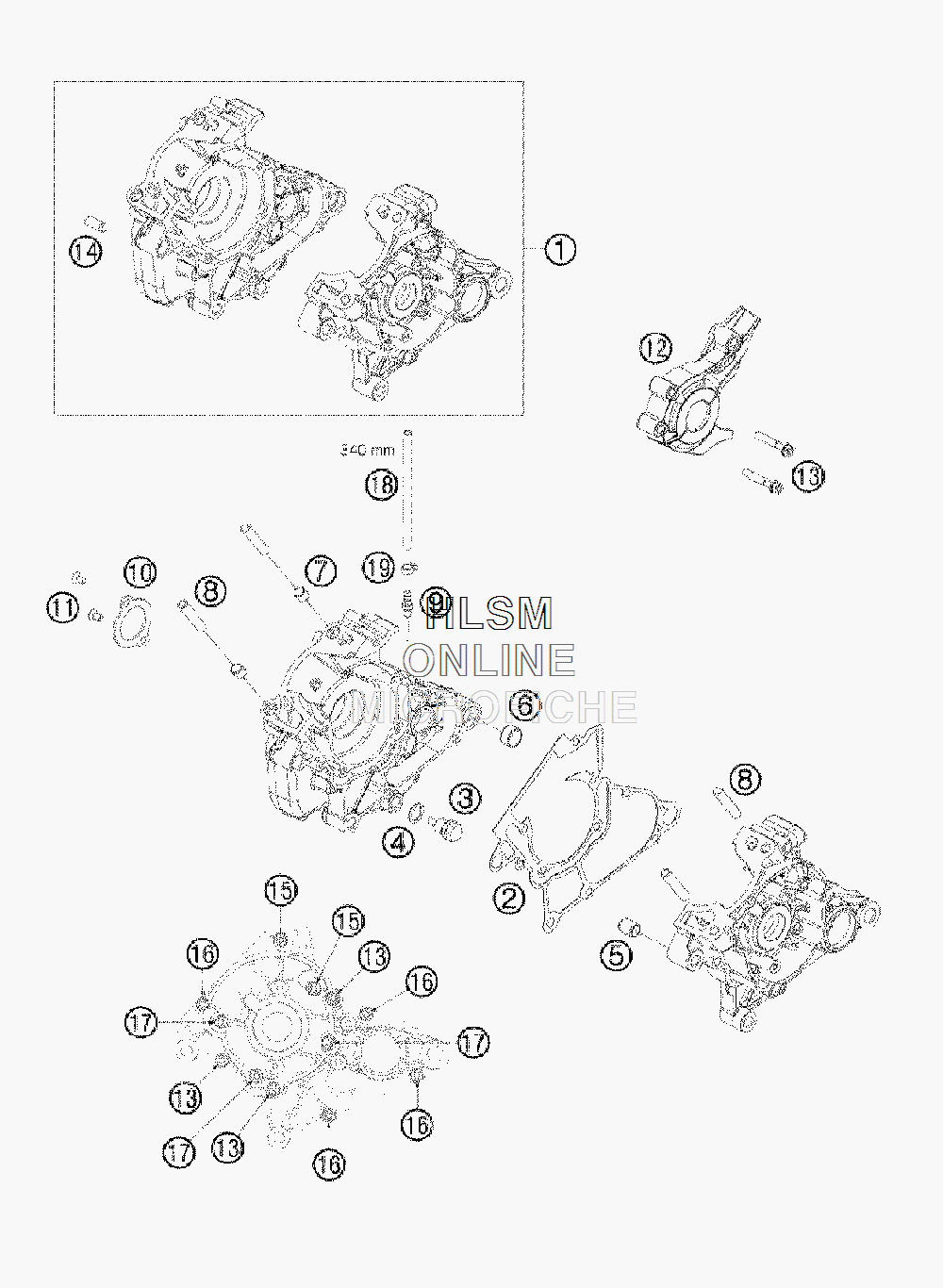

ENGINE CASE для Ktm 50 SX Mini - 2009 года выпуска
-
№АртикулНазвание
-
145230000033 ENGINE CASE CPL. + BEAR. 50 SXENGINE CASE CPL. + BEAR. 50 SX
-
245230039000 ENGINE CASE GASKETENGINE CASE GASKET
-
358030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
458038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
546230024000 DOWEL 12X9X14,5DOWEL 12X9X14,5
-
658330023000 DOWEL 17 X 14 X 9,5DOWEL 17 X 14 X 9,5
-
746230023000 DOWEL 10X8,2X10DOWEL 10X8,2X10
-
846030043000 STUD M8X41STUD M8X41
-
958336020190 VACUUM CONECTION M6/3MMVACUUM CONECTION M6/3MM
-
1045230017000 BEARING BRACKETBEARING BRACKET
-
110019050103 INT. TORX FLAT HEAD M 5X10 8.8INT. TORX FLAT HEAD M 5X10 8.8
-
1245230060000 CHAIN GUARDCHAIN GUARD
-
130025060356 HH COLLAR SCREW M6X35HH COLLAR SCREW M6X35
-
140325080200 CYLINDER STUD DIN6325 8X20 M6CYLINDER STUD DIN6325 8X20 M6
-
150025060556 HH COLLAR SCREW M6X55HH COLLAR SCREW M6X55
-
160025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
170025060406 HH COLLAR SCREW M6X40HH COLLAR SCREW M6X40
-
1831007007101 PVC-HOSE 4X6MMPVC-HOSE 4X6MM
-
1945230089000 YDNAC-CLAMP 10068 (6,8MM)YDNAC-CLAMP 10068 (6,8MM)
