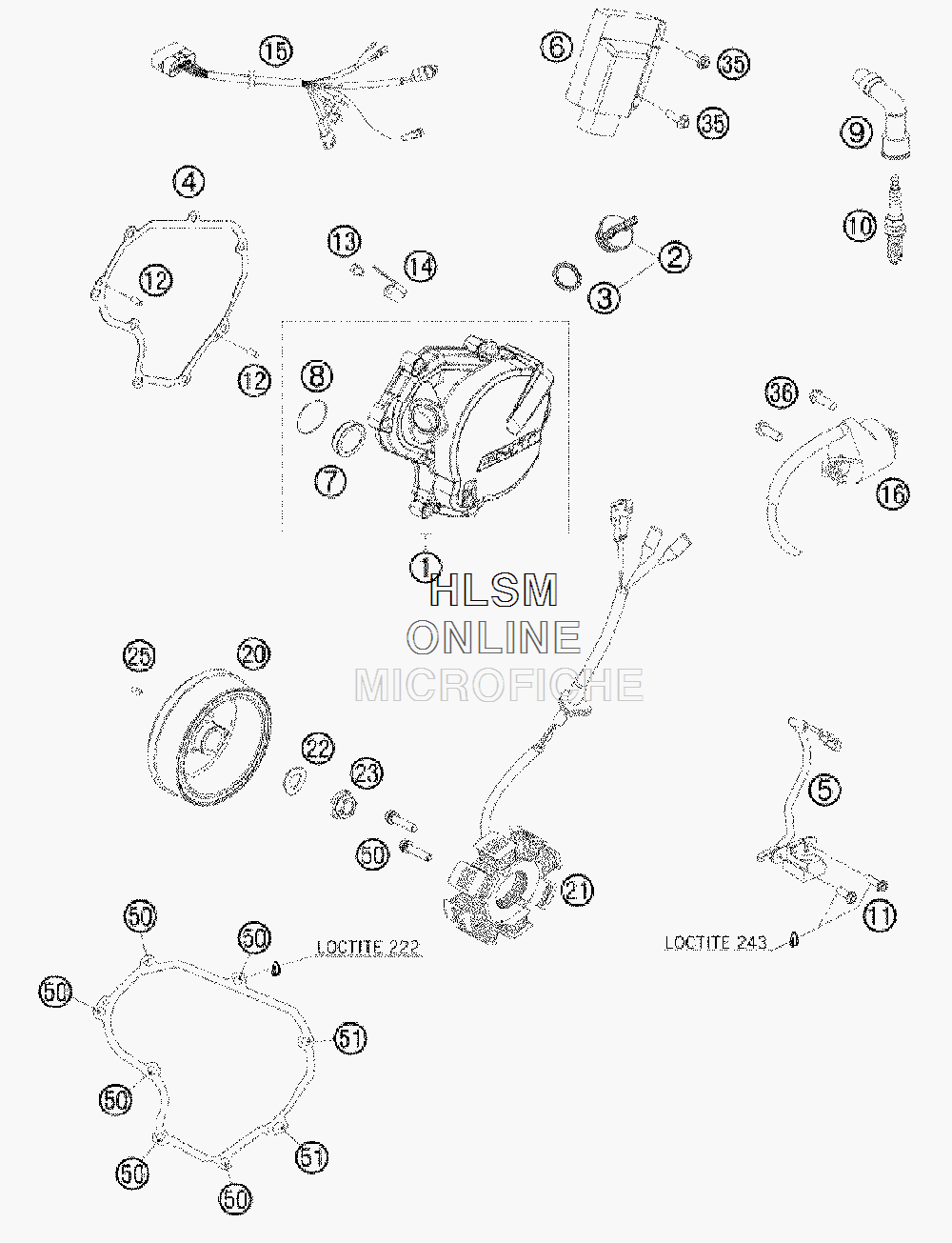

IGNITION SYSTEM для Ktm 530 EXC USA - 2009 года выпуска
-
№АртикулНазвание
-
17803000210015 IGNITION COVER EXCIGNITION COVER EXC
-
258030020100 PLUG CPL. M24X3PLUG CPL. M24X3
-
30770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
478030040000 GASKET IGNITION COVERGASKET IGNITION COVER
-
577339034000 PULSER COIL KOKUSAN ''PU5165''PULSER COIL KOKUSAN ''PU5165''
-
678639031300 CDI UNIT 530 EXC USACDI UNIT 530 EXC USA
-
778030095000 OIL LEVEL GLASS 30X8OIL LEVEL GLASS 30X8
-
861030019050 CIRCLIP OIL LEVEL GLASSCIRCLIP OIL LEVEL GLASS
-
978039090000 SPARK PLUG CONNECT. AP-TRS1908SPARK PLUG CONNECT. AP-TRS1908
-
1075039093000 SPARK PLUG M12X1,25 LKAR8AI-9SPARK PLUG M12X1,25 LKAR8AI-9
-
110025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
120402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
130019040106S FLAT HEAD SCREW ISA25 M4X10FLAT HEAD SCREW ISA25 M4X10
-
1478030002010 WIRING RETAINING BRACKETWIRING RETAINING BRACKET
-
1578039032000 WIRING HARNESS F. CDI-BOXWIRING HARNESS F. CDI-BOX
-
1659039006000 IGNITIONCOIL KOKUSAN 4K3-A/BIGNITIONCOIL KOKUSAN 4K3-A/B
-
2078039005000 FLYWHEELFLYWHEEL
-
2180039004000 STATOR HUSABERG FS/FESTATOR HUSABERG FS/FE
-
220137120000 SPRING WASHER DIN0137-B12SPRING WASHER DIN0137-B12
-
2349030021000 COLLAR NUT M12X1 R/SCOLLAR NUT M12X1 R/S
-
250888030050 WOODRUFF KEY DIN6888-3X5X13WOODRUFF KEY DIN6888-3X5X13
-
350023060123 COLLAR SCREW M6X12COLLAR SCREW M6X12
-
360025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
370025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
500025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
510025060406 HH COLLAR SCREW M6X40HH COLLAR SCREW M6X40
